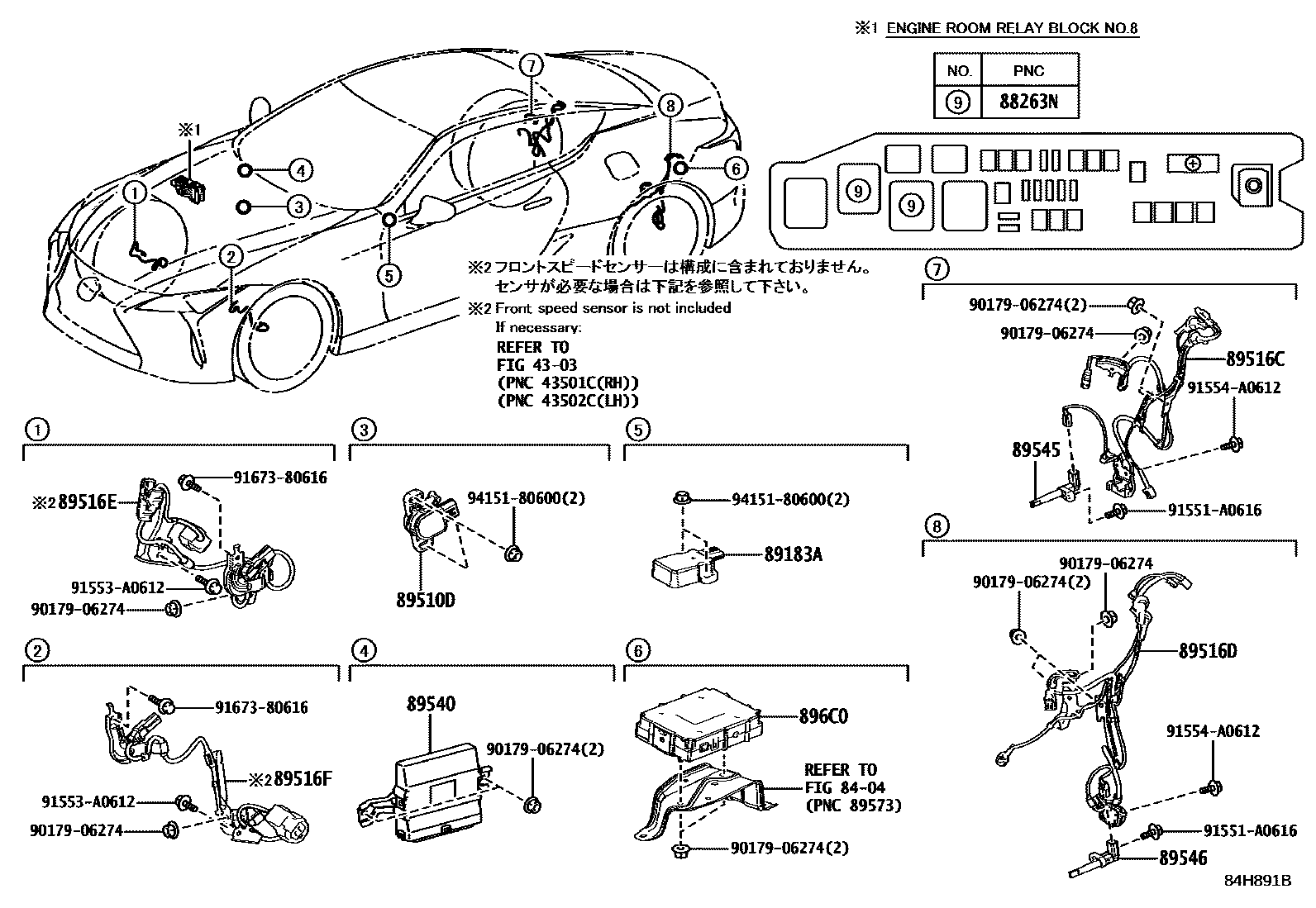

ABS & VSC

0001 1 0002 1

4303

8404

88263NRELAY, ABS MOTOR

main88263-21010iGWZ100,URZ100¥2,740201705

89183ASENSOR, YAWRATE

main89183-48020iGWZ100,URZ100¥75,300201906

main89183-50030iGWZ100,URZ100¥99,500201705-201906

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iGWZ100,URZ100..LHD¥7,900201705

main89510-33030iGWZ100,URZ100..RHD¥7,900201705

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-11030iGWZ100,URZ100¥6,500201705

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-11040iGWZ100,URZ100¥5,700201705

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-11010iGWZ100,URZ100¥4,640201705

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-11020iGWZ100,URZ100¥3,210201705

89540COMPUTER ASSY, SKID CONTROL

main895B0-11020iURZ100..LHD201705-201809

main895B0-11021iURZ100..LHD201809-202004

main895B0-11050iURZ100..RHD¥193,000201705-201809

main895B0-11051iURZ100..RHD¥193,000201809-202004

main895B0-11080iGWZ100..LHD201705-201809

main895B0-11081iGWZ100..LHD201809-202004

main895B0-11110iGWZ100..RHD¥193,000201705-201809

main895B0-11111iGWZ100..RHD¥193,000201809-202004

main895B0-11340iURZ100..LHD202004-202111

main895B0-11341iURZ100..LHD202111

main895B0-11360iURZ100..RHD¥160,000202004-202111

main895B0-11361iURZ100..RHD202111

main895B0-11430iGWZ100..LHD202004-202111

main895B0-11431iGWZ100..LHD202111

main895B0-11450iGWZ100..RHD¥160,000202004-202111

main895B0-11451iGWZ100..RHD202111

89545SENSOR, SPEED, REAR RH

main89545-30090iGWZ100,URZ100¥9,500201705

89546SENSOR, SPEED, REAR LH

main89546-30090iGWZ100,URZ100¥9,500201705

896C0SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET

main896C0-11010iGWZ100,URZ100¥34,300201705

9017906274

main90179-06274¥70

91551A0616

main91551-A0616¥60

91553A0612

main91553-A0612¥60

91554A0612

main91554-A0612¥60

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

19 parts on this diagram · 2 diagrams in section
