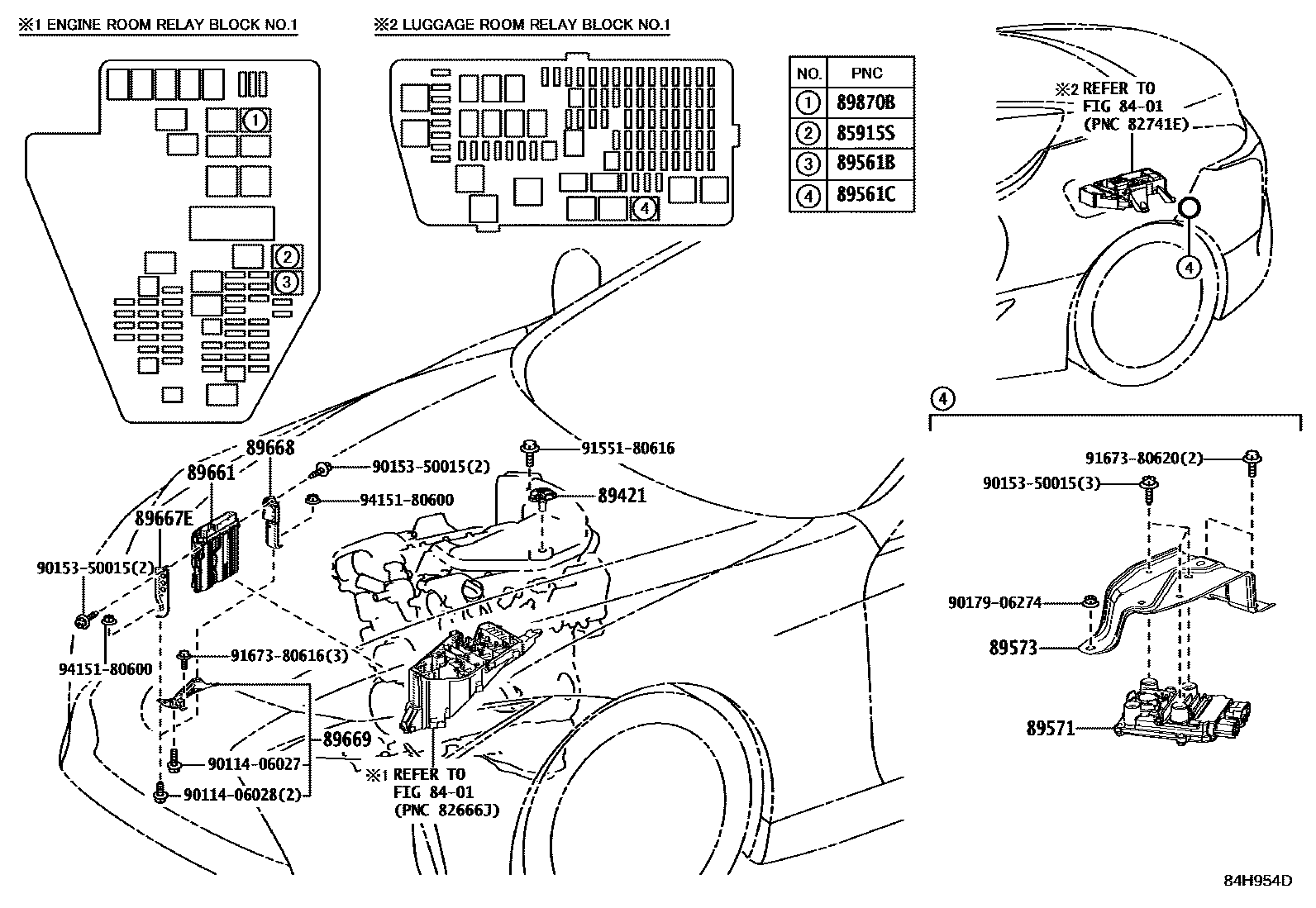

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGWZ100,URZ100201705

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iGWZ100201705

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90987-02027iGWZ100,URZ100201705

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90987-02027iGWZ100,URZ100201705

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iGWZ100,URZ100201705

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-11010iGWZ100,URZ100201705

89661COMPUTER, ENGINE CONTROL

main89661-11030iGWZ100201809-202001

DENSO

sub89661-11031

main89661-11031iGWZ100202002-202004

DENSO

main89661-11080iURZ100201705-201809

main89661-11130iGWZ100201705-201809

main89661-11190iURZ100201809-201906

DENSO

main89661-11450iURZ100201906-202004

DENSO

main89661-11520iURZ100202004-202210

DENSO

main89661-11580iGWZ100202004

DENSO

main89661-11630iURZ100202210

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11010iURZ100..LHD201705

main89667-11020iURZ100..RHD201705

main89667-11030iGWZ100201705

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11010iURZ100..LHD201705

main89668-11020iURZ100..RHD201705

main89668-11030iGWZ100201705

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11010iURZ100..LHD201705

main89669-11020iURZ100..RHD201705

main89669-11030iGWZ100201705

89870BRELAY, ELECTRONIC DRIVER UNIT

main90987-02027iGWZ100201705

9011406027

main90114-06027

9011406028

main90114-06028

9015350015

main90153-50015

9017906274

main90179-06274

9155180616

main91551-80616

9167380616

main91673-80616

9167380620

main91673-80620

9415180600

main94151-80600

19 parts on this diagram · 3 diagrams in section
