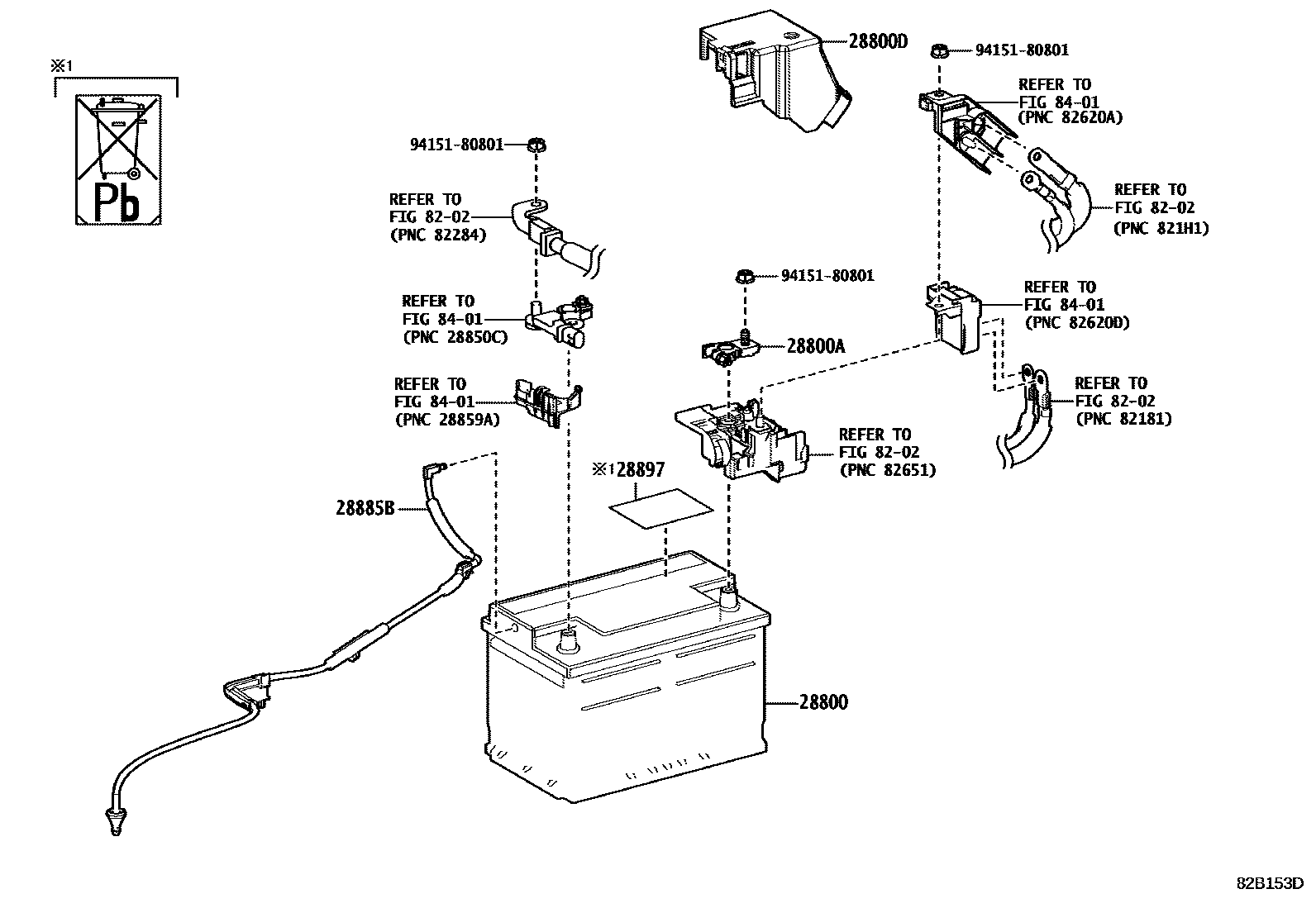

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1 0003 1SUB-BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY

28800BATTERY

main28800-31450i8GRFXS..GWZ100201705-202207

LN3

sub28800-31451

main28800-31451i8GRFXS..GWZ100202208-202302

LN3

sub28800-31452

main28800-31452i8GRFXS..GWZ100202303

LN3

sub28800-31453

main28800-38190i2URGSE..URZ100201705-202207

LN4

sub28800-38191

main28800-38191i2URGSE..URZ100202208-202302

LN4

sub28800-38192

main28800-38192i2URGSE..URZ100202303

LN4

sub28800-38193

28800ATERMINAL, BATTERY POSITIVE

main90982-05062i8GRFXS,2URGSE..GWZ100,URZ100201705

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50730i8GRFXS,2URGSE..GWZ100,URZ100201705

28885BHOSE, BATTERY

main28885-38020i8GRFXS,2URGSE..GWZ100,URZ100201705

28897PLATE, BATTERY CAUTION

main28898-46020i8GRFXS,2URGSE..GWZ100,URZ100201705

8202

8401

9415180801

main94151-80801

8 parts on this diagram · 6 diagrams in section
