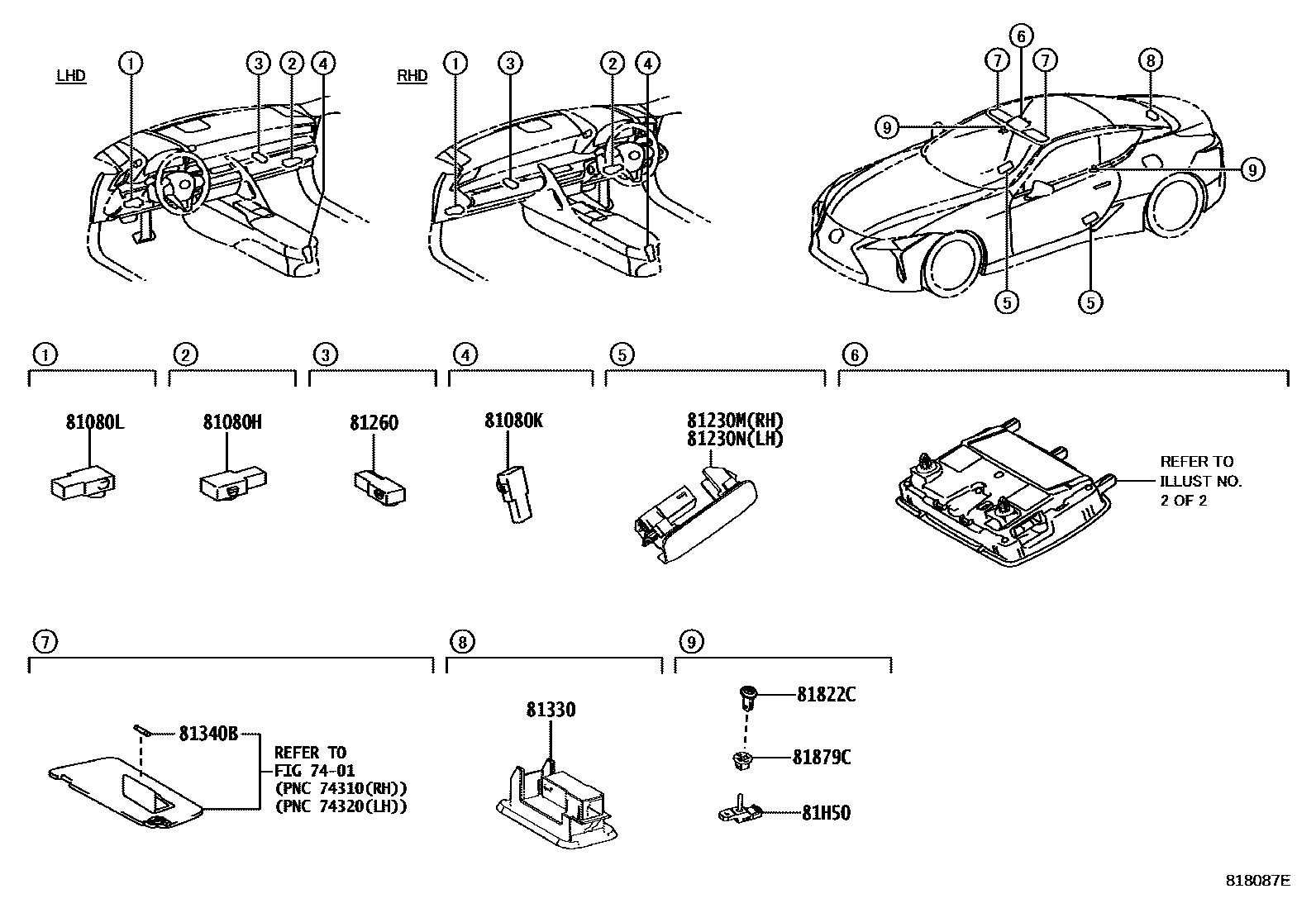

INTERIOR LAMP
7401
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230MLAMP ASSY, COURTESY, RH
81230NLAMP ASSY, COURTESY, LH
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340BBULB (FOR VANITY LAMP)
12V 2W
81822CCOVER, INDICATOR LAMP
81879CBRACKET, INDICATOR LAMP
81H50LAMP ASSY, INDICATOR
12 parts on this diagram · 2 diagrams in section
