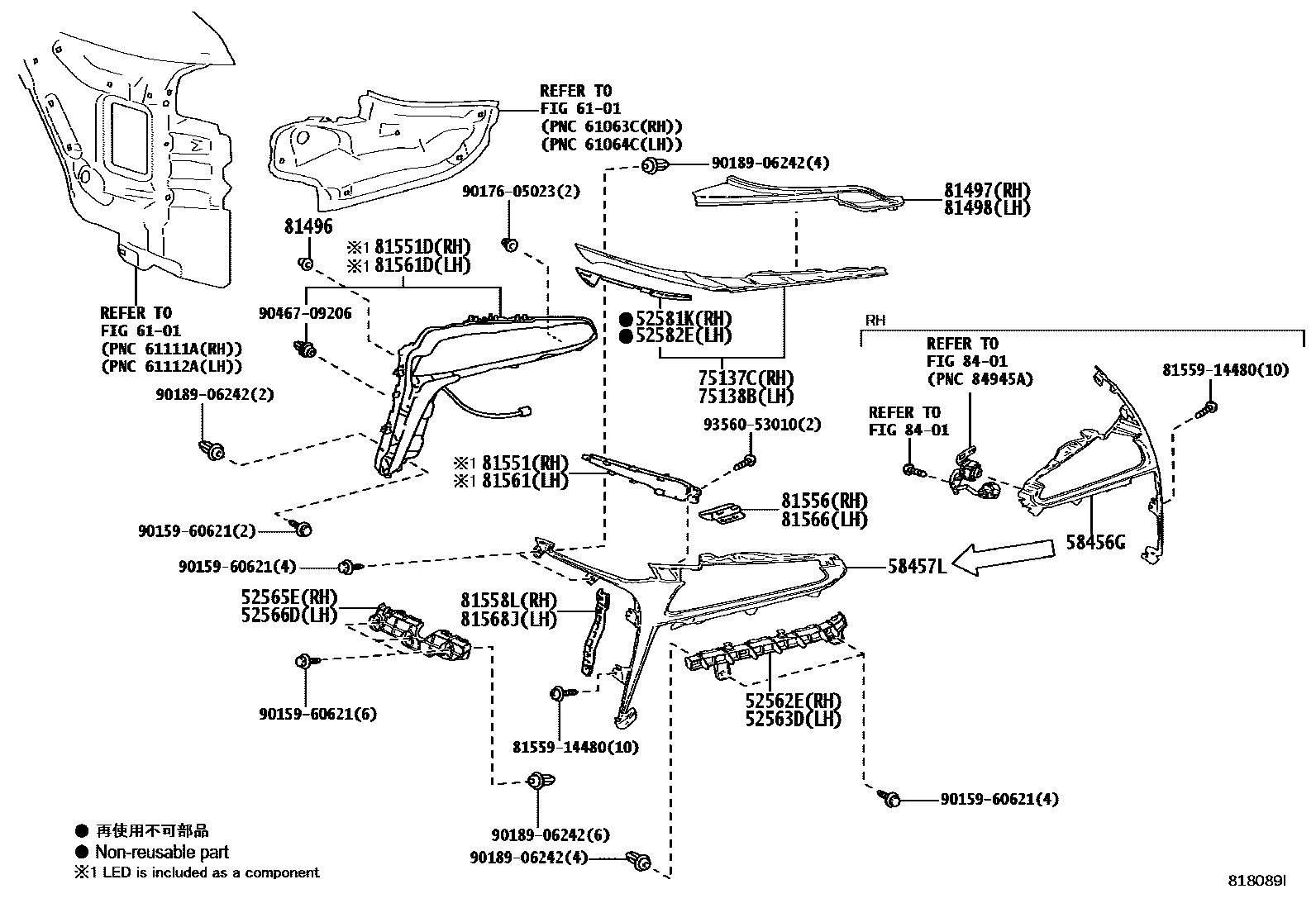

REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
52565ERETAINER, REAR BUMPER, LOWER RH
52566DRETAINER, REAR BUMPER, LOWER LH
52581KPROTECTOR, REAR BUMPER, RH
52582EPROTECTOR, REAR BUMPER, LH
58456GBRACKET, REAR GARNISH, NO.1 RH
58457LBRACKET, REAR GARNISH, NO.1 LH
6101
75137CCOVER, COMBINATION REAR LAMP, RH
75138BCOVER, COMBINATION REAR LAMP, LH
81496GUIDE, REAR COMBINATION LAMP
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81551LENS, REAR COMBINATION LAMP, RH
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81556RIM, REAR COMBINATION LAMP, RH
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81561LENS, REAR COMBINATION LAMP, LH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81566RIM, REAR COMBINATION LAMP, LH
81568JPROTECTOR, REAR COMBINATION LAMP, LH
8401
8155914480MOULDING, REAR COMBINATION LAMP, RH
9015960621
9017605023
9018906242
9046709206
9356053010
29 parts on this diagram · 1 diagram in section
