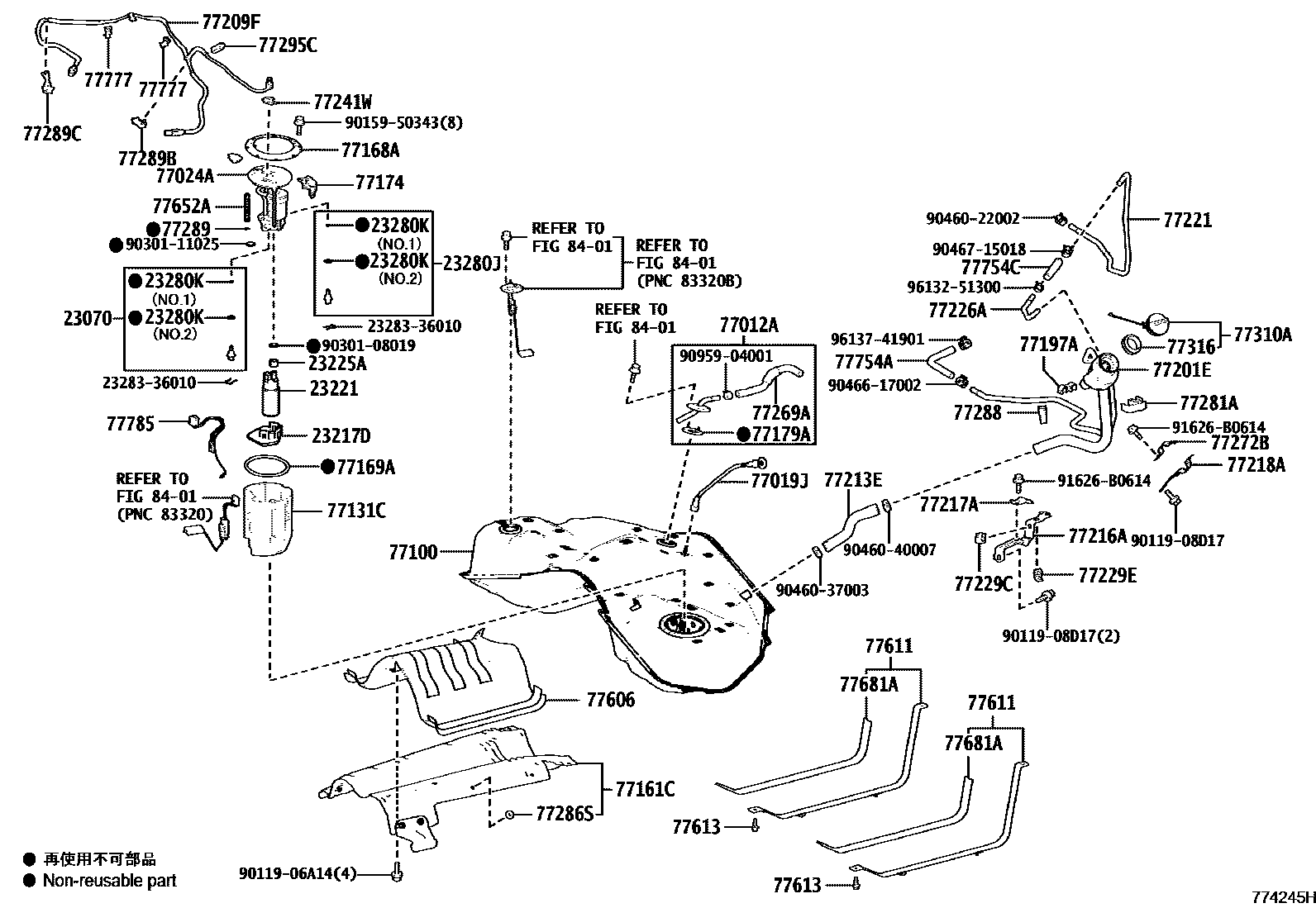

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL TUBE 0004 1CHARCOAL CANISTER 0005 1FUEL LID OPNER

23070VALVE ASSY, FUEL MAIN

main23070-31030i8GRFXS,2URGSE..GWZ100,URZ100201705

23217DFILTER, FUEL PUMP

main23217-31080i8GRFXS,2URGSE..GWZ100,URZ100201705

23221PUMP, FUEL

main23221-31130i8GRFXS,2URGSE..GWZ100,URZ100201705

23225ASPACER, FUEL PUMP

main23225-31010i8GRFXS,2URGSE..GWZ100,URZ100201705

23280JREGULATOR ASSY, FUEL PRESSURE

main23070-36010i8GRFXS..GWZ100201705

main23280-38020i2URGSE..URZ100201705

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i8GRFXS,2URGSE..GWZ100,URZ100201705

NO.1

main90301-15024i8GRFXS,2URGSE..GWZ100,URZ100201705

NO.2

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-11040iGWZ100,URZ100201705-201809

main77012-11050iGWZ100,URZ100201809

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-11010iGWZ100,URZ100201809

main77019-50030iGWZ100,URZ100201705-201809

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-11010iURZ100201705

main77024-11020iGWZ100201705

77100TANK ASSY, FUEL

main77001-11110iGWZ100201705

main77001-11130iURZ100201705-202302

sub77001-11110

77131CSUB-TANK, FUEL, NO.1

main77131-11010iGWZ100,URZ100201705

77161CPROTECTOR, FUEL TANK, LOWER

main77607-11010iGWZ100,URZ100201705

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iGWZ100,URZ100201705

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iGWZ100,URZ100201705-201809

main77169-53010iGWZ100,URZ100201809

77174SUPPORT, FUEL SUCTION, NO.1

main77174-48040iGWZ100,URZ100201705

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iGWZ100,URZ100201705

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-52010iGWZ100,URZ100201705

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-11110iGWZ100,URZ100201705

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-11040iURZ100201705-201809

main77209-11050iGWZ100201705-201809

main77209-11060iURZ100201809

main77209-11070iGWZ100201809

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-11070iGWZ100,URZ100201705-201809

main77213-11090iGWZ100,URZ100201809

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-11020iGWZ100,URZ100201705

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-11060iGWZ100,URZ100201705

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-11030iGWZ100,URZ100201705

77221TUBE, FUEL TANK BREATHER, NO.1

main77227-11020iGWZ100,URZ100201705

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-11040iGWZ100,URZ100201705

77229CCLAMP, BREATHER TUBE

main77229-11080iGWZ100,URZ100201705

77229ECLAMP, BREATHER TUBE

main77229-11110iGWZ100,URZ100201705

77241WCLIP, TUBE JOINT

main77241-33011iGWZ100,URZ100201705

77269AHOSE, FUEL TANK BREATHER

main77269-11010iGWZ100,URZ100201705-201809

main77269-11020iGWZ100,URZ100201809

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-11040iGWZ100,URZ100201705

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-11040iGWZ100,URZ100..RHD201705

main77281-11050iGWZ100..LHD201705

main77281-11080iURZ100..LHD201705

77281ACLAMP, FUEL FILLER PIPE

main77229-11120iGWZ100,URZ100201705

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iGWZ100,URZ100201705

77288CLAMP, BREATHER HOSE

main77229-50080iGWZ100,URZ100201705

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGWZ100,URZ100201705

77289BCLAMP, FUEL TUBE, NO.3

main77289-11030iGWZ100,URZ100201705

77289CCLAMP, FUEL TUBE, NO.4

main77289-11040iGWZ100,URZ100201705

77295CGROMMET, FUEL TUBE

main77295-11010iGWZ100,URZ100201803

main77295-35260iGWZ100,URZ100201705-201802

77310ACAP ASSY, FUEL TANK

main77300-12020iGWZ100,URZ100201705-201809

main77300-48020iGWZ100,URZ100201809

77316GASKET, FUEL TANK CAP

main77316-52040iGWZ100,URZ100201705-201809

main77316-75020iGWZ100,URZ100201809

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-11020iGWZ100,URZ100201705

77611BAND, FUEL TANK

main77601-11040iGWZ100,URZ100201705

77613BOLT, FUEL TANK BAND SET

main90119-10A05iGWZ100,URZ100201705

77652ACUSHION, FUEL TANK, NO.2

main77652-22090iGWZ100,URZ100201705

77681ASEAT, FUEL TANK BAND

main77681-21020iGWZ100,URZ100201705

77754AHOSE, CHARCOAL CANISTER OUTLET, NO.2

main77754-11060iGWZ100,URZ100201705

77754CHOSE, FUEL TANK BREATHER

main77754-11050iGWZ100,URZ100201705

77777BRACKET, FUEL TUBE CLAMP

main77778-50020iGWZ100,URZ100201705

77785HARNESS, FUEL PUMP

main77785-30050iGWZ100,URZ100201705

8401

2328336010VALVE, VACUUM TRANSMITTING, NO.3

main23283-36010

9011906A14

main90119-06A14

9011908D17

main90119-08D17

9015950343

main90159-50343

9030108019

main90301-08019

9030111025

main90301-11025

9046022002

main90460-22002

9046037003

main90460-37003

9046040007

main90460-40007

9046617002

main90466-17002

9046715018

main90467-15018

9095904001

main90959-04001

91626B0614

main91626-B0614

9613251300

main96132-51300

9613741901

main96137-41901

65 parts on this diagram · 5 diagrams in section
