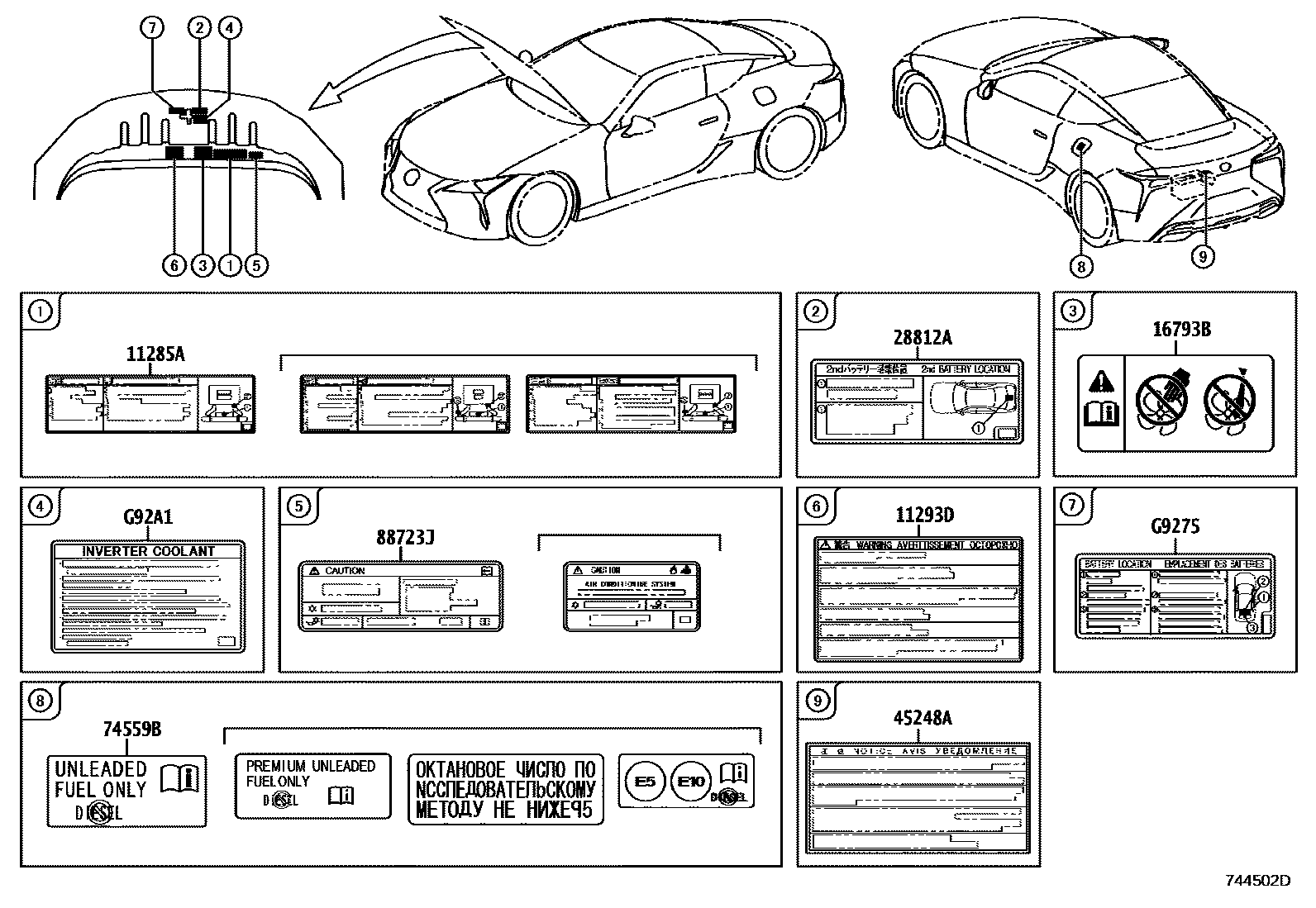

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-31080i8GRFXS..GWZ100201705

main11285-70020i2URGSE..URZ100201705

11293DLABEL, ENGINE CAUTION

main11293-36070i8GRFXS..GWZ100201705

16793BLABEL, COOLING FAN INFORMATION

main16793-36030i8GRFXS,2URGSE..GWZ100,URZ100201705

28812ALABEL, SUB-BATTERY INFORMATION

main28812-38010i8GRFXS,2URGSE..GWZ100,URZ100201705

45248ALABEL, STEERING ACTUATOR CAUTION

74559BLABEL, FUEL INFORMATION

main74559-11030iGWZ100,URZ100201705

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88723-11070iGWZ100201705

main88723-48180iURZ100201705

G9275LABEL, BATTERY CAUTION, NO.1

mainG927511020iGWZ100201705

RUSSIA SPEC&HIGH VOLTAGE BATTERY-WITH

mainG927511020iGWZ100201705

HIGH VOLTAGE BATTERY-WITH

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A111010iGWZ100201705-202008

9 parts on this diagram · 2 diagrams in section
