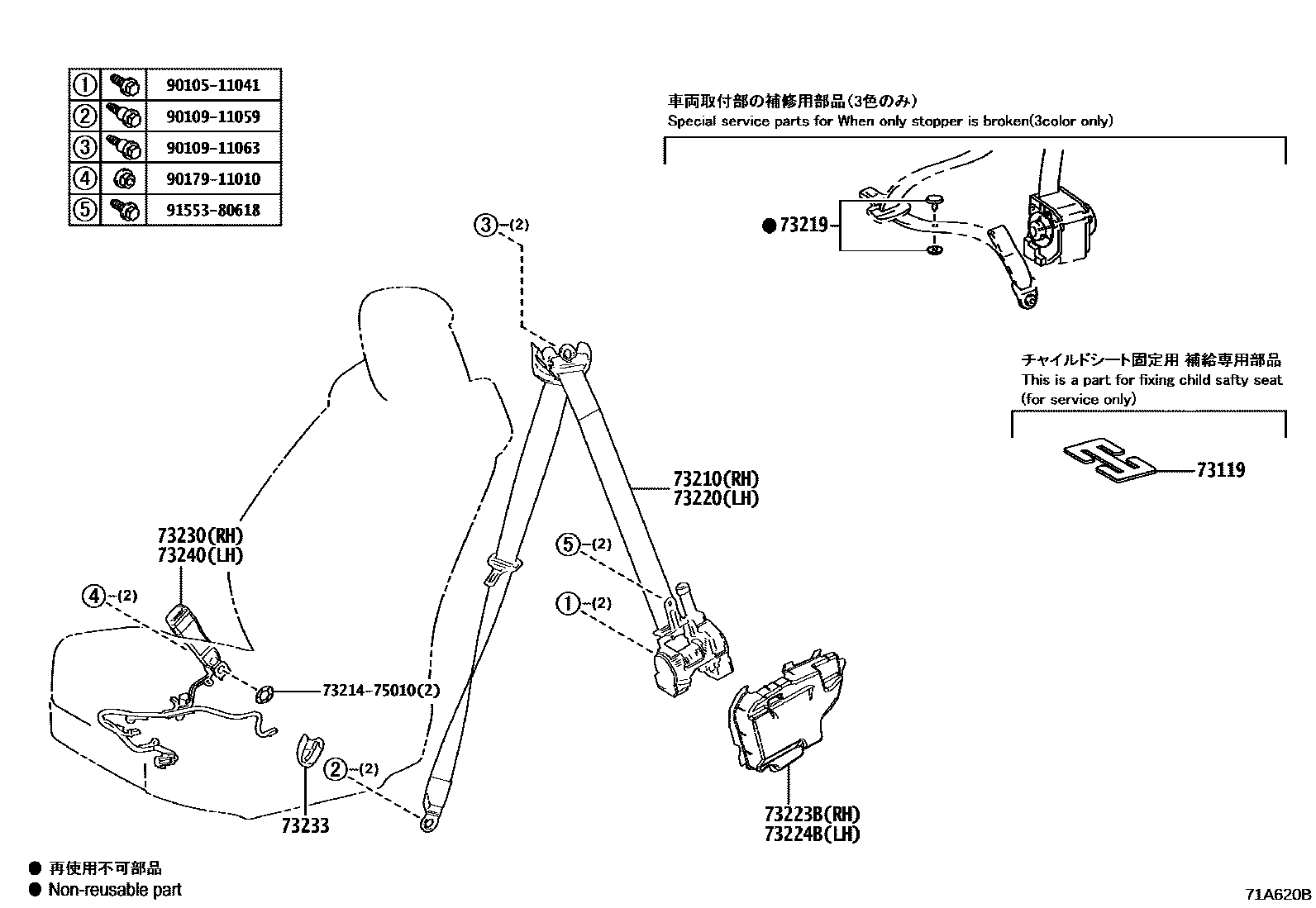

SEAT BELT & CHILD RESTRAINT SEAT
73119PLATE, SEAT BELT WEBBING CLIP
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM20,3#,42
DK. ROSE,TRIM23
OCHRE,TRIM40
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM20,3#,42
BLACK/DK.ROSE,TRIM23
BLACK/OCHER,TRIM40
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#,3#,4#,8#
BLACK,TRIM2#,3#,4#,8#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,3#,4#,8#
BLACK,TRIM2#,3#,4#,8#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010511041
main90105-11041
9010911059
main90109-11059
9010911063
main90109-11063
9017911010
main90179-11010
9155380618
main91553-80618
15 parts on this diagram · 2 diagrams in section
