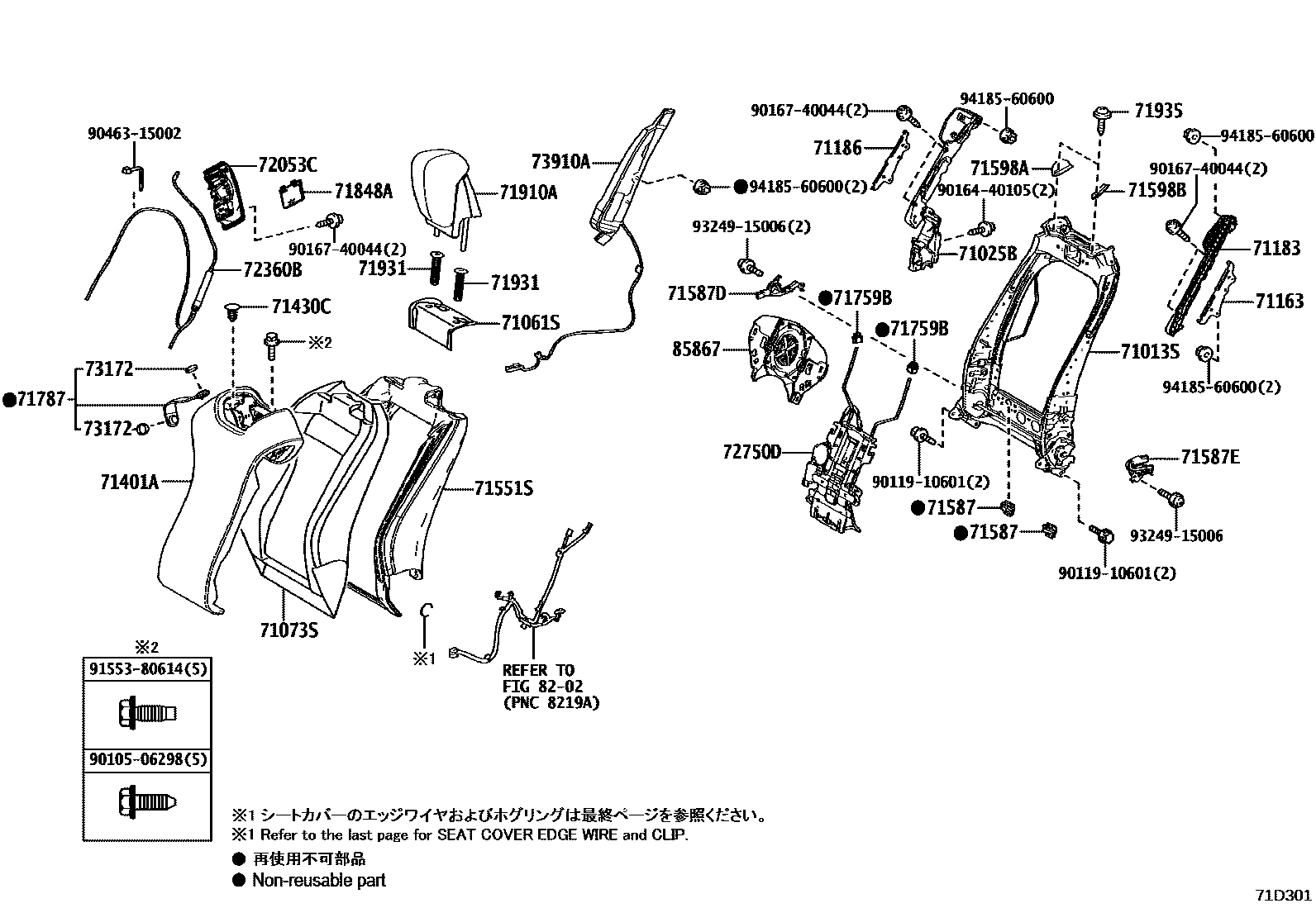

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
71025BSUPPORT SUB-ASSY, FRONT SEATBACK, RH
71061SCOVER SUB-ASSY, FRONT SEATBACK, UPPER RH
BLACK,TRIM2#,3#
OCHRE,TRIM40
OCHRE,TRIM4#
KUROKOHAKU,TRIM41
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
DK.ROSE,TRIM3#
DK.ROSE,TRIM3#
OCHRE,TRIM4#
OCHER,TRIM4#
71163BRACKET, FRONT SEATBACK SUPPORT, RH
71183SUPPORT, FRONT SEATBACK, RH
71186BRACKET, FRONT SEAT SIDE SUPPORT, RH
71401ABACK SUB-ASSY, FRONT SEAT, RH
BLACK,TRIM2#
DK.ROSE,TRIM3#
LT.OCHRE,TRIM4#
71430CCLIP
BLACK
BLACK
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71587DPROTECTOR, FRONT SEATBACK EDGE, OUTER(FOR RH SEAT)
71587EPROTECTOR, FRONT SEATBACK EDGE, INNER(FOR RH SEAT)
71598APLATE, SEAT COVER, RH
71598BPLATE, SEAT COVER, LH
71759BHOOK, FRONT SEATBACK
71787BAND, FRONT SEATBACK POCKET
BLACK,TRIM2#
DK.ROSE,TRIM3#
LT.OCHRE,TRIM4#
71848ACAP, SEAT ADJUSTER COVER, RH
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#,31,42
BLACK,TRIM2#,31,42
BLACK,TRIM2#,3#,42
DK.ROSE,TRIM30
LT.OCHRE,TRIM40
DK.SADDLE TAN,TRIM41
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),BLACK,TRIM2#,3#,4#,8#
W/O(LOCK),BLACK,TRIM2#,3#,4#,8#
71935CLIP
72053CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH
BLACK,TRIM2#,3#,42
BLACK,TRIM2#,31,42
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM20,21,23,31,42
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#,31,42
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM30
DK.ROSE,TRIM30
LT.OCHRE,TRIM40
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM40
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.SADDLE TAN,TRIM41
DK.SADDLE TAN,TRIM41
STRUCTURALBLUE*(A)OR PATINA ELEGANCE*(C)&SEAT COVER MATERIAL-L-ANILINE(FRONT SEAT),DK.SADDLE TAN,TRIM4#
72360BCABLE ASSY, RECLINING ADJUSTER EQUALIZING RH
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
73172CAP, FRONT SHOULDER BELT HANGER
73910AAIRBAG ASSY, FRONT SEAT, RH
8202
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
9010506298
9011910601
9016440105
9016740044
9046315002
9155380614
9324915006
9418560600
36 parts on this diagram · 13 diagrams in section
