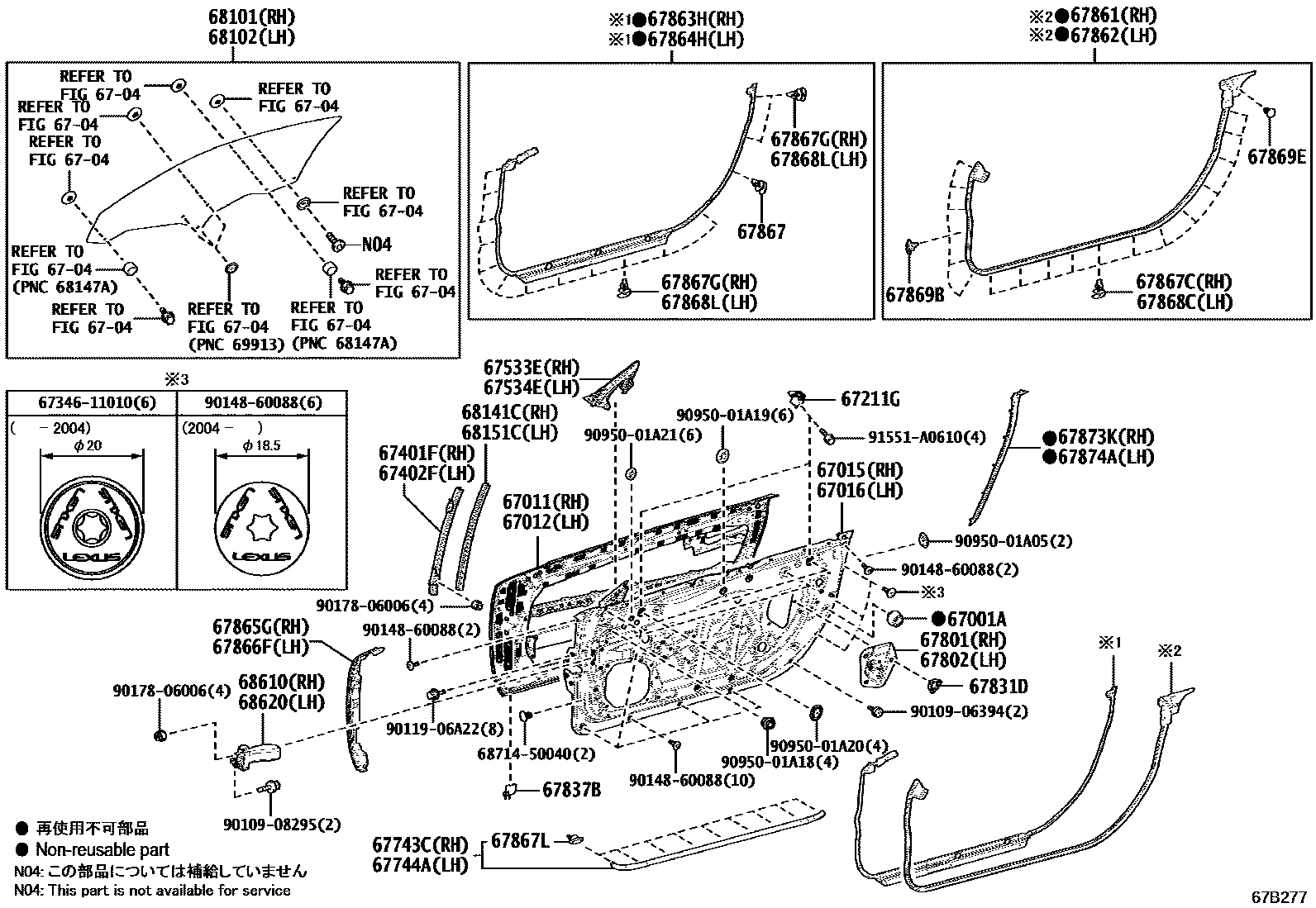

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM DRIVER SIDE 0003 1DOOR TRIM PASSENGER SIDE 0004 1DOOR TRIM DRIVER SIDE 0005 1DOOR TRIM PASSENGER SIDE

67001ACUSHION, FRONT DOOR PANEL

main90541-09150×2iGWZ100,URZ100201705

67011PANEL SUB-ASSY, FRONT DOOR, OUTSIDE RH

main67011-11010iGWZ100,URZ100201705

67012PANEL SUB-ASSY, FRONT DOOR, OUTSIDE LH

main67012-11010iGWZ100,URZ100201705

67015PANEL SUB-ASSY, FRONT DOOR, INSIDE RH

main67015-11020iGWZ100,URZ100201705

67016PANEL SUB-ASSY, FRONT DOOR, INSIDE LH

main67016-11020iGWZ100,URZ100201705

6704

67211GSTOP, FRONT DOOR WINDOW, UPPER

main67211-11020×4iGWZ100,URZ100201705

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-11010iGWZ100,URZ100201705

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-11010iGWZ100,URZ100201705

67533ESEAL, FRONT DOOR DIVISION BAR, RH

main67533-11010iGWZ100,URZ100201705

67534ESEAL, FRONT DOOR DIVISION BAR, LH

main67534-11010iGWZ100,URZ100201705

67743CSEAL, FRONT DOOR TRIM

main67743-11010iGWZ100,URZ100201705

67744ASEAL, FRONT DOOR TRIM, LH

main67744-11020iGWZ100,URZ100201705

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67801-11010iGWZ100,URZ100201705

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67802-11010iGWZ100,URZ100201705

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-11020×6iGWZ100,URZ100201705

67837BSEAL, FRONT DOOR DUST PROOF

main67837-04010×2iGWZ100,URZ100201705

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-11010iGWZ100,URZ100201705-201710

main67861-11011iGWZ100,URZ100201711-202003

main67861-11020iGWZ100,URZ100202004

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-11010iGWZ100,URZ100201705-201710

main67862-11011iGWZ100,URZ100201711-202003

main67862-11020iGWZ100,URZ100202004

67863HWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-11010iGWZ100,URZ100201705

67864HWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-11010iGWZ100,URZ100201705

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-11010iGWZ100,URZ100201705

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-11010iGWZ100,URZ100201705

67867CLIP, DOOR WEATHERSTRIP

main90467-04034×2iGWZ100,URZ100201705

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-50050×12iGWZ100,URZ100201705

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52040×14iGWZ100,URZ100201705

67867LRETAINER, FRONT DOOR TRIM SEAL

main67867-50050×18iGWZ100,URZ100201705

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-50050×12iGWZ100,URZ100201705

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52030×14iGWZ100,URZ100201705

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-11010×12iGWZ100,URZ100201705

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-05162-C0×2iGWZ100,URZ100201705

BLACK

67873KWEATHERSTRIP, ACCESS PANEL, REAR RH

main67873-11010iGWZ100,URZ100201705

67874AWEATHERSTRIP, ACCESS PANEL, REAR LH

main67874-11010iGWZ100,URZ100201705

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-11010iGWZ100,URZ100201705

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-11010iGWZ100,URZ100201705

68141CRUN, FRONT DOOR GLASS, RH

main68141-11010iGWZ100,URZ100201705

68151CRUN, FRONT DOOR GLASS, LH

main68141-11010iGWZ100,URZ100201705

68610CHECK ASSY, FRONT DOOR

main68610-11010iGWZ100,URZ100201705

68620CHECK ASSY, FRONT DOOR, LH

main68620-11010iGWZ100,URZ100201705

6734611010

main67346-11010

6871450040

main68714-50040

9010906394

main90109-06394

9010908295

main90109-08295

9011906A22

main90119-06A22

9014860088

main90148-60088

9017806006

main90178-06006

9095001A05

main90950-01A05

9095001A18

main90950-01A18

9095001A19

main90950-01A19

9095001A20

main90950-01A20

9095001A21

main90950-01A21

91551A0610

main91551-A0610

52 parts on this diagram · 5 diagrams in section
