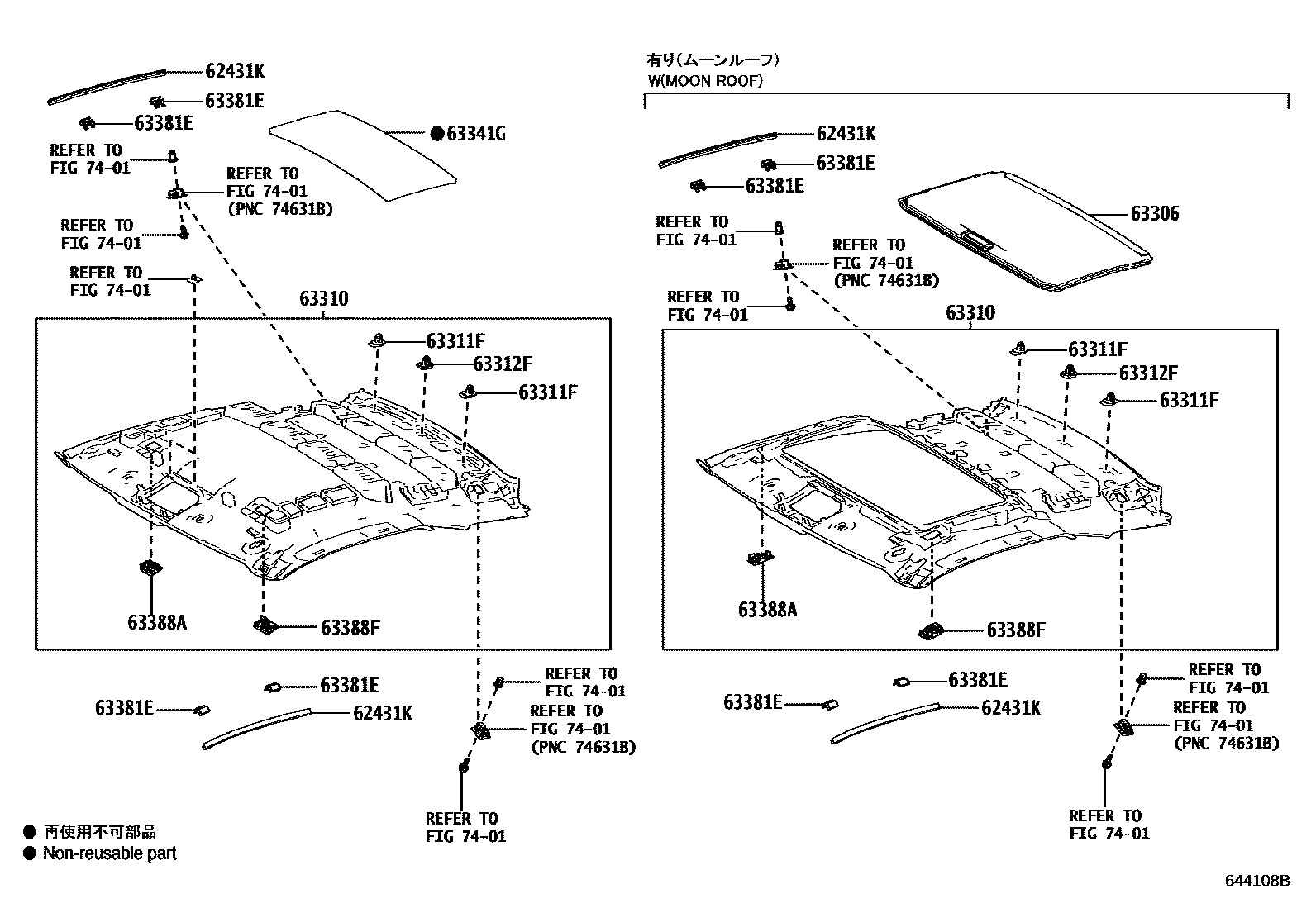

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

62431KGARNISH, ROOF SIDE RAIL

main62431-11010iGWZ100,URZ100¥860201705

63306TRIM SUB-ASSY, SUNSHADE

main63306-11010-C0iGWZ100,URZ100201705

BLACK,TRIM2#,3#

main63306-11010-E0iGWZ100,URZ100201705

OCHRE,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-11010-C6iGWZ100,URZ100201705

BLACK,TRIM2#,3#

main63310-11010-E5iGWZ100,URZ100201705

OCHRE,TRIM4#

63311FCLIP, ROOF HEADLINING, NO.1

main90467-09126iGWZ100,URZ100¥90201705

63312FCLIP, ROOF HEADLINING, NO.2

main90467-10181iGWZ100,URZ100¥70201705

63341GPAD, ROOF SILENCER

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-11010iGWZ100,URZ100¥310201705

63388ACOVER, ROOF HEADLINING HOLDER

main63388-11010-C5iGWZ100,URZ100201705

BLACK,TRIM2#,3#,42

main63388-11010-C5iGWZ100,URZ100201705

ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#,41,42

main63388-11010-E2iGWZ100,URZ100201705

OCHRE,TRIM40

63388FCOVER, ROOF HEADLINING HOLDER, LH

main63388-11020-C4iGWZ100,URZ100201705

BLACK,TRIM2#,3#,42

main63388-11020-C4iGWZ100,URZ100201705

ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#,41,42

main63388-11020-E2iGWZ100,URZ100201705

OCHRE,TRIM40

7401

10 parts on this diagram · 2 diagrams in section
