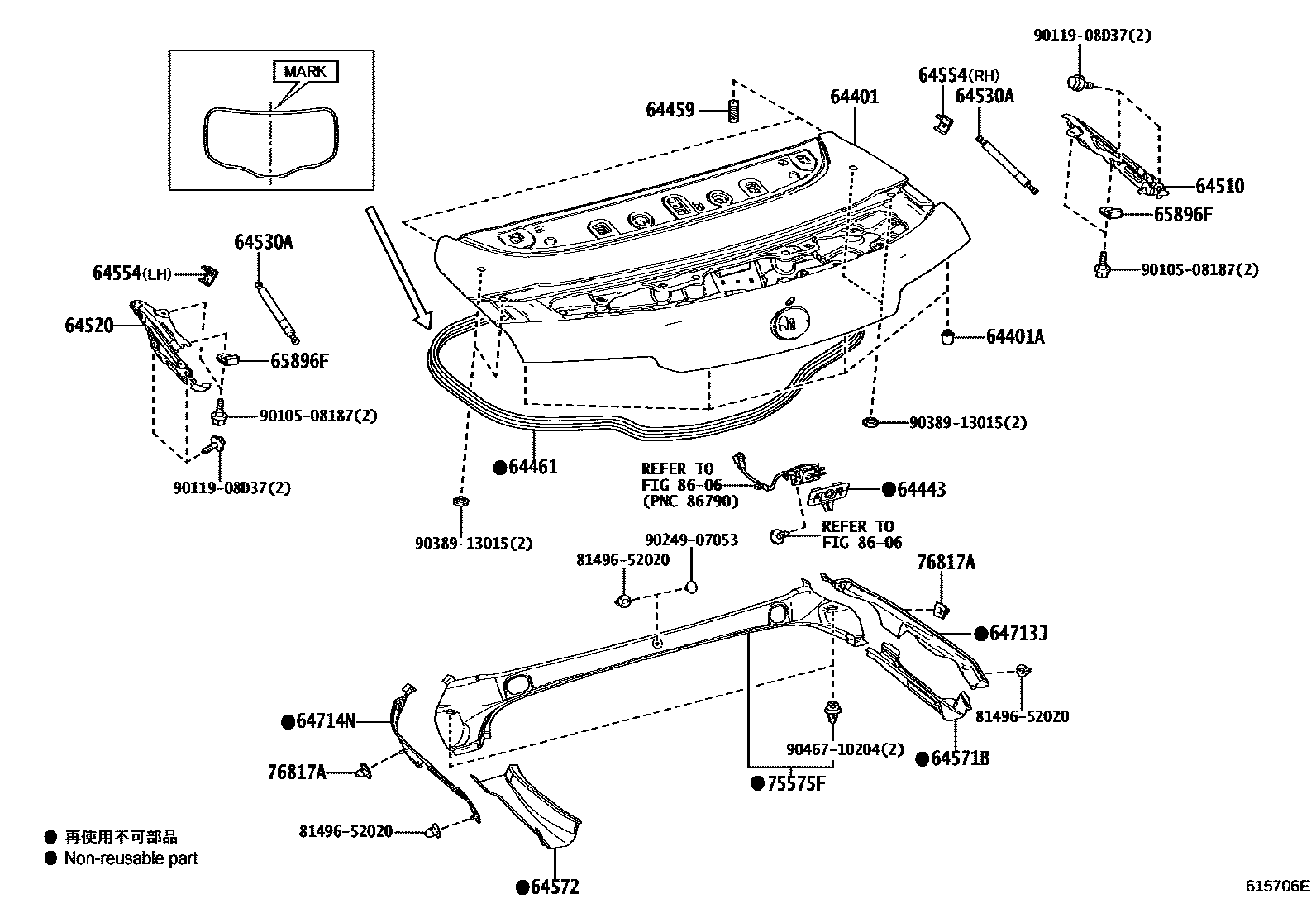

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64443HOUSING, LUGGAGE COMPARTMENT DOOR
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
REAR SPOILER-WITH(FIXED TYPE),SONIC IRIDIUM,1L2
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
"AVIATION"*(D),GARNET RED MC.,3S0
RADIANT RED CONTRAST LAYE,3T5
AMBER CS.,4X2
"AVIATION"*(D),AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
"AVIATION"*(D),STRUCTURAL BLUE,8Y0
STRUCTURAL BLUE,8Y0
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
LIGHT BLUE MARK
ORANGE MARK
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64554STOPPER, LUGGAGE DOOR BALANCER
RH
LH
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH
64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH
65896FCAP, COVER TOP SET BOLT
75575FMOULDING, BACK WINDOW, OUTSIDE LOWER
76817ACLIP, BACK DOOR OUTSIDE GARNISH
8606
8149652020GUIDE, REAR COMBINATION LAMP
main81496-52020
9010508187
main90105-08187
9011908D37
main90119-08D37
9024907053
main90249-07053
9038913015
main90389-13015
9046710204
main90467-10204
23 parts on this diagram · 2 diagrams in section
