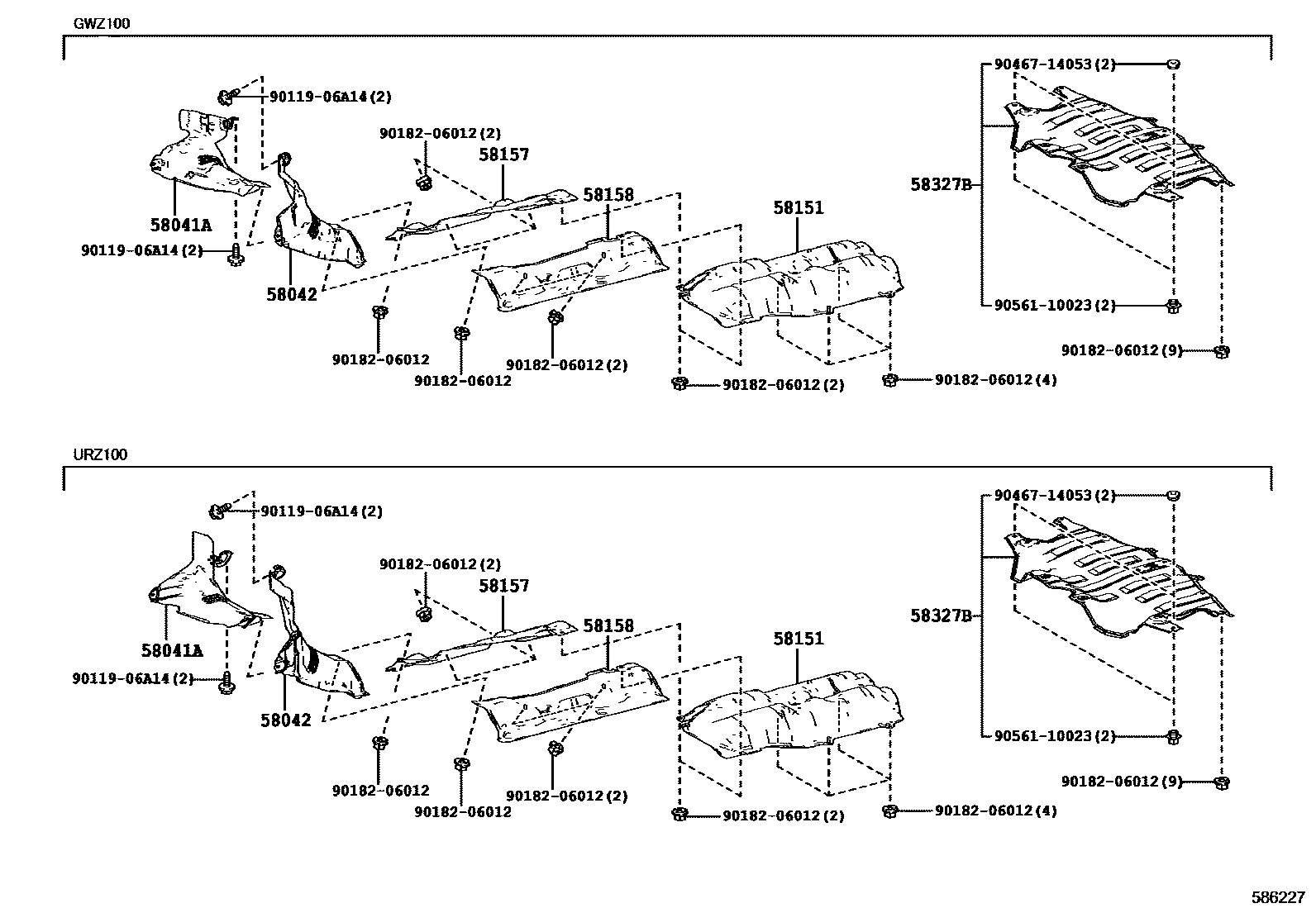

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-11010iGWZ100201705-201811

sub58041-11011

main58041-11011iGWZ100201812

main58041-11020iURZ100201705-201808

sub58041-11021

main58041-11021iURZ100201809

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-11010iGWZ100201705

main58042-11020iURZ100201705-201808

sub58042-11021

main58042-11021iURZ100201809

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-11010iGWZ100,URZ100201705-202303

sub58151-11011

main58151-11011iGWZ100,URZ100202304

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-11010iGWZ100,URZ100201705

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-11010iGWZ100,URZ100201705

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-11010iGWZ100,URZ100201705

9011906A14

main90119-06A14

9018206012

main90182-06012

9046714053

main90467-14053

9056110023

main90561-10023

10 parts on this diagram · 1 diagram in section
