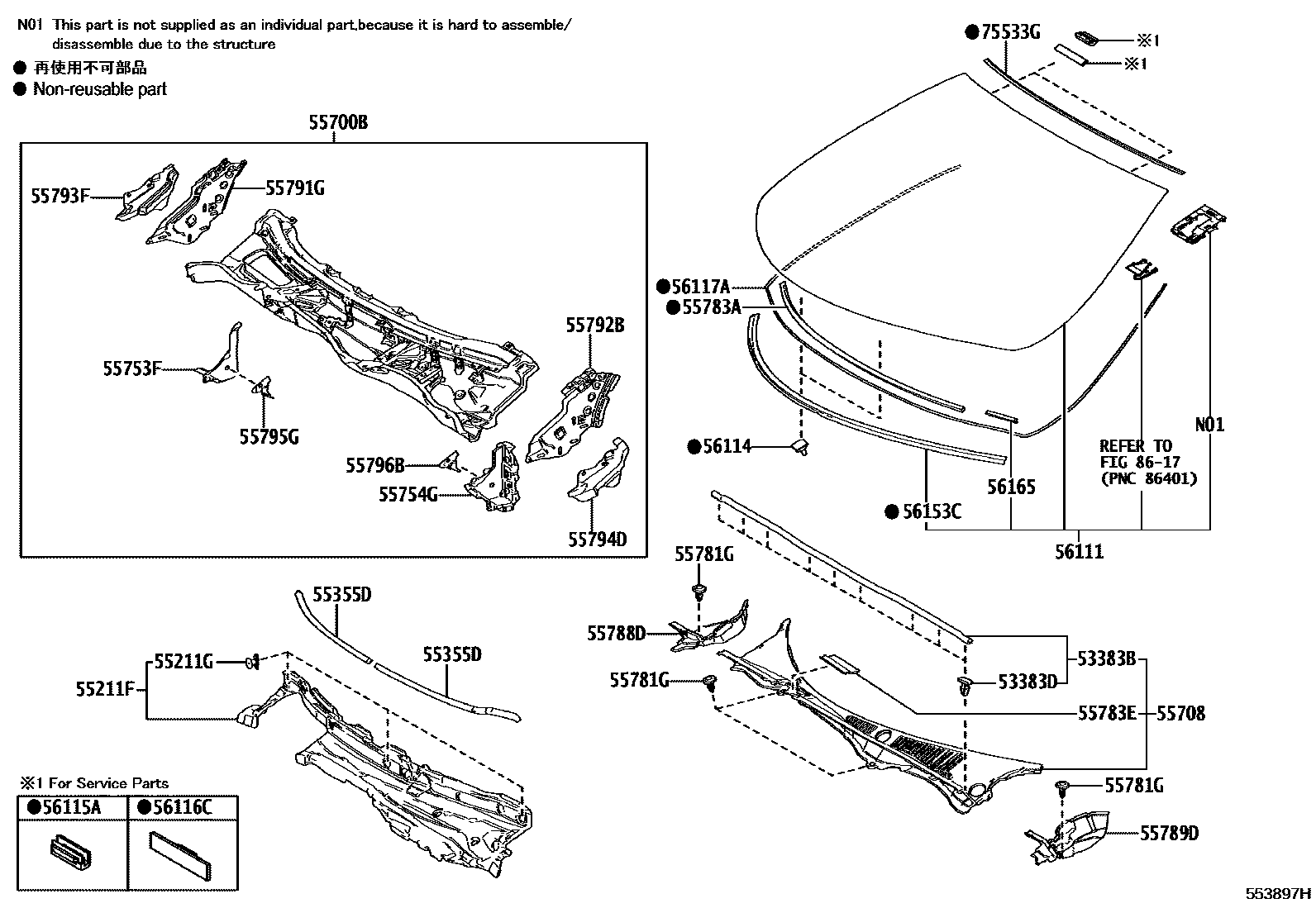

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1 0004 1

53383BSEAL, HOOD TO COWL TOP

main53383-11010iGWZ100,URZ100201705

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×9iGWZ100,URZ100201705

55211FCOVER, DASH PANEL INSULATOR

main55211-11030iGWZ100,URZ100..LHD201705

main55211-11040iGWZ100,URZ100..RHD201705

55211GCLIP, DASH PANEL INSULATOR COVER

main90467-11122×3iGWZ100,URZ100201705

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-11040×2iGWZ100,URZ100201705

55700BCOWL ASSY

main55700-11010iGWZ100,URZ100..LHD201705-201903

main55700-11011iGWZ100,URZ100..LHD201904

main55700-11020iGWZ100,URZ100..RHD201705-201904

main55700-11021iGWZ100,URZ100..RHD201905

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-11020supersedes 55708-11011iGWZ100,URZ100..RHD201705-201903

COLD AREA SPEC

main55708-11021supersedes 55708-11011iGWZ100,URZ100..RHD201904

COLD AREA SPEC

main55708-11040supersedes 55708-11031iGWZ100,URZ100..LHD201705-201903

COLD AREA SPEC

main55708-11041supersedes 55708-11031iGWZ100,URZ100..LHD201904

COLD AREA SPEC

55753FBRACKET, INSTRUMENT PANEL TO COWL, NO.1

main55753-11010iGWZ100,URZ100201705

55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2

main55754-11010iGWZ100,URZ100201705

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×4iGWZ100,URZ100201705

55783APAD, COWL TOP SILENCER

main55783-11010iGWZ100,URZ100201705

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-11020iGWZ100,URZ100..RHD201705

main55783-11030iGWZ100,URZ100..LHD201705

55788DINSULATOR, COWL TOP PANEL, NO.2

main55788-11010iGWZ100,URZ100..RHD201705

main55788-11020iGWZ100,URZ100..LHD201705

55789DINSULATOR, COWL TOP PANEL, NO.3

main55789-11010iGWZ100,URZ100..RHD201705

main55789-11020iGWZ100,URZ100..LHD201705

55791GCOVER, COWL REINFORCEMENT, UPPER RH

main55791-11010iGWZ100,URZ100201705

55792BCOVER, COWL REINFORCEMENT, UPPER LH

main55792-11010iGWZ100,URZ100201705

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-11010iGWZ100,URZ100201705

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-11010iGWZ100,URZ100201705

55795GCOVER, COWL REINFORCEMENT, UPPER NO.3 RH

main55795-11010iGWZ100,URZ100201705

55796BCOVER, COWL REINFORCEMENT, UPPER NO.3 LH

main55796-11010iGWZ100,URZ100201705

56111GLASS, WINDSHIELD

main56101-11902supersedes 56101-11935iGWZ100,URZ100..LHD201705-201802

COLD AREA SPEC&HEAD UP DISPLAY-WITH

main56101-11903supersedes 56101-11935iURZ100..LHD201705-201802

KAZAKHSTAN SPEC

main56101-11904supersedes 56101-11926iGWZ100,URZ100..RHD201705-201802

COLD AREA SPEC&HEAD UP DISPLAY-WITH

main56101-11905supersedes 56101-11926iGWZ100,URZ100..RHD201705-201802

HEAD UP DISPLAY-WITH

main56101-11909supersedes 56101-11935iGWZ100,URZ100..LHD201705-201802

COLD AREA SPEC

main56101-11910supersedes 56101-11935iURZ100..LHD201705-201802

AZERBAIJAN,GEORGIA SPEC&COLD AREA SPEC&HEAD UP DISPLAY-WITH

main56101-11911supersedes 56101-11926iGWZ100,URZ100..RHD201705-201802

COLD AREA SPEC

main56101-11913supersedes 56101-11935iURZ100..LHD201705-201802

KAZAKHSTAN SPEC&COLD AREA SPEC

main56101-11914iURZ100..LHD201705-201802

KAZAKHSTAN SPEC&HEAD UP DISPLAY-WITH

main56101-11915supersedes 56101-11935iGWZ100,URZ100..LHD201705-201802

HEAD UP DISPLAY-WITH

main56101-11920supersedes 56101-11926iGWZ100,URZ100..RHD201803

COLD AREA SPEC&HEAD UP DISPLAY-WITH

main56101-11921supersedes 56101-11926iGWZ100,URZ100..RHD201803-202212

HEAD UP DISPLAY-WITH

main56101-11922iGWZ100..RHD201906-202101

INDIA SPEC

main56101-11925supersedes 56101-11926iGWZ100,URZ100..RHD201803

COLD AREA SPEC

main56101-11927iGWZ100..RHD201906

INDIA SPEC&HEAD UP DISPLAY-WITH

main56101-11928supersedes 56101-11935iGWZ100,URZ100..LHD201803

COLD AREA SPEC&HEAD UP DISPLAY-WITH

main56101-11929iURZ100..LHD201803-201809

KAZAKHSTAN SPEC

main56101-11930supersedes 56101-11935iGWZ100,URZ100..LHD201803

COLD AREA SPEC

main56101-11931iURZ100..LHD201803-201809

AZERBAIJAN,GEORGIA SPEC&COLD AREA SPEC&HEAD UP DISPLAY-WITH

main56101-11932iURZ100..LHD201803-201809

KAZAKHSTAN SPEC&COLD AREA SPEC

main56101-11933iURZ100..LHD202111

BELARUS SPEC&HEAD UP DISPLAY-WITH

main56101-11934supersedes 56101-11935iGWZ100,URZ100..LHD201803

HEAD UP DISPLAY-WITH

main56101-11990supersedes 56101-11926iGWZ100,URZ100..RHD202212

HEAD UP DISPLAY-WITH

56114RETAINER, WINDSHIELD GLASS

main56114-48010×2iGWZ100,URZ100201705

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iGWZ100,URZ100201705

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGWZ100,URZ100201705

56117ADAM, WINDOW GLASS ADHESIVE

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-11010iGWZ100,URZ100..RHD201705

main56153-11020iGWZ100,URZ100..LHD201705

56165COVER, FRONT WINDOW INNER MOULDING, LH

main56165-30010iGWZ100,URZ100201705

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-11010iGWZ100,URZ100201705

8617

29 parts on this diagram · 4 diagrams in section
