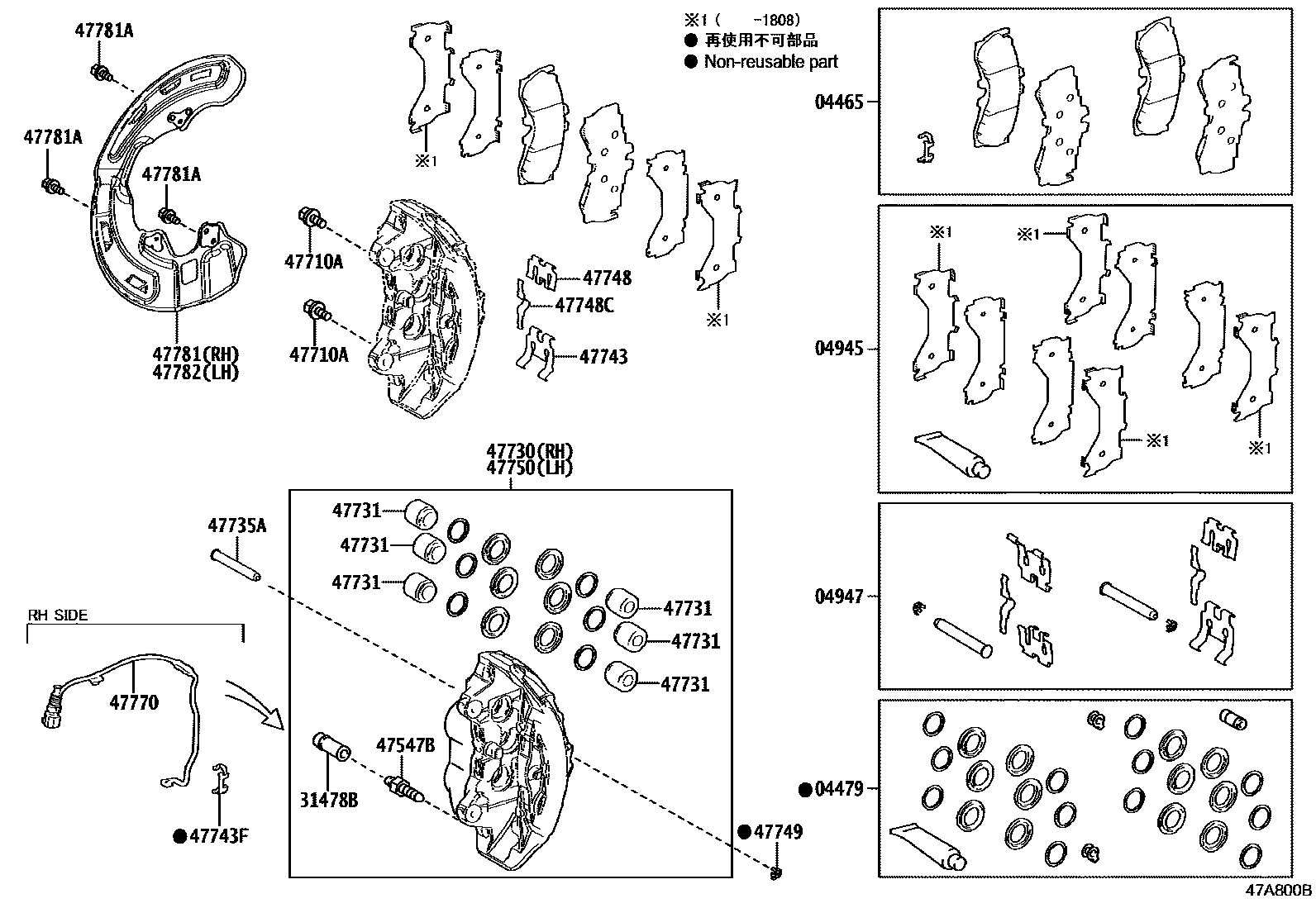

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-11010iGWZ100,URZ100201705-201906

MARK AK NS380H

sub04465-11011

main04465-11011iGWZ100,URZ100201906

MARK AK NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-11010iGWZ100,URZ100201705

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-11010iGWZ100,URZ100201705-201809

sub04945-11011

main04945-11011iGWZ100,URZ100201809

04947FITTING KIT, DISC BRAKE, FRONT

main04947-11010iGWZ100,URZ100201705

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGWZ100,URZ100201705

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iGWZ100,URZ100201705

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180iGWZ100,URZ100201705

*14-1.5PX40-35.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-11050iGWZ100,URZ100201705

47731PISTON, FRONT DISC BRAKE

main47731-11050iGWZ100,URZ100201705

47735APIN, TORQUE

main47735-11050iGWZ100,URZ100201705

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-11051iGWZ100,URZ100201705

47743FCLIP, PAD WEAR INDICATOR WIRE

main47743-11052iGWZ100,URZ100201705

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-11050iGWZ100,URZ100201705

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47748-11051iGWZ100,URZ100201705

47749CLIP, PIN HOLD

main47743-11050iGWZ100,URZ100201705

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-11040iGWZ100,URZ100201705

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-11010iGWZ100,URZ100201705

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-11010iGWZ100,URZ100201705

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508iGWZ100,URZ100201705

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-11010iGWZ100,URZ100201705

20 parts on this diagram · 1 diagram in section
