STEERING WHEEL

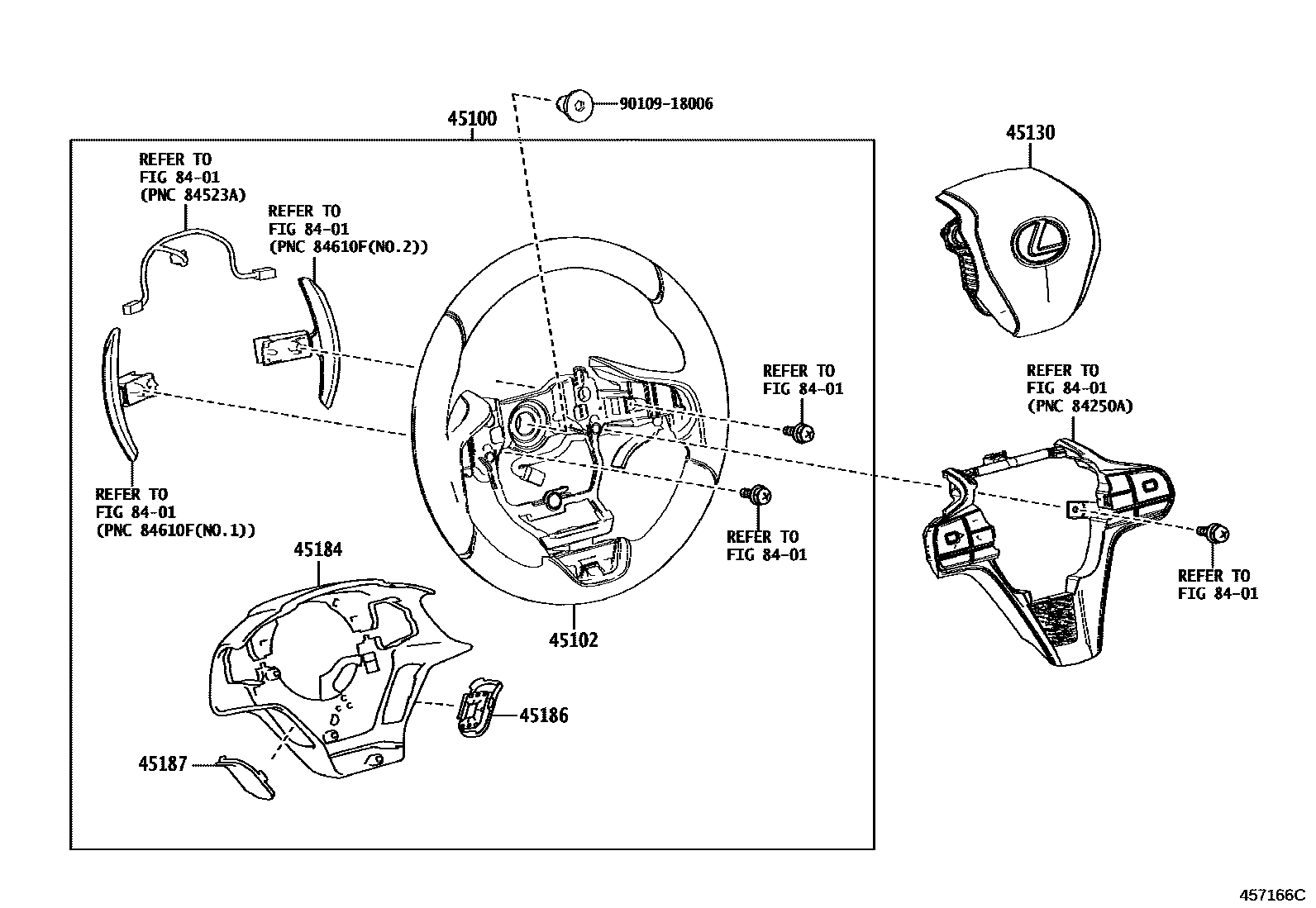

Parts diagram

45100WHEEL ASSY, STEERING

main45100-11030-C2i201705-202004

3-SPOKE,LEATHER,BLACK,TRIM2#,3#

main45100-11030-C4i202004

3-SPOKE,LEATHER,BLACK,TRIM2#,3#

main45100-11030-E2i201705-202004

3-SPOKE,LEATHER,OCHRE,TRIM4#

main45100-11030-E4i202004

3-SPOKE,LEATHER,ORANGE & BLACK & ORANGE,TRIM42

main45100-11030-E5i202004

3-SPOKE,LEATHER,OCHER,TRIM40

main45100-11030-J1i201705-202004

3-SPOKE,LEATHER,BLUE,TRIM8#

45102WHEEL SUB-ASSY, STEERING

main45102-11010-C1i201705

BLACK,TRIM2#,3#

main45102-11010-E1i201705-202004

OCHRE,TRIM4#

main45102-11010-E1i202004

OCHRE,TRIM40

main45102-11010-E3i202004

ORANGE & ORANGE,TRIM42

main45102-11010-J0i201705-202004

BLUE,TRIM8#

45130BUTTON ASSY, HORN

main45130-11010-C2i201809-201906

BLACK,TRIM20,3#

main45130-11010-C2i201705-202101

BLACK,TRIM2#,3#

main45130-11010-C3i201809-201906

BLACK/MUSTARD YELLOW,TRIM21

main45130-11010-C5i202101-202201

BLACK & BROWN,TRIM21,22

main45130-11010-C6i202201

BLACK & RED,TRIM23

main45130-11010-E2i201705-201906

OCHRE,TRIM4#

main45130-11010-E2i201906

OCHRE,TRIM40

main45130-11010-E5i201906-202004

KUROKOHAKU,TRIM41

main45130-11010-E6i202004

ORANGE & ORANGE,TRIM42

main45130-11010-J1i201705-202004

BLUE,TRIM8#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-11010-C1i201705

BLACK,TRIM2#,3#,42

main45184-11010-E1i201705

OCHRE,TRIM40

main45184-11010-J0i201705-202004

BLUE,TRIM8#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-11010-C1i201705

BLACK,TRIM2#,3#,42

main45186-11010-E1i201705

OCHRE,TRIM40

main45186-11010-J0i201705-202004

BLUE,TRIM8#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-11010-C1i201705

BLACK,TRIM2#,3#,42

main45187-11010-E1i201705

OCHRE,TRIM40

main45187-11010-J0i201705-202004

BLUE,TRIM8#

8401

9010918006

main90109-18006

8 parts on this diagram · 2 diagrams in section
