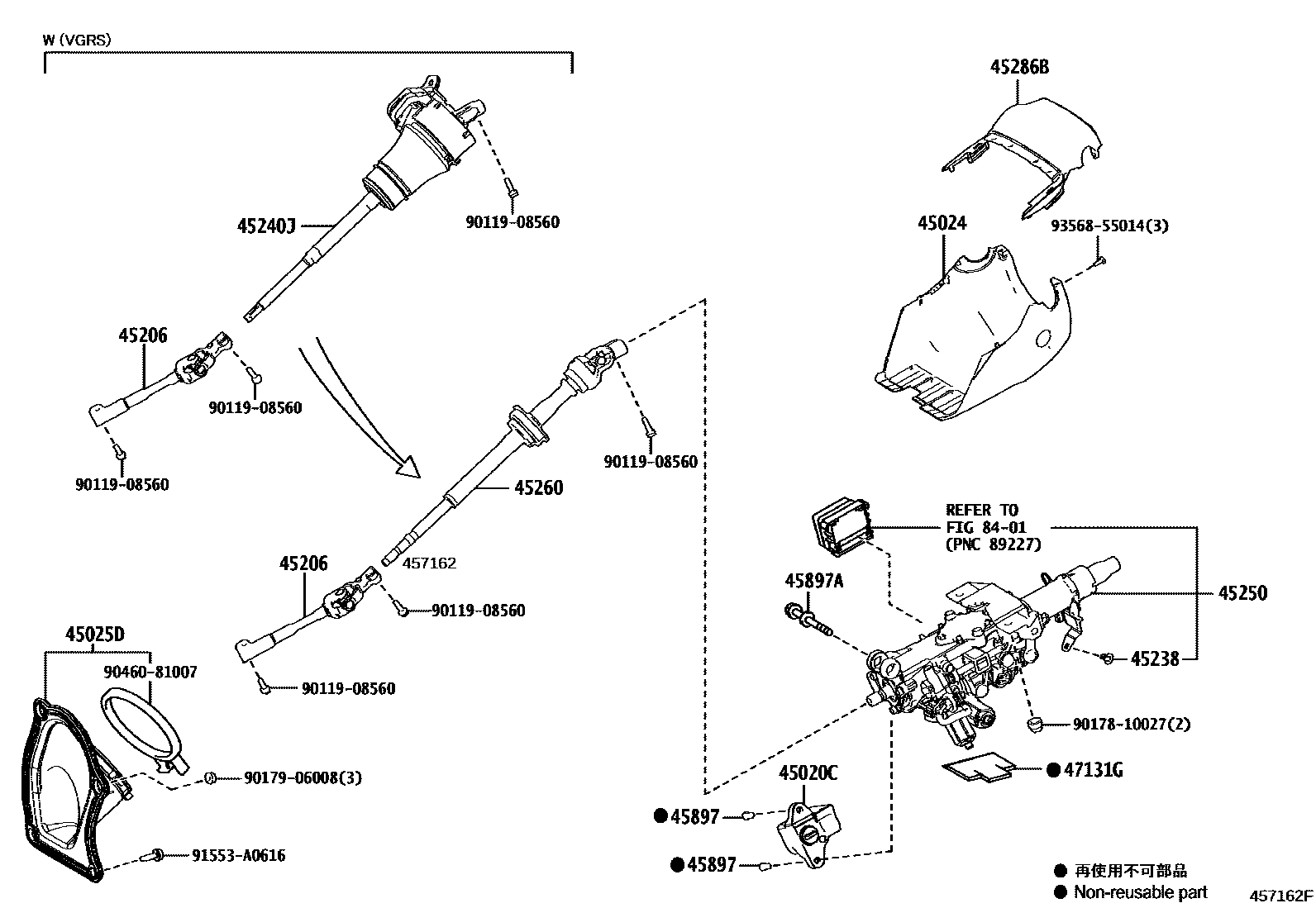

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
NETHER LAND SPEC
FINLAND,NORWAY,SWEDEN SPEC
RUSSIA SPEC
KAZAKHSTAN SPEC
ESTONIA,LATVIA,LITHUANIA SPEC
BELARUS SPEC
ARMENIA SPEC
CYPRUS SPEC
MALTA SPEC
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
BLACK,TRIM2#,3#,4#
BLUE,TRIM8#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45240JACTUATOR ASSY, STEERING
FOUR-WHEEL STEERING-WITH
FOUR-WHEEL STEERING-WITH
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
sub45260-11030
sub45260-30270
sub45260-11031
sub45260-30271
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#,3#,4#
BLUE,TRIM8#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
47131GCUSHION
8401
9011908560
main90119-08560
9017810027
main90178-10027
9017906008
main90179-06008
9046081007
main90460-81007
91553A0616
main91553-A0616
9356855014
main93568-55014
19 parts on this diagram · 2 diagrams in section
