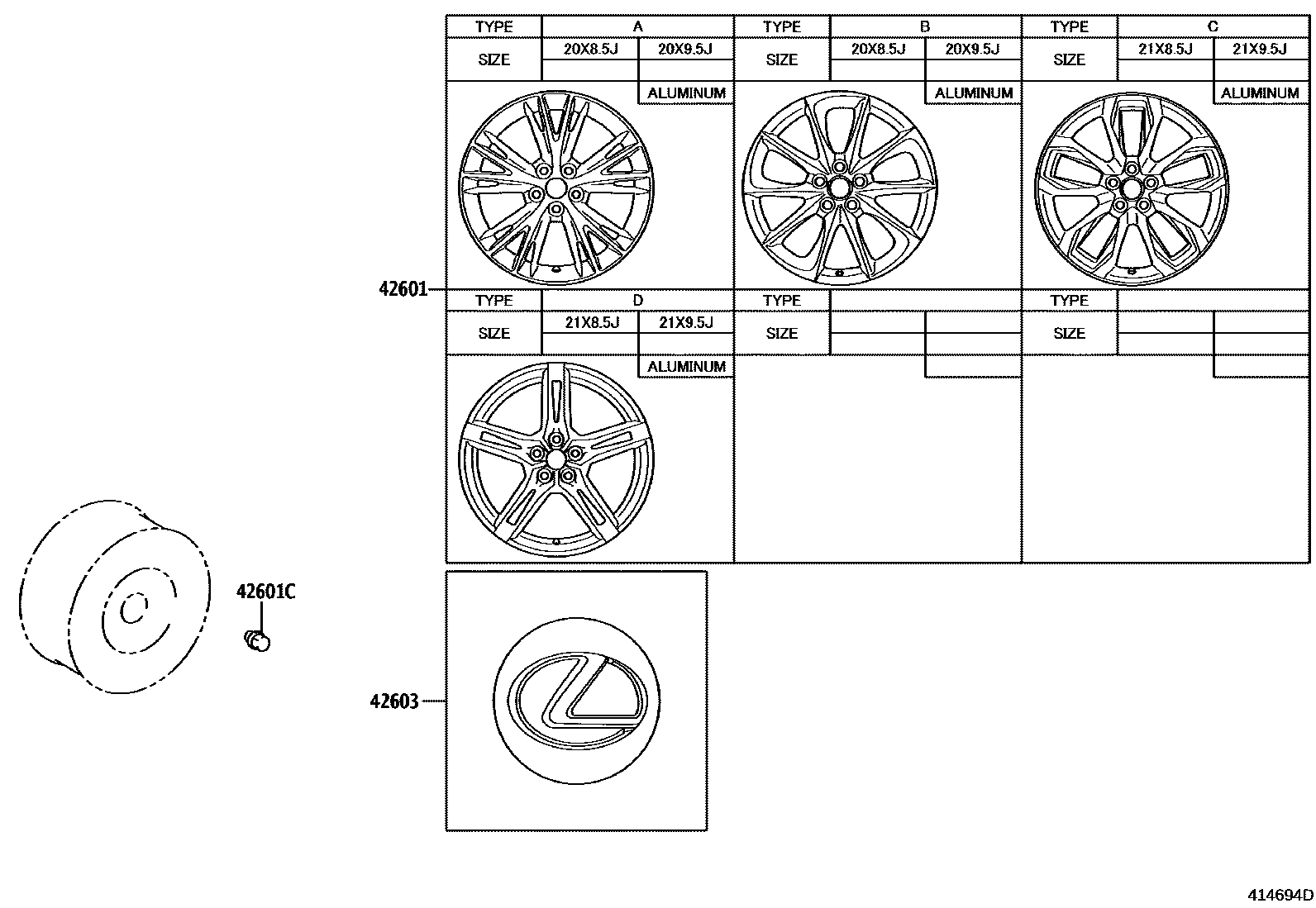

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

20X8.5J,#,TIRE & DISK WHEEL-245/45 & 245/45RF20 (MACHINING),TYPE A:REFER ILLUST.

20X8.5J,#,FR,T/P A:SEE ILLUST

20X9.5J,#,RR,T/P A:SEE ILLUST

21X8.5J,BLACK PAINT,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,FR,T/PC:SEE ILLUST

main42611-11110i201705-202004

21X9.5J,BLACK PAINT,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/PC:SEE ILLUST

main42611-11120i201705-202004

20X8.5J,#,TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED ALUMINUM,FR,T/P B:SEE ILLUST

main42611-11130i201705-202004

20X9.5J,#,TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED ALUMINUM,RR,T/P B:SEE ILLUST

21X9.5J,BLACK PAINT,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/PC:SEE ILLUST

main42611-WY340i202101-202111

21X8.5J, #,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,FR,T/P D:SEE ILLUST

21X8.5J, #,PERSONAL PACKAGE&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,FR,T/P D:SEE ILLUST

21X9.5J, #,PERSONAL PACKAGE&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/P D:SEE ILLUST

main42611-WY350i202101-202111

21X9.5J, #,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/P D:SEE ILLUST

21X8.5J, #,PERSONAL PACKAGE&TIRE & DISK WHEEL-22MY 245/40 & 275/35RF21,TYPE E:REFER ILLUST.

21X8.5J, #,"UNWIND"*(E)&TIRE & DISK WHEEL-22MY 245/40 & 275/35RF21,TYPE E:REFER ILLUST.

21X9.5J, #,"UNWIND"*(E)&TIRE & DISK WHEEL-22MY 245/40 & 275/35RF21,TYPE E:REFER ILLUST.

21X9.5J, #,PERSONAL PACKAGE&TIRE & DISK WHEEL-22MY 245/40 & 275/35RF21,TYPE E:REFER ILLUST.

main4261A-11010i202004-202111

20X8.5J,#,TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED ALUMINUM,FR,T/P B:SEE ILLUST

main4261A-11020i202004-202111

20X9.5J,#,TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED ALUMINUM,RR,T/P B:SEE ILLUST

42601CNUT, HUB (FOR AXLE)

main90942-01111i201705-202004

TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED ALUMINUM,CHROME PLATED

BLACK CHROME PLATED

42603ORNAMENT SUB-ASSY, WHEEL HUB

*ALU

3 parts on this diagram · 2 diagrams in section
