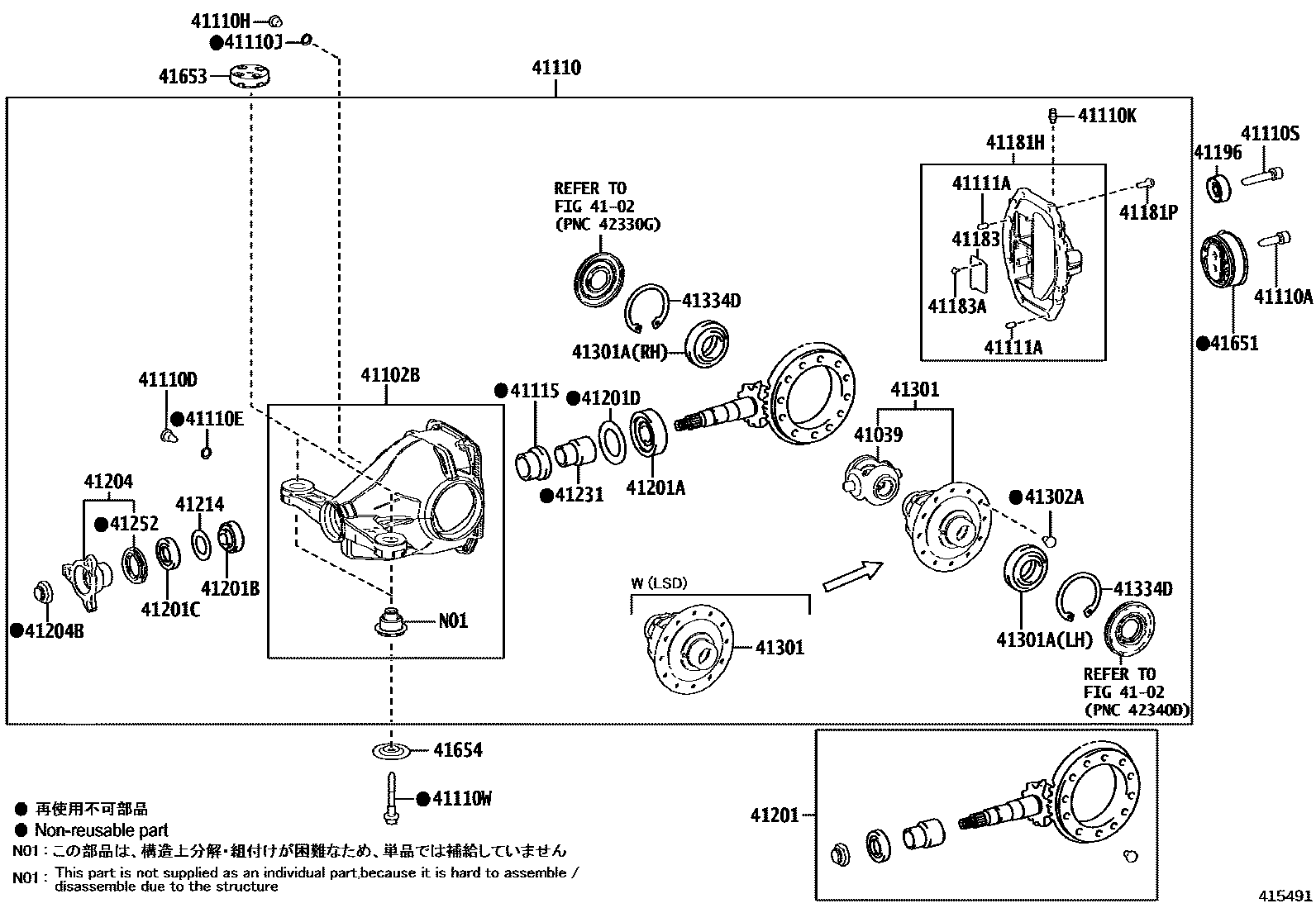

REAR AXLE HOUSING & DIFFERENTIAL
4102
41039GEAR KIT, DIFFERENTIAL, REAR
41102BCARRIER SUB-ASSY, DIFFERENTIAL W/MOUNT
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=47:16=2.937
*FGR=47:14=3.357
*FGR=47:16=2.937,REAR DIFFERENTIAL-FD23AT 2.937 LSD
*FGR=47:14=3.357,"S PACKAGE"&FOUR-WHEEL STEERING-WITH
*FGR=47:14=3.357,PERSONAL PACKAGE&FOUR-WHEEL STEERING-WITH
*FGR=47:14=3.357,LUSTER YELLOW*()
*FGR=47:14=3.357,"S PACKAGE"
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
*14-2.0PX47.3-35
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41110SBOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET)
41110WBOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET)
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41115RING, DIFFERENTIAL OIL STORAGE
41181HCOVER, REAR DIFFERENTIAL CARRIER
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41183ABOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR)
41196DAMPER, REAR DIFFERENTIAL DYNAMIC
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=47:16=2.937
*FGR=47:14=3.357
*FGR=47:16=2.937
*FGR=47:14=3.357
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=1.92
T=1.94
T=1.96
T=1.98
T=2.00
T=2.02
T=2.04
T=2.06
T=2.08
T=2.10
T=2.12
T=2.14
T=2.16
T=2.18
T=2.20
T=2.22
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=48.0
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
REAR DIFFERENTIAL-FD23AT 2.937 LSD
"S PACKAGE"&FOUR-WHEEL STEERING-WITH
PERSONAL PACKAGE&FOUR-WHEEL STEERING-WITH
LUSTER YELLOW*()
"S PACKAGE"
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
RH
LH
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=3.52
T=3.54
T=3.56
T=3.58
T=3.60
T=3.62
T=3.64
T=3.66
T=3.68
T=3.70
T=3.72
T=3.74
T=3.76
T=3.78
T=3.80
T=3.82
T=3.84
T=3.86
T=3.88
T=3.90
T=3.92
T=3.94
T=3.96
T=3.98
T=4.00
T=4.02
T=4.04
T=4.06
T=4.08
T=4.10
T=4.12
T=4.14
T=4.16
T=4.18
T=4.20
T=4.22
T=4.24
T=4.26
T=4.28
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER
H=19.7
41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER
36 parts on this diagram · 1 diagram in section
