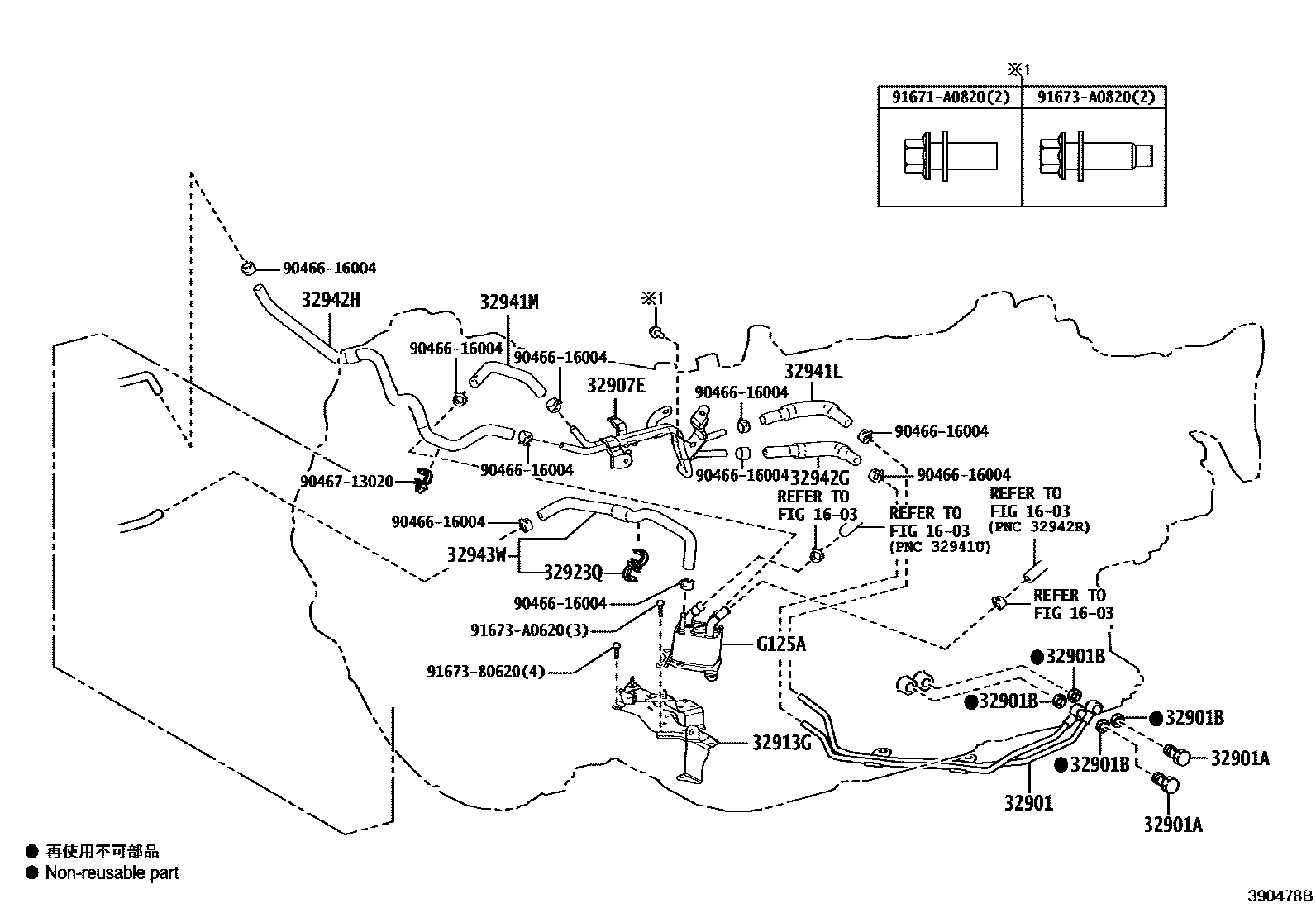

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

1603

32901UNION SUB-ASSY, OIL COOLER

main32901-11010iGWZ100201705

32901ABOLT, UNION(FOR OIL COOLER)

main90401-14003×2iGWZ100201705

32901BGASKET(FOR OIL COOLER UNION)

main90430-14013×4iGWZ100201705

32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE

main32907-11010iGWZ100201705

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-11010iGWZ100201705

32923QCLAMP, OIL COOLER TUBE

main32923-50110iGWZ100201705

32941LHOSE, OIL COOLER INLET, NO.1

main32941-11010iGWZ100201705

32941MHOSE, OIL COOLER INLET, NO.2

main32941-11020iGWZ100201705

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-11010iGWZ100201705

32942HHOSE, OIL COOLER OUTLET, NO.2

main32942-11020iGWZ100201705

32943WHOSE, TRANSMISSION OIL COOLER

main32943-11010iGWZ100201705

G125ACOOLER, MOTOR COOLING

mainG125A11010iGWZ100201705

9046616004

main90466-16004

9046713020

main90467-13020

91671A0820

main91671-A0820

9167380620

main91673-80620

91673A0620

main91673-A0620

91673A0820

main91673-A0820

19 parts on this diagram · 1 diagram in section
