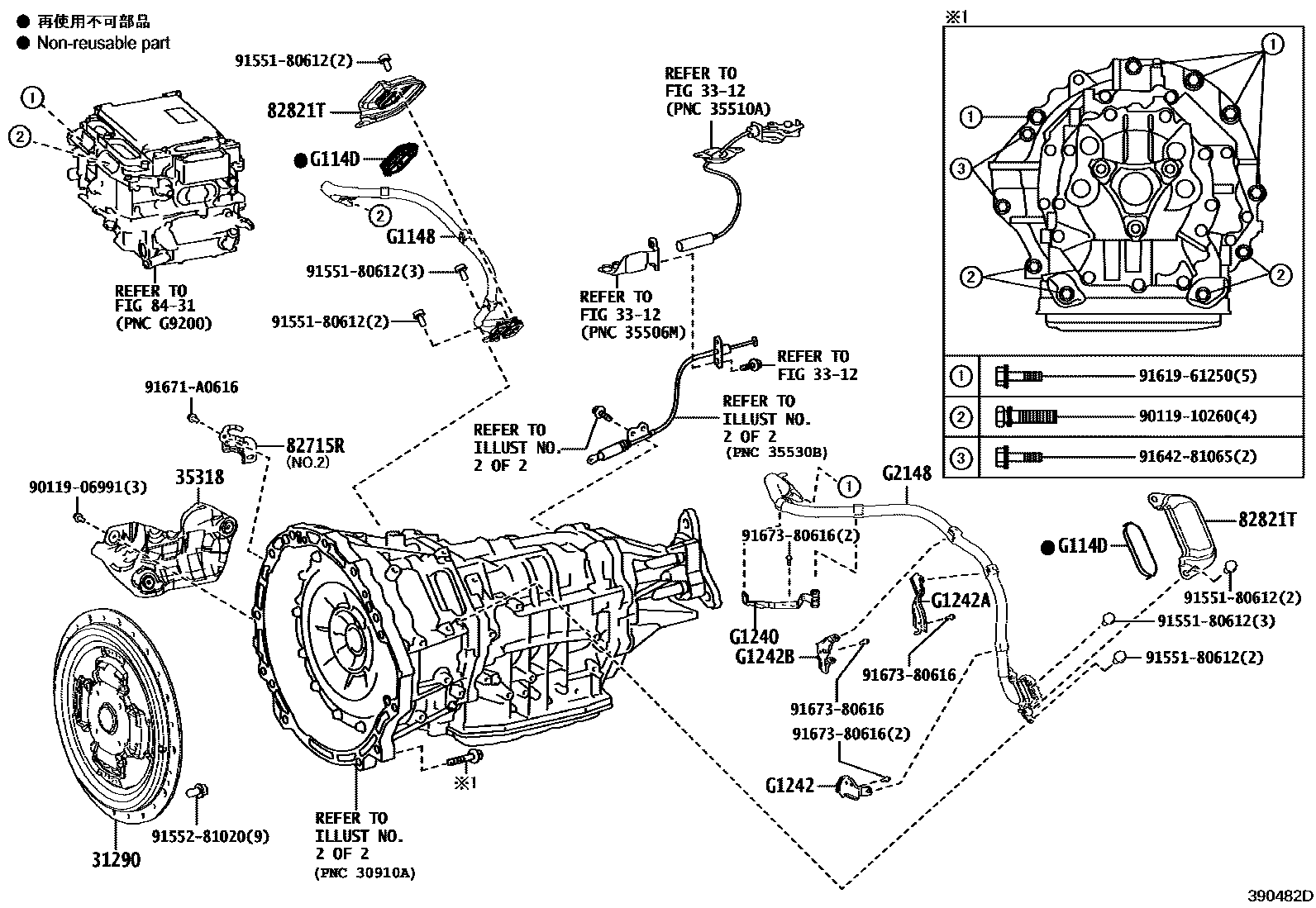

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-30010iGWZ100¥33,100201705

3312

35318INSULATOR, TRANSMISSION OIL PUMP

main35318-11010iGWZ100¥1,930201705

82715RBRACKET, WIRING HARNESS CLAMP, NO.1

main82715-11010iGWZ100¥610201705

NO.1

main82715-11020iGWZ100¥410201705

NO.2

82821TCOVER, CONNECTOR

main82821-11010iGWZ100¥1,400201705

8431

G1148CABLE, MOTOR

mainG114811010iGWZ100..RHD201705

mainG114811020iGWZ100..LHD201705

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iGWZ100201705

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124011010iGWZ100..RHD201705

mainG124011020iGWZ100..LHD201705

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211010iGWZ100..RHD201705

mainG124211030iGWZ100..LHD201705

G1242ABRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211020iGWZ100..RHD201705

mainG124211040iGWZ100..LHD201705

G1242BBRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211050iGWZ100..LHD201705

G2148CABLE, GENERATOR

mainG214811010iGWZ100..RHD201705

mainG214811020iGWZ100..LHD201705

9011906991

main90119-06991¥60

9011910260

main90119-10260¥210

9155180612

main91551-80612¥60

9155281020

main91552-81020¥100

9161961250

main91619-61250¥140

9164281065

main91642-81065¥180

91671A0616

main91671-A0616¥60

9167380616

main91673-80616¥60

21 parts on this diagram · 3 diagrams in section
