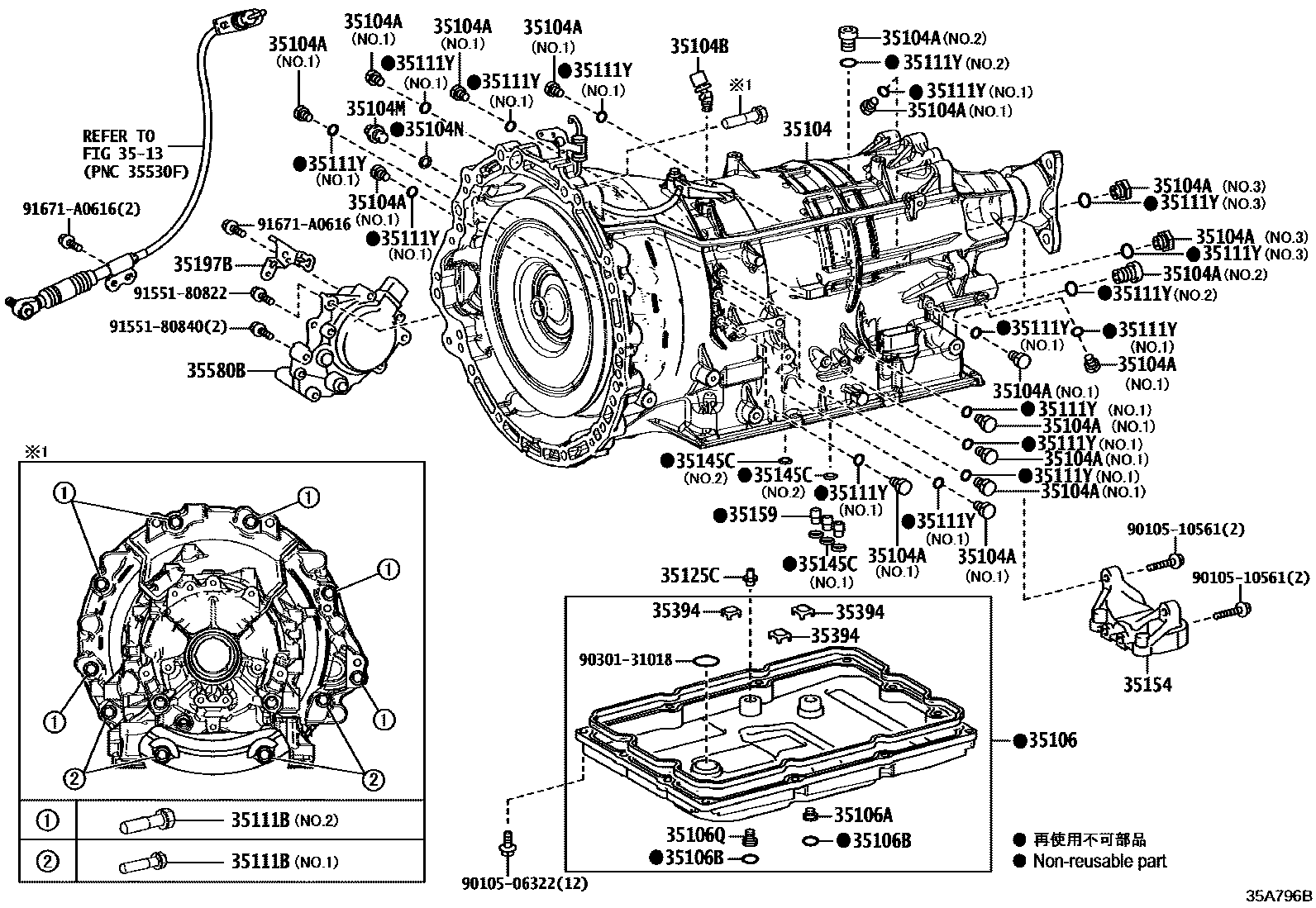

TRANSMISSION CASE & OIL PAN (ATM)
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104APLUG, AUTOMATIC TRANSMISSION CASE
NO.1
NO.2
NO.3
35104BPLUG, BREATHER, NO.1 (ATM)
35104MPLUG, REFILL(ATM)
35104NRING, O (FOR REFILL PLUG)
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)
*10-1.25PX43-30,NO.1
*12-1.25PX50-30,NO.2
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
NO.1
NO.2
NO.3
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
3513
35145CGASKET, TRANSAXLE CASE
NO.1
NO.2
35154ADAPTER, TRANSMISSION CASE
35159GASKET, BRAKE DRUM
35197BBRACKET, HEAT INSULATOR, NO.2
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35580BACTUATOR ASSY, SHIFT CONTROL
9010506322
9010510561
9030131018
9155180822
9155180840
91671A0616
25 parts on this diagram · 1 diagram in section
