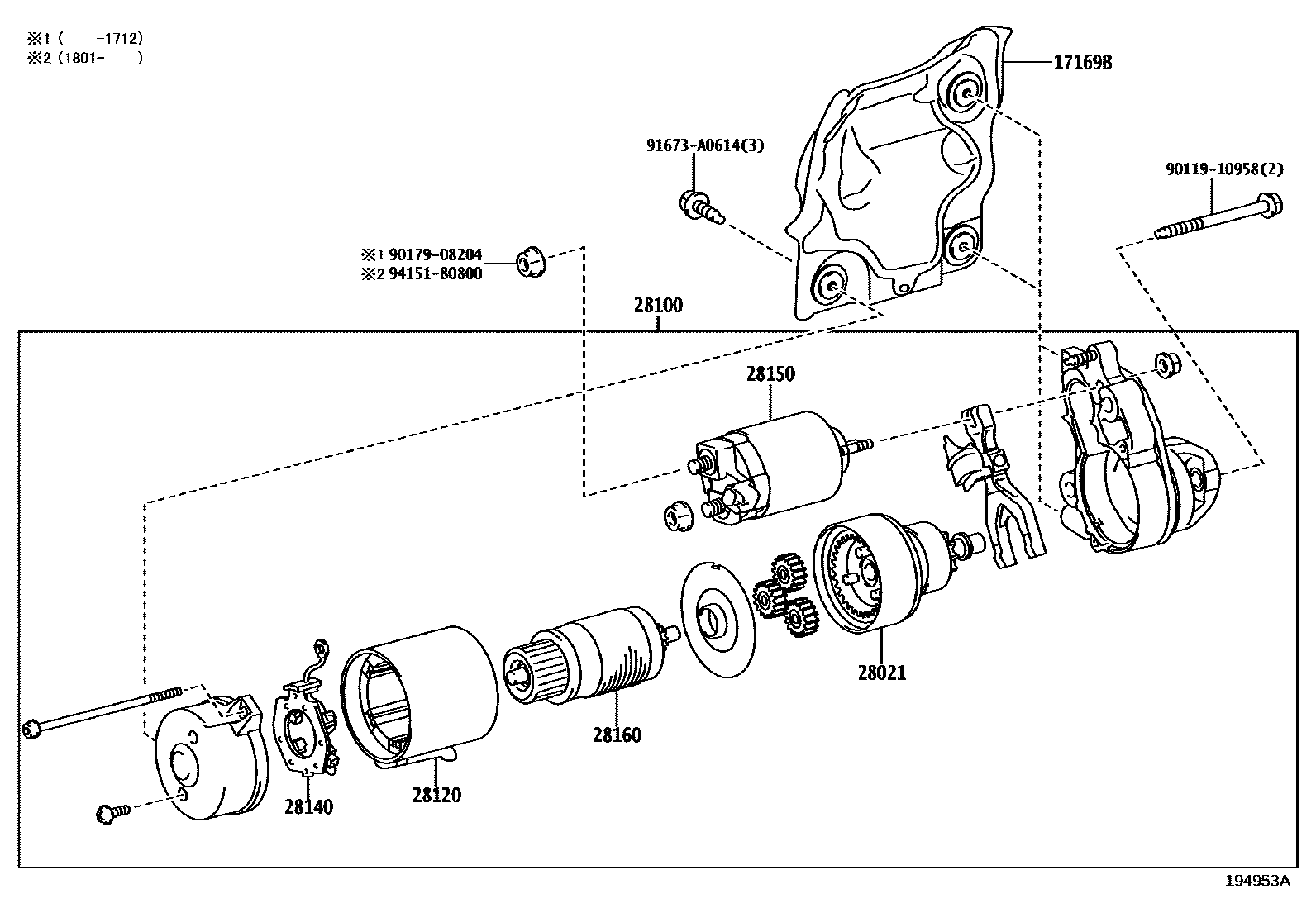

STARTER

17169BINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-38030i2URGSE..URZ100¥2,620201705-202305

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-75210i2URGSE..URZ100¥5,800201705

28100STARTER ASSY

main28100-38091i2URGSE..URZ100¥76,600201705

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-38090i2URGSE..URZ100201705

28140HOLDER ASSY, STARTER BRUSH

main28140-38070i2URGSE..URZ100201705

28150SWITCH ASSY, MAGNET STARTER

main28150-38061i2URGSE..URZ100¥13,200201705

28160ARMATURE ASSY, STARTER

main28160-36110i2URGSE..URZ100¥13,100201910

main28160-38070i2URGSE..URZ100¥20,800201705-201801

main28160-38080i2URGSE..URZ100¥20,800201801-201910

sub28160-36110¥13,100

9011910958

main90119-10958¥190

9017908204

main90179-08204¥140

91673A0614

main91673-A0614¥60

9415180800

main94151-80800¥80

11 parts on this diagram · 1 diagram in section
