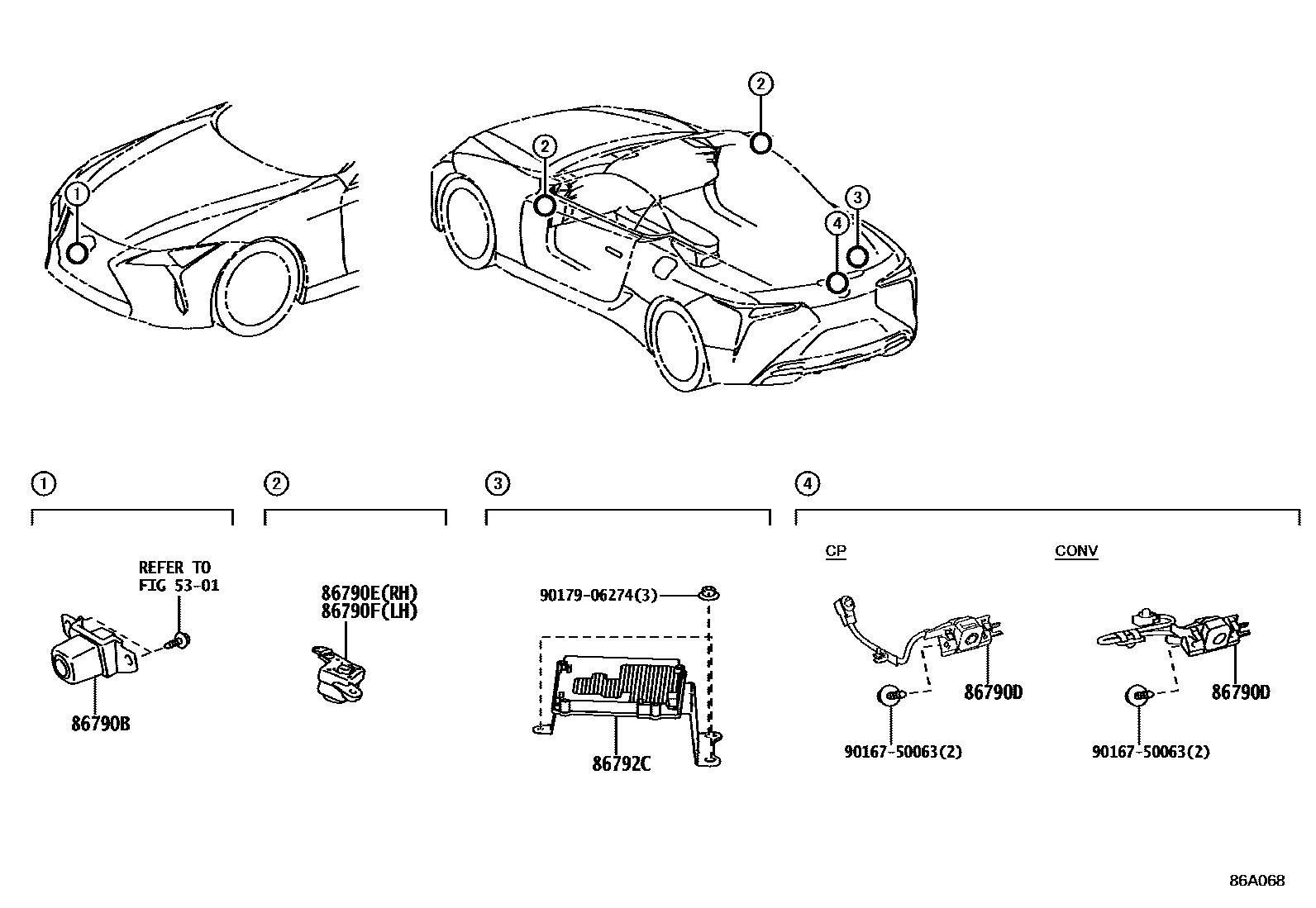

CAMERA & REAR MONITOR DISPLAY

5301

86790BCAMERA ASSY, TELEVISION, FR

main86790-11010iGWZ100,URZ100..EUR¥21,900202305-202403

86790DCAMERA ASSY, TELEVISION, RR

main86790-11020iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)¥26,200202305-202403

main86790-11030iURZ100..CONV..(ARL,GCC,GEN)¥26,200202305-202403

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-33280iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main86790-33300iGWZ100,URZ100..ARL¥26,200202305-202403

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-33270iGWZ100,URZ100..LHD..EUR202305-202403

main86790-33290iGWZ100,URZ100..RHD..EUR¥26,200202305-202403

86792CCOMPUTER, PARKING ASSIST

main86792-11010iGWZ100,URZ100..RHD..EUR¥63,200202305-202508

main86792-11020iGWZ100,URZ100..CHI,GCC,GEN202305-202508

9016750063

main90167-50063¥60

9017906274

main90179-06274¥70

8 parts on this diagram · 1 diagram in section
