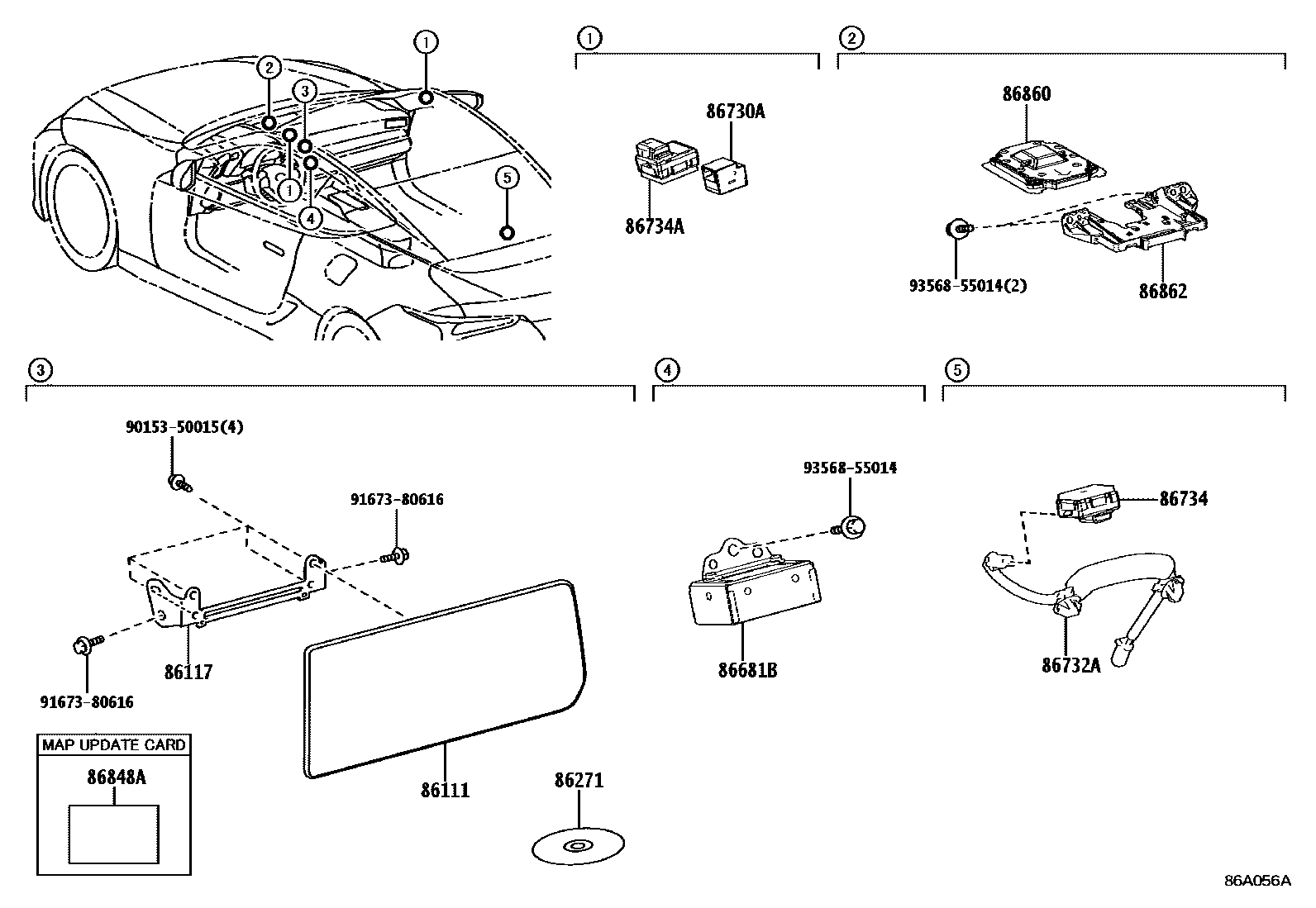

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

86111MULTI-DISPLAY

main86110-11170iGWZ100,URZ100..ARL¥120,000202305

DENSO TEN

main86110-11200iGWZ100,URZ100..CHI,GCC,GEN202305

DENSO TEN

main86110-11210iGWZ100,URZ100..RHD..EUR202305-202403

DENSO TEN

main86110-11230iGWZ100,URZ100..LHD..EUR202305-202403

DENSO TEN

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN¥550202305-202403

86271DISC, DISC PLAYER

main86807-0W230

86681BDIVIDER, ANTENNA

main86681-11010iGWZ100,URZ100..GCC¥3,580202305

QATAR SPEC&DATA COMMUNICATION MODULE-WITH

main86681-11010iGWZ100,URZ100..GCC¥3,580202305

U.A.E SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL)

main86681-11010iGWZ100,URZ100..EUR¥3,580202305-202403

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010iGWZ100,URZ100..EUR¥6,400202305-202403

86732AWIRE,MICROPHONE

main86732-11010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)¥410202305-202403

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)¥1,860202305-202403

main86734-11030iURZ100..CONV..EUR¥1,860202305-202403

86734AMICROPHONE, ACTIVE NOISE CONTROL, FRONT

main86734-11030iGWZ100,URZ100..CP..EUR¥1,860202305-202403

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-78030iGWZ100,URZ100..ARL202410

main86848-78040iGWZ100,URZ100..GEN202410

GUATEMALA SPEC

main86848-78050iGWZ100,URZ100..GCC202410

86860ANTENNA ASSY, NAVIGATION

main86860-78010iURZ100..ARL¥8,500202305

THAILAND SPEC

main86860-78010iURZ100..ARL¥8,500202305

MALAYSIA SPEC

main86860-78010iURZ100..CONV..ARL¥8,500202305

NEW ZEALAND SPEC

main86860-78010iURZ100..CONV..ARL¥8,500202305

HONG KONG SPEC

main86860-78010iURZ100..CONV..ARL¥8,500202305

BRUNEI SPEC

main86860-78010iURZ100..CONV..ARL¥8,500202305

INDONESIA SPEC

main86860-78010iURZ100..CONV..ARL¥8,500202305

SINGAPORE SPEC

main86880-52020iGWZ100,URZ100..EUR¥8,500202305-202403

main86880-52020iGWZ100,URZ100..ARL,CHI¥8,500202305

QATAR SPEC&DATA COMMUNICATION MODULE-WITH

86862BRACKET, NAVIGATION ANTENNA

main86862-58020iGWZ100,URZ100..EUR¥940202305-202403

9015350015

main90153-50015¥60

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

14 parts on this diagram · 4 diagrams in section
