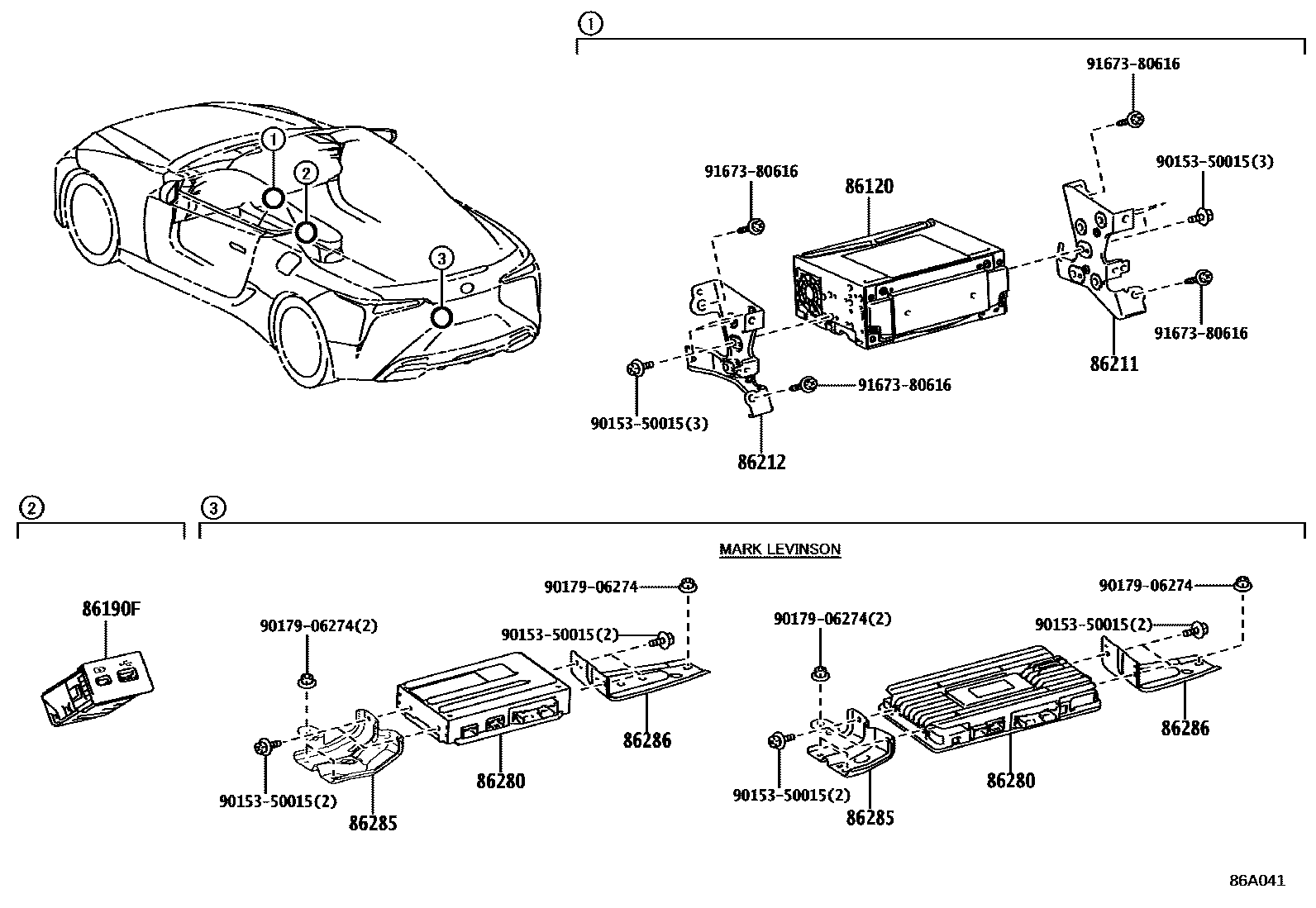

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1CONDENSER 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-11830iURZ100..LHD..CONV..EUR202305-202403

PANASONIC,TURKEY SPEC

main86120-11J70iGWZ100..CHI202305

DENSO TEN

main86120-11J80iGWZ100,URZ100..LHD..CP..EUR202305-202403

PANASONIC

main86120-11J90iGWZ100,URZ100..LHD..CP..EUR202305-202403

PANASONIC,TURKEY SPEC

main86120-11K10iGWZ100,URZ100..CP..ARL202305

DENSO TEN

main86120-11K20iGWZ100..ARL202305

DENSO TEN,HONG KONG SPEC

main86120-11K40iURZ100..CP..GEN202305-202410

PANASONIC,VIETNAM SPEC

main86120-11K40iURZ100..CP..GEN202305

PANASONIC,PHILIPPINE SPEC

main86120-11K50iGWZ100,URZ100..CP..GCC202305

PANASONIC

main86120-11K60iGWZ100..RHD..EUR202305-202403

DENSO TEN,INDIA SPEC

main86120-11K70iGWZ100,URZ100..CP..GEN202305

DENSO TEN

main86120-11K90iGWZ100,URZ100..CP..GEN202305-202508

PANASONIC,GUATEMALA SPEC

main86120-11K90iGWZ100,URZ100..CP..GEN202305-202410

PANASONIC,MIDDLE & SOUTH AMERICA SPEC

main86120-11L00iGWZ100..GEN202305

PANASONIC,ARGENTINA SPEC

main86120-11L40iURZ100..LHD..CONV..EUR202305-202403

PANASONIC

main86120-11L50iURZ100..CONV..ARL202305

DENSO TEN

main86120-11L70iURZ100..CONV..GCC202305

PANASONIC

main86120-11L90iURZ100..CONV..GEN202305

PANASONIC,PHILIPPINE SPEC

main86120-11M10iURZ100..CONV..GEN202305-202410

PANASONIC,MIDDLE & SOUTH AMERICA SPEC

main86120-11M10iURZ100..CONV..GEN202305-202508

PANASONIC,GUATEMALA SPEC

main86120-11M20iURZ100..CONV..GEN202305

PANASONIC,ARGENTINA SPEC

main86120-11M30iGWZ100,URZ100..CP..GCC202305-202409

PANASONIC,BAHRAIN SPEC

sub86120-11M31

main86120-11M30iGWZ100,URZ100..CP..GCC202305-202409

PANASONIC,SAUDI ARABIA SPEC

sub86120-11M31

main86120-11M30iGWZ100,URZ100..CP..GCC202305-202409

PANASONIC,U.A.E SPEC

sub86120-11M31

main86120-11M30iGWZ100,URZ100..CP..GCC202305-202409

PANASONIC,KUWAIT SPEC

sub86120-11M31

main86120-11M31iGWZ100,URZ100..CP..GCC202410

PANASONIC,BAHRAIN SPEC

main86120-11M31iURZ100..CP..GCC202410

PANASONIC,U.A.E SPEC

main86120-11M31iURZ100..CP..GCC202410

PANASONIC,SAUDI ARABIA SPEC

main86120-11M31iGWZ100,URZ100..CP..GCC202410

PANASONIC,KUWAIT SPEC

main86120-11M40iURZ100..CONV..GCC202305-202409

PANASONIC,KUWAIT SPEC

sub86120-11M41

main86120-11M40iURZ100..CONV..GCC202305-202409

PANASONIC,BAHRAIN SPEC

sub86120-11M41

main86120-11M40iURZ100..CONV..GCC202305-202409

PANASONIC,SAUDI ARABIA SPEC

sub86120-11M41

main86120-11M40iURZ100..CONV..GCC202305-202409

PANASONIC,U.A.E SPEC

sub86120-11M41

main86120-11M41iURZ100..CONV..GCC202410

PANASONIC,SAUDI ARABIA SPEC

main86120-11M41iURZ100..CONV..GCC202410

PANASONIC,BAHRAIN SPEC

main86120-11M41iURZ100..CONV..GCC202410

PANASONIC,KUWAIT SPEC

main86120-11M41iURZ100..CONV..GCC202410

PANASONIC,U.A.E SPEC

main86120-11M60iURZ100..CONV..GEN202305

DENSO TEN

main86120-11M70iURZ100..LHD..CP..EUR202305-202403

PANASONIC,ARMENIA SPEC

main86120-11M70iURZ100..LHD..CP..EUR202305-202403

PANASONIC,BELARUS SPEC

main86120-11M70iURZ100..LHD..CP..EUR202305-202403

PANASONIC,AZERBAIJAN SPEC

main86120-11M70iURZ100..LHD..CP..EUR202305-202403

PANASONIC,KAZAKHSTAN SPEC

main86120-11M70iURZ100..LHD..CP..EUR202305-202403

PANASONIC,GEORGIA SPEC

main86120-11M90iURZ100..LHD..CONV..EUR202305-202403

PANASONIC,GEORGIA SPEC

main86120-11M90iURZ100..LHD..CONV..EUR202305-202403

PANASONIC,AZERBAIJAN SPEC

main86120-11N10iURZ100..CP..ARL202305-202403

PANASONIC,BRUNEI SPEC

sub86120-11N11

main86120-11N10iURZ100..CP..ARL202305-202403

PANASONIC,INDONESIA SPEC

sub86120-11N11

main86120-11N10iURZ100..CP..ARL202305-202403

PANASONIC,SINGAPORE SPEC

sub86120-11N11

main86120-11N10iURZ100..CP..ARL202305-202403

PANASONIC,THAILAND SPEC

sub86120-11N11

main86120-11N10iURZ100..CP..ARL202305-202403

PANASONIC,MALAYSIA SPEC

sub86120-11N11

main86120-11N11iURZ100..CP..ARL202404-202501

PANASONIC,BRUNEI SPEC

main86120-11N11iURZ100..CP..ARL202404-202501

PANASONIC,INDONESIA SPEC

main86120-11N11iURZ100..CP..ARL202404-202501

PANASONIC,SINGAPORE SPEC

main86120-11N11iURZ100..CP..ARL202404-202501

PANASONIC,THAILAND SPEC

main86120-11N11iURZ100..CP..ARL202404-202501

PANASONIC,MALAYSIA SPEC

main86120-11N20iGWZ100,URZ100..RHD..CP..EUR202305-202403

PANASONIC

main86120-11N30iURZ100..CONV..ARL202305-202403

PANASONIC,SINGAPORE SPEC

sub86120-11N31

main86120-11N30iURZ100..CONV..ARL202305-202403

PANASONIC,INDONESIA SPEC

sub86120-11N31

main86120-11N30iURZ100..CONV..ARL202305-202403

PANASONIC,BRUNEI SPEC

sub86120-11N31

main86120-11N30iURZ100..CONV..ARL202305-202403

PANASONIC,MALAYSIA SPEC

sub86120-11N31

main86120-11N31iURZ100..CONV..ARL202404-202501

PANASONIC,INDONESIA SPEC

main86120-11N31iURZ100..CONV..ARL202404-202501

PANASONIC,SINGAPORE SPEC

main86120-11N31iURZ100..CONV..ARL202404-202501

PANASONIC,BRUNEI SPEC

main86120-11N31iURZ100..CONV..ARL202404-202501

PANASONIC,MALAYSIA SPEC

main86120-11N40iURZ100..RHD..CONV..EUR202305-202403

PANASONIC

86190FADAPTER ASSY, STEREO JACK

main86190-48090iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

86211BRACKET, RADIO, NO.1

main86211-11020iGWZ100,URZ100..EUR202305-202403

86212BRACKET, RADIO, NO.2

main86212-11020iGWZ100,URZ100..EUR202305-202403

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-11080iGWZ100..CHI202305

main86280-11090iGWZ100..CHI202305

AUDIO-FM & 13SPEAKER

main86280-11090iGWZ100..EUR202305-202403

main86280-11110iURZ100..CP..EUR202305-202403

main86280-11130iURZ100..CONV..EUR202305-202403

86285BRACKET, AMPLIFIER, NO.1

main86285-11010iGWZ100..CHI202305

main86285-11030iGWZ100,URZ100..ARL,GCC,GEN202305

AUDIO-FM & 13SPEAKER

main86285-11030iGWZ100,URZ100..EUR202305-202403

86286BRACKET, AMPLIFIER, NO.2

main86286-11050iGWZ100..CHI202305

main86286-11060iGWZ100,URZ100..ARL,GCC,GEN202305

AUDIO-FM & 13SPEAKER

main86286-11060iGWZ100,URZ100..EUR202305-202403

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

10 parts on this diagram · 3 diagrams in section
