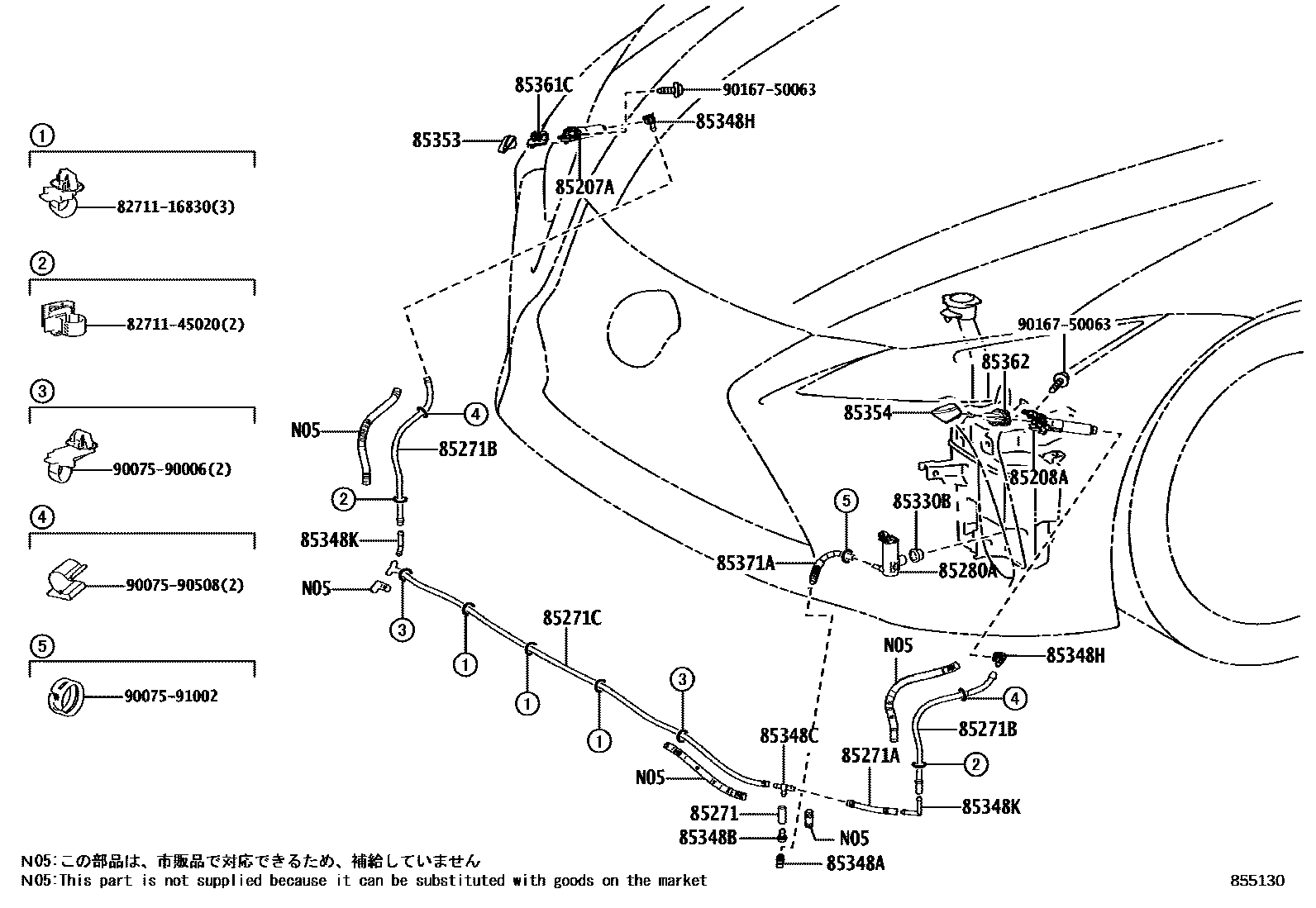

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=35
L=35,HEADLAMP- LED & WITH(*AHB) & BLACK
L=35,HEADLAMP- LED & BLACK
85271AHOSE, HEADLAMP CLEANER, NO.2
L=50
L=50,HEADLAMP- LED & WITH(*AHB) & BLACK
L=50,HEADLAMP- LED & BLACK
85271BHOSE, HEADLAMP CLEANER, NO.3
L=360
L=360,HEADLAMP- LED & WITH(*AHB) & BLACK
L=360,HEADLAMP- LED & BLACK
85271CHOSE, HEADLAMP CLEANER, NO.4
L=1550
L=1550,HEADLAMP- LED & WITH(*AHB) & BLACK
L=1550,HEADLAMP- LED & BLACK
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85353COVER, HEADLAMP WASHER, RH
85354COVER, HEADLAMP WASHER, LH
85361CBRACKET, WASHER
85362BRACKET, WASHER, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
9007590006
main90075-90006
9007590508
main90075-90508
9007591002
main90075-91002
9016750063
main90167-50063
24 parts on this diagram · 1 diagram in section
