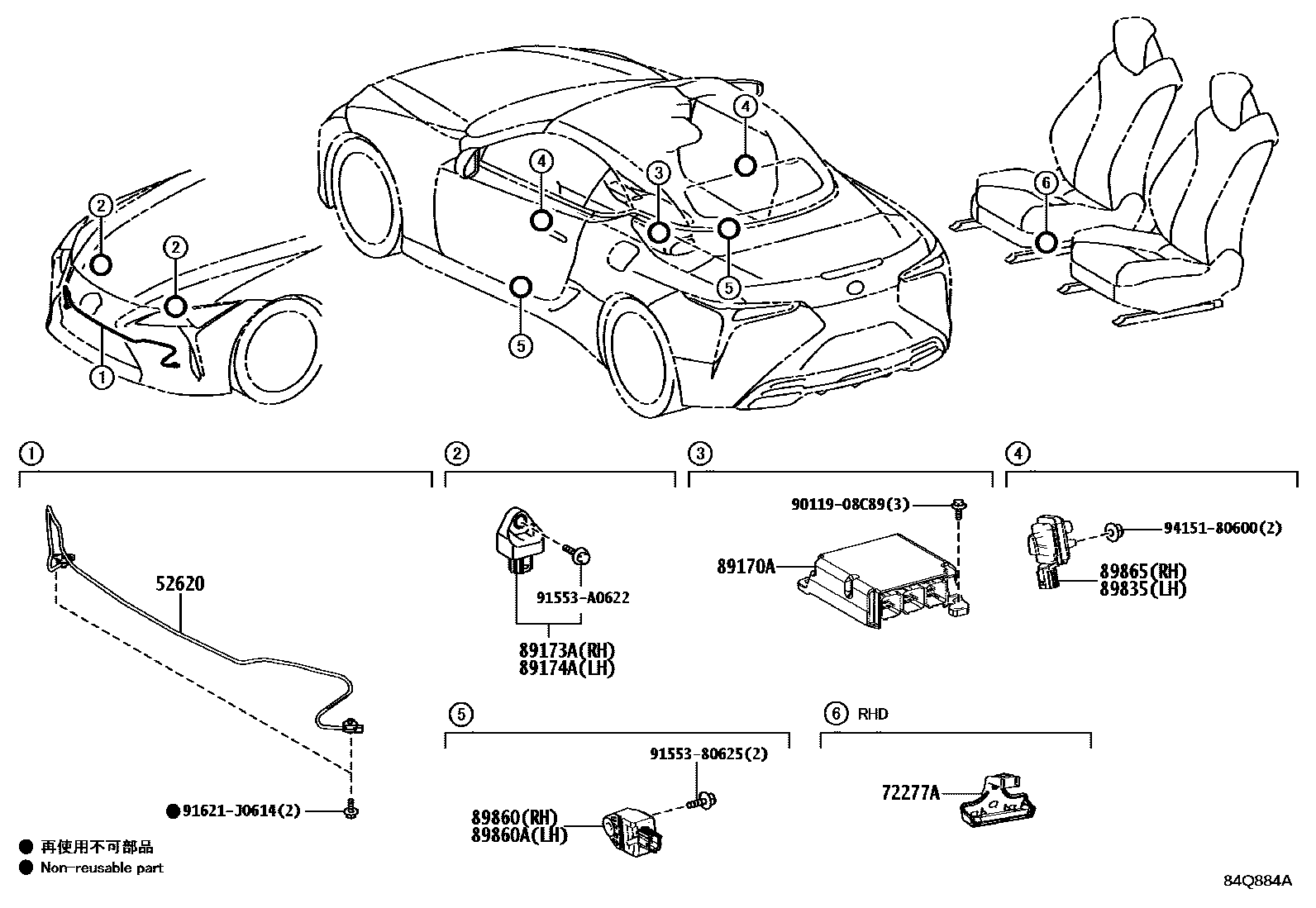

AIR BAG

0001 1 0002 1

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-11011iGWZ100,URZ100..EUR202305-202403

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47050iURZ100..ARL;URZ100..CP..(GCC,GEN);GWZ100..ARL,CHI,GCC,GEN202305-202403

89170ACOMPUTER ASSY, AIRBAG

main89170-11070iURZ100..CONV..ARL202305

main89170-11090iURZ100..CONV..(GCC,GEN)202305

main89170-11100iURZ100..LHD..CONV..EUR202305-202403

main89170-11110iURZ100..RHD..CONV..EUR202305-202403

main89170-11130iGWZ100,URZ100..CP..ARL202305

main89170-11150iGWZ100,URZ100..CP..(GCC,GEN)202305

main89170-11160iGWZ100,URZ100..LHD..CP..EUR202305-202403

main89170-11170iGWZ100,URZ100..RHD..CP..EUR202305-202403

main89170-11191iGWZ100..CHI202305

89173ASENSOR, AIRBAG, FRONT RH

main89173-19505iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

89174ASENSOR, AIRBAG, FRONT LH

main89173-19505iGWZ100,URZ100..EUR202305-202403

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-33011iGWZ100,URZ100..EUR202305-202403

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-11010iGWZ100,URZ100..EUR202305-202403

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-11010iGWZ100,URZ100..EUR202305-202403

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-33011iGWZ100,URZ100..EUR202305-202403

9011908C89

main90119-08C89

9155380625

main91553-80625

91553A0622

main91553-A0622

91621J0614

main91621-J0614

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
