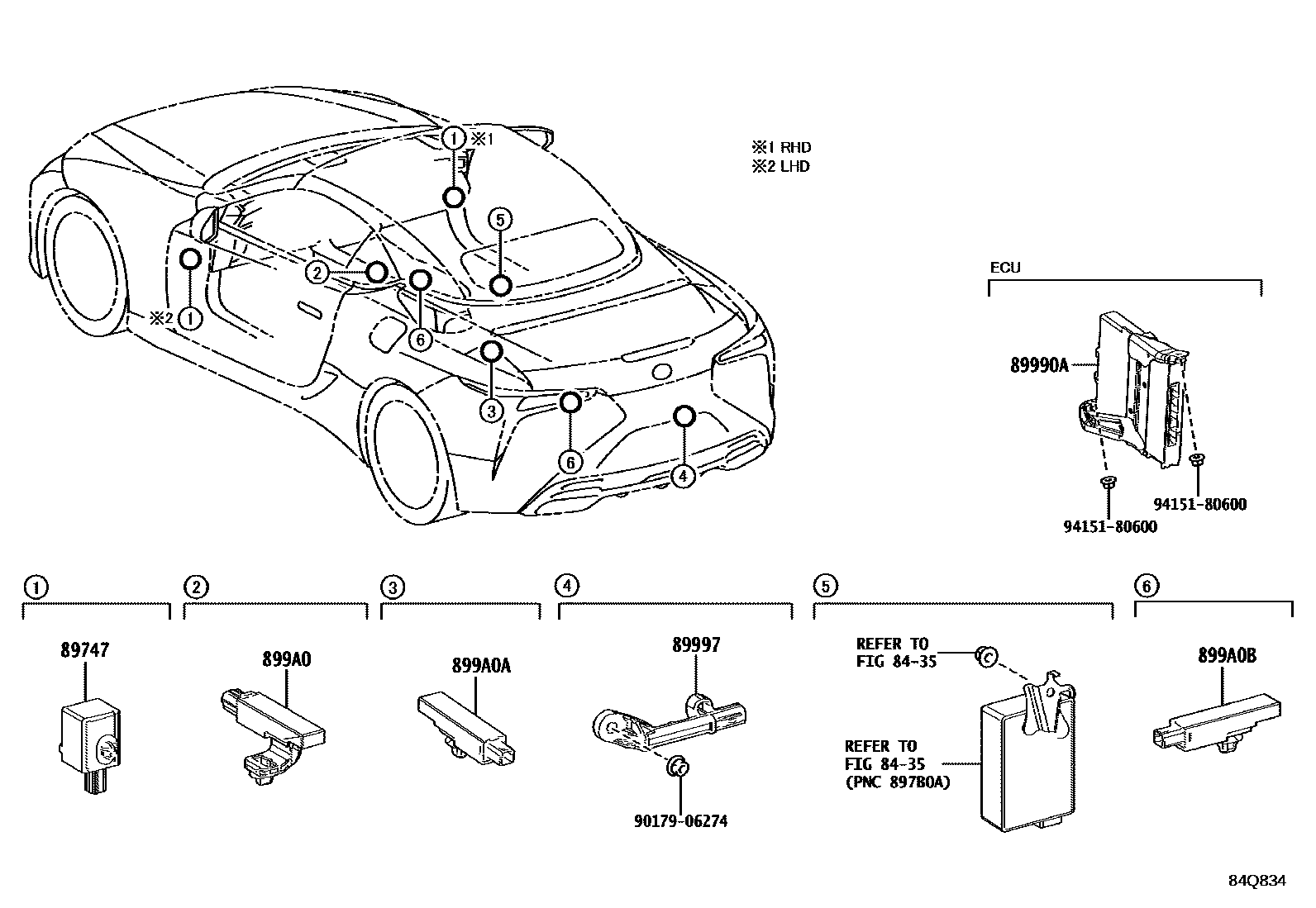

WIRELESS DOOR LOCK

0001 1 0002 1

8435

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

89990ACOMPUTER ASSY, SMART KEY

main899H0-11010iURZ100..CP..(ARL,GCC,GEN)202305

main899H0-11030iGWZ100202305-202308

main899H0-11031iGWZ100..ARL,CHI,GCC,GEN202309

main899H0-11060iURZ100..LHD..CONV;URZ100..CONV..ARL202305-202308

IRELAND SPEC

main899H0-11061supersedes 899H0-11080iURZ100..LHD..CONV..EUR202309-202403

IRELAND SPEC

main899H0-11020iURZ100..CP..ARL202305-202410

INDONESIA SPEC

main899H0-11050iGWZ100..CHI202305-202410

CARD KEY-WITHOUT & WITH(DIGITAL KEY)

main899H0-11070iURZ100..CONV..ARL202305

INDONESIA SPEC

main899H0-11100iGWZ100..ARL202410

INDONESIA SPEC

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGWZ100,URZ100..EUR202305-202403

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-11010iGWZ100,URZ100..EUR202305-202403

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iGWZ100,URZ100..EUR202305-202403

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iGWZ100,URZ100..EUR202305-202403

9017906274

main90179-06274

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section
