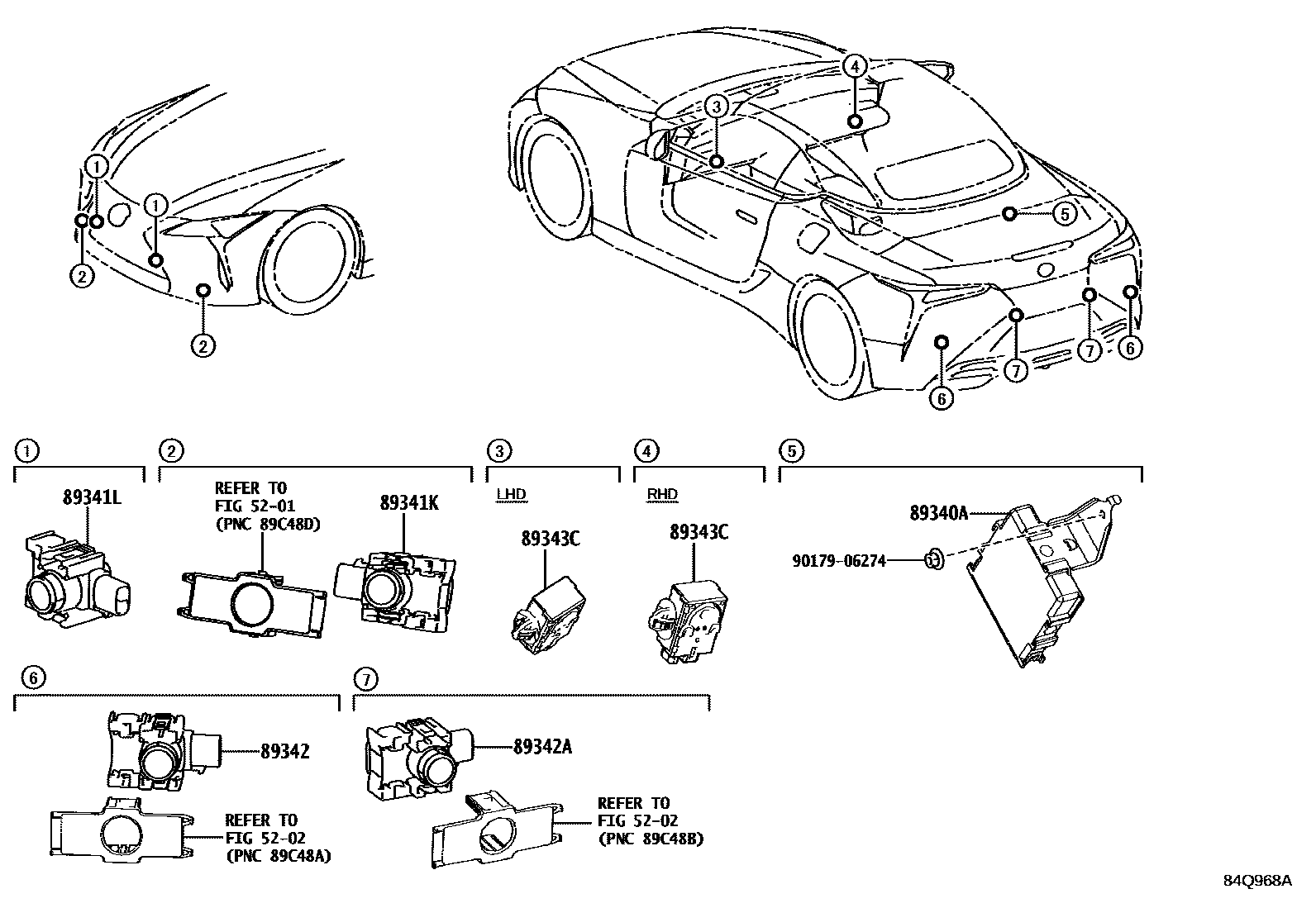

CLEARANCE & BACK SONAR

5201

5202

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-11020iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-11010-A0×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

WHITE NOVA GF.,083

main89341-11010-A1×2iGWZ100..CHI;URZ100..ARL,GCC,GEN202309-202410

HAKUJI 2,094

main89341-11010-B2×2iGWZ100,URZ100..EUR202305-202403

SONIC TITANIUM,1J7

main89341-11010-B3×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

SONIC IRIDIUM,1L2

main89341-11010-B4×2iGWZ100,URZ100..EUR202305-202403

SONIC CHROME,1L1

main89341-11010-C1×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

GRAPHITE BLACK GF.,223

main89341-11010-D1×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

RADIANT RED CONTRAST LAYE,3T5

main89341-11010-E2×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202508

SONIC COPPER,4Y5

main89341-11010-F0×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202508

NAPLES YELLOW,5C1

main89341-11010-G0×2iGWZ100,URZ100..EUR202305-202403

TERRANE KHAKI M.M.,6X4

main89341-11010-J2×2iGWZ100,URZ100..EUR202305-202403

HEAT BLUE CONTRAST LAYERI,8X1

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-11020×2iGWZ100,URZ100..EUR202305-202403

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-11010-A0×2iGWZ100,URZ100..EUR202305-202403

WHITE NOVA GF.,083

main89341-11010-A1×2iGWZ100..CHI;URZ100..ARL,GCC,GEN202309-202410

HAKUJI 2,094

main89341-11010-B2×2iGWZ100,URZ100..EUR202305-202403

SONIC TITANIUM,1J7

main89341-11010-B3×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

SONIC IRIDIUM,1L2

main89341-11010-B4×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

SONIC CHROME,1L1

main89341-11010-C1×2iGWZ100,URZ100..EUR202305-202403

GRAPHITE BLACK GF.,223

main89341-11010-D1×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

RADIANT RED CONTRAST LAYE,3T5

main89341-11010-E2×2iGWZ100,URZ100..EUR202305-202403

SONIC COPPER,4Y5

main89341-11010-F0×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202508

NAPLES YELLOW,5C1

main89341-11010-G0×2iGWZ100,URZ100..EUR202305-202403

TERRANE KHAKI M.M.,6X4

main89341-11010-J2×2iGWZ100,URZ100..EUR202305-202403

HEAT BLUE CONTRAST LAYERI,8X1

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-11010-A0×2iGWZ100,URZ100..EUR202305-202403

WHITE NOVA GF.,083

main89341-11010-A1×2iURZ100..EUR;GWZ100..RHD..EUR202309-202403

HAKUJI 2,094

main89341-11010-B2×2iGWZ100,URZ100..EUR202305-202403

SONIC TITANIUM,1J7

main89341-11010-B3×2iGWZ100,URZ100..EUR202305-202403

SONIC IRIDIUM,1L2

main89341-11010-B4×2iGWZ100,URZ100..EUR202305-202403

SONIC CHROME,1L1

main89341-11010-C1×2iGWZ100,URZ100..EUR202305-202403

GRAPHITE BLACK GF.,223

main89341-11010-D1×2iGWZ100,URZ100..EUR202305-202403

RADIANT RED CONTRAST LAYE,3T5

main89341-11010-E2×2iGWZ100,URZ100..EUR202305-202403

SONIC COPPER,4Y5

main89341-11010-F0×2iGWZ100,URZ100..EUR202305-202403

NAPLES YELLOW,5C1

main89341-11010-G0×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

TERRANE KHAKI M.M.,6X4

main89341-11010-J2×2iGWZ100,URZ100..EUR202305-202403

HEAT BLUE CONTRAST LAYERI,8X1

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iGWZ100,URZ100..EUR202305-202403

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
