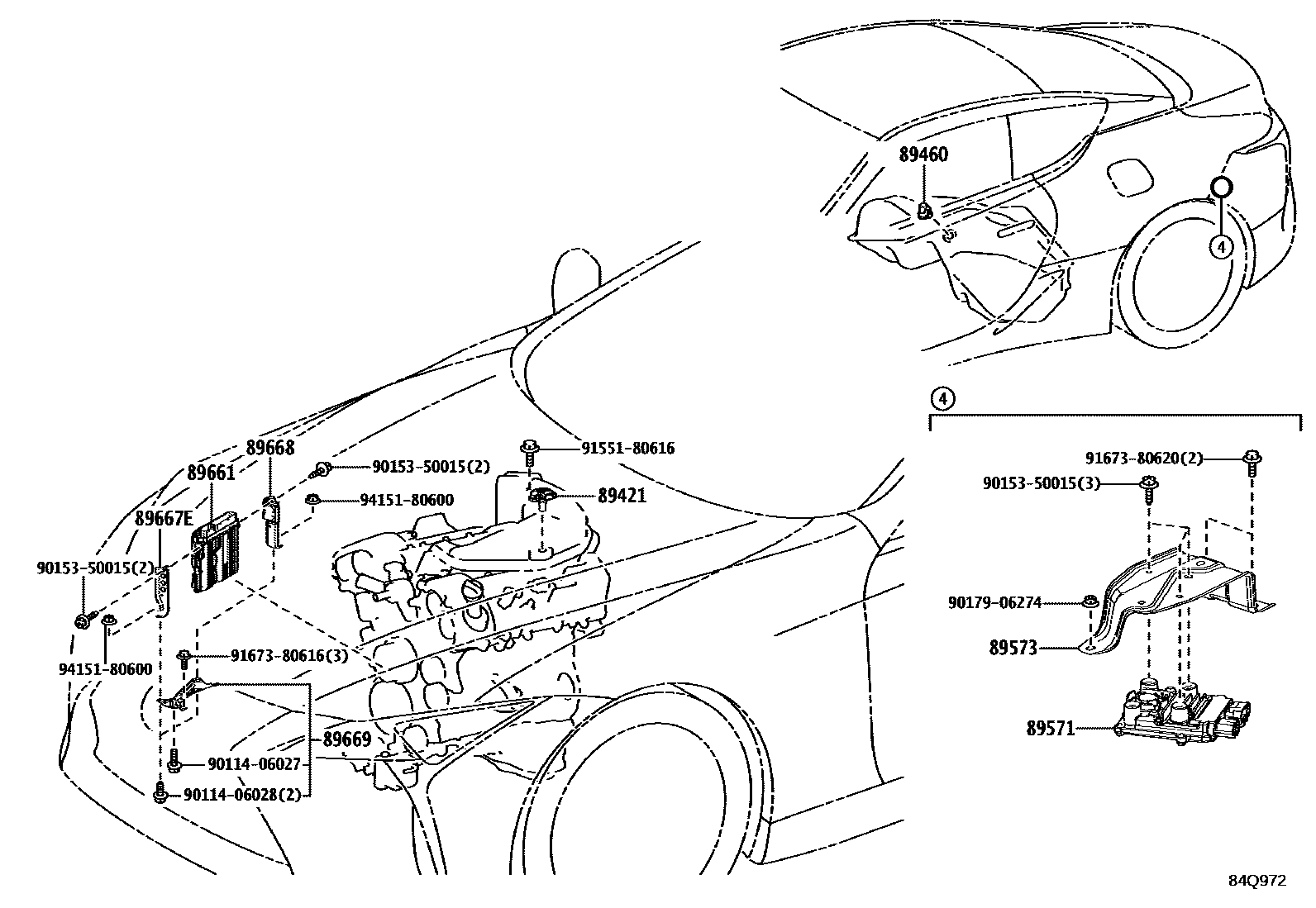

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iGWZ100..ARL,CHI,GCC,GEN202305-202403

89460SENSOR ASSY, VAPOR PRESSURE

main89461-48020iGWZ100..CHI202305

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iGWZ100..ARL,CHI,GCC,GEN202305-202403

main89571-58020iURZ100..ARL,GCC,GEN202305-202403

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-11010iGWZ100,URZ100..EUR202305-202403

89661COMPUTER, ENGINE CONTROL

main89661-11040iGWZ100..GCC202305

DENSO

main89661-11260iURZ100..CP..GEN202305

DENSO,SINGAPORE SPEC

main89661-11260iURZ100..CP..EUR202305-202403

DENSO

main89661-11270iURZ100..CP..ARL202305

DENSO,KUWAIT SPEC

main89661-11270iURZ100..CP..ARL202305

DENSO

main89661-11280iURZ100..CP..GEN202305

DENSO,BRUNEI SPEC

main89661-11280iURZ100..CP..GEN202305

DENSO,PHILIPPINE SPEC

main89661-11280iURZ100..CP..GCC202305

DENSO

main89661-11280iURZ100..CP..GCC202305

DENSO,MALAYSIA SPEC

main89661-11320iURZ100..CONV..EUR202305-202403

DENSO

main89661-11320iURZ100..CONV..GEN202305

DENSO,SINGAPORE SPEC

main89661-11330iURZ100..CONV..GCC202305

DENSO,ARGENTINA SPEC

main89661-11330iURZ100..CONV..ARL202305

DENSO

main89661-11330iURZ100..CONV..ARL202305

DENSO,KUWAIT SPEC

main89661-11340iURZ100..CONV..GEN202305

DENSO

main89661-11340iURZ100..CONV..GCC202305

DENSO,BRUNEI SPEC

main89661-11340iURZ100..CONV..GCC202305

DENSO,INDONESIA SPEC

main89661-11340iURZ100..CONV..GCC202305

DENSO,MALAYSIA SPEC

main89661-11340iURZ100..CONV..GCC202305

DENSO,PHILIPPINE SPEC

main89661-11360iGWZ100..CHI202305

DENSO

main89661-11580iGWZ100..EUR202305-202403

DENSO

main89661-11590iGWZ100..ARL202305

DENSO,KUWAIT SPEC

main89661-11590iGWZ100..GEN202305

DENSO

main89661-11590iGWZ100..GEN202305

DENSO,ARGENTINA SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11010iURZ100..LHD..EUR202305-202403

main89667-11020iURZ100..RHD..EUR202305-202403

main89667-11030iGWZ100..EUR202305-202403

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11010iURZ100..LHD..EUR202305-202403

main89668-11020iURZ100..ARL202305-202403

main89668-11030iGWZ100..EUR202305-202403

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11010iURZ100..LHD..EUR202305-202403

main89669-11020iURZ100..RHD..EUR202305-202403

main89669-11030iGWZ100..EUR202305-202403

9011406027

main90114-06027

9011406028

main90114-06028

9015350015

main90153-50015

9017906274

main90179-06274

9155180616

main91551-80616

9167380616

main91673-80616

9167380620

main91673-80620

9415180600

main94151-80600

16 parts on this diagram · 3 diagrams in section
