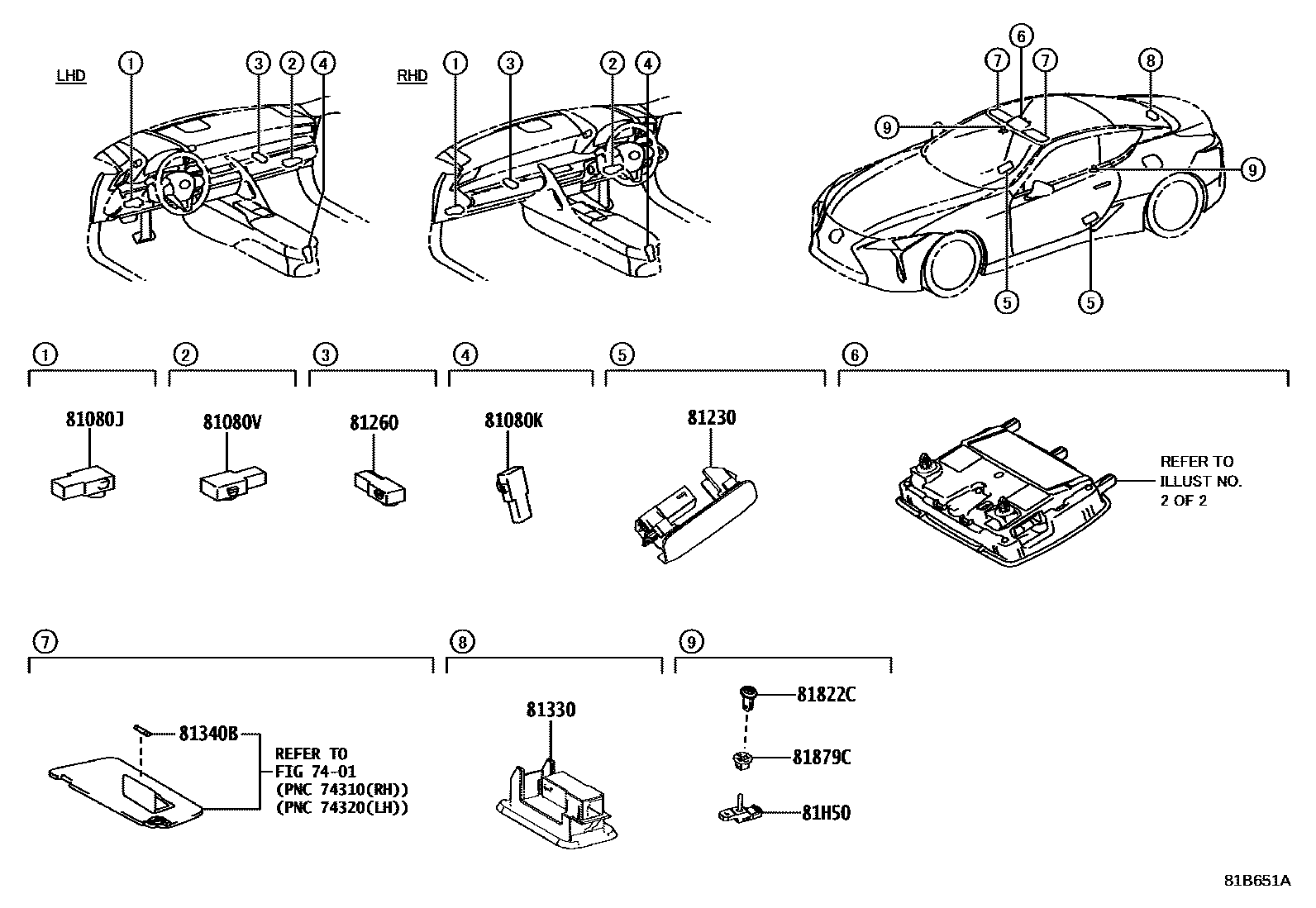

INTERIOR LAMP

0001 1 0002 1

7401

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33310iGWZ100,URZ100..EUR¥1,260202305-202403

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-30170iGWZ100,URZ100..EUR¥920202305-202403

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33310iGWZ100,URZ100..EUR¥1,260202305-202403

81230LAMP ASSY, COURTESY

main81230-11030iGWZ100,URZ100..EUR¥1,090202305-202403

81260LAMP ASSY, GLOVE BOX

main81080-33290iGWZ100,URZ100..EUR¥920202305-202403

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN¥1,090202305-202403

81340BBULB (FOR VANITY LAMP)

main90981-14014iGWZ100,URZ100..EUR¥140202305-202403

12V 2W

81822CCOVER, INDICATOR LAMP

main81822-11010iGWZ100,URZ100..EUR¥80202305-202403

81879CBRACKET, INDICATOR LAMP

main81879-50020iGWZ100,URZ100..ARL,CHI,GCC,GEN¥110202305-202403

81H50LAMP ASSY, INDICATOR

main81850-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN¥1,130202305-202403

11 parts on this diagram · 2 diagrams in section
