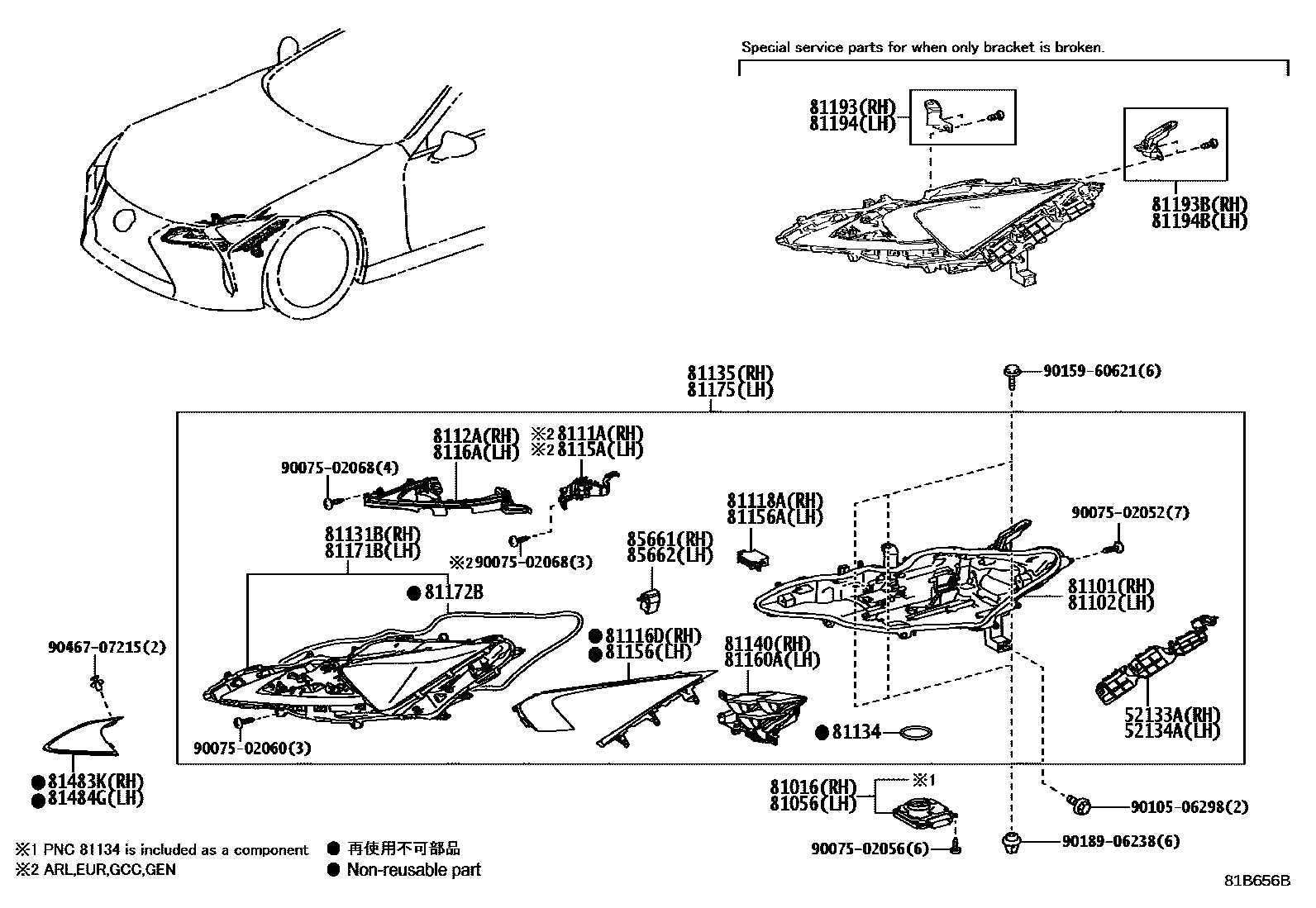

HEADLAMP

52133ABRACKET, FRONT BUMPER, RH

main52133-11020iGWZ100,URZ100..EUR202305-202403

52134ABRACKET, FRONT BUMPER, LH

main52134-11030iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1

main81016-11050iGWZ100,URZ100..ARL,GCC,GEN202305-202403

main81016-11060iGWZ100..CHI202305

81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1

main81056-11050iGWZ100,URZ100..ARL,GCC,GEN202305-202403

main81056-11060iGWZ100..CHI202305

81101HOUSING SUB-ASSY, HEADLAMP, RH

main81101-11011iGWZ100,URZ100..EUR202305-202403

81102HOUSING SUB-ASSY, HEADLAMP, LH

main81102-11011iGWZ100,URZ100..EUR202305-202403

81116DRIM, HEAD LAMP, RH

main81116-11150iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

main81116-11100iURZ100..EUR202309-202403

IE 24MY&HEADLAMP- LED & WITH(*AHB) & BLACK

81118ABRACKET, HEADLAMP, RH

main81118-11030iGWZ100,URZ100..EUR202305-202403

8111AUNIT, HEADLAMP CORNERING LED, RH

main8111A-11030iGWZ100,URZ100..EUR202305-202403

8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH

main8112A-11030iGWZ100,URZ100..EUR202305-202403

81131BHEAD LAMP LENS, RH

main81131-11020iGWZ100,URZ100..RHD..EUR202305-202403

main81131-11030iGWZ100,URZ100..GCC,GEN202305-202403

main81131-11060iGWZ100..CHI202305

81134GASKET, HEADLAMP

main90075-23003iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

81135UNIT ASSY, HEADLAMP, RH

main81145-11140iGWZ100,URZ100..GCC,GEN202305

main81145-11160iGWZ100..CHI202305

main81145-11080iGWZ100..RHD..EUR202309-202403

IE 24MY&HEADLAMP- LED & WITH(*AHB) & BLACK

main81145-11090iURZ100..CONV..GEN202309-202409

IE 24MY&HEADLAMP- LED & WITH(*AHB) & BLACK

main81145-11110iGWZ100..CHI202309-202410

IE 24MY

81140UNIT ASSY, HEADLAMP LED, RH

main81140-11020iGWZ100,URZ100..ARL202305-202403

main81140-11030iGWZ100,URZ100..CHI,GCC,GEN202305-202403

81156RIM, HEADLAMP, LH

main81156-11150iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

main81156-11100iGWZ100,URZ100..EUR202305-202403

PERSONAL PACKAGE&HEADLAMP- LED & BLACK

81156ABRACKET, HEADLAMP, LH

main81118-11030iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

8115AUNIT, HEADLAMP CORNERING LED, LH

main8115A-11030iGWZ100,URZ100..EUR202305-202403

81160AUNIT ASSY, HEADLAMP LED, LH

main81160-11020iGWZ100,URZ100..RHD..EUR202305-202403

main81160-11030iGWZ100,URZ100..CHI,GCC,GEN202305-202403

8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH

main8116A-11030iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

81171BHEAD LAMP LENS, LH

main81171-11020iGWZ100,URZ100..ARL202305-202403

main81171-11030iGWZ100,URZ100..GCC,GEN202305-202403

main81171-11060iGWZ100..CHI202305

81172BGASKET, HEADLAMP LENS

main81132-48C30iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

81175UNIT ASSY, HEADLAMP, LH

main81185-11140iGWZ100,URZ100..GCC,GEN202305

main81185-11160iGWZ100..CHI202305

main81185-11080iGWZ100..RHD..EUR202305-202403

PERSONAL PACKAGE&HEADLAMP- LED & WITH(*AHB) & BLACK

main81185-11090iURZ100..CONV..GCC;GWZ100,URZ100..CP..(GCC,GEN)202305

PERSONAL PACKAGE&HEADLAMP- LED & WITH(*AHB) & BLACK

main81185-11110iGWZ100..CHI202309-202410

IE 24MY

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-11020iGWZ100,URZ100..EUR202305-202403

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-11020iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

81483KCOVER, DAYTIME RUNNING LAMP, RH

main81483-11010-A0iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

WHITE NOVA GF.,083

main81483-11010-B2iGWZ100,URZ100..EUR202305-202409

SONIC TITANIUM,1J7

main81483-11010-B3iGWZ100,URZ100..EUR202305-202403

SONIC IRIDIUM,1L2

main81483-11010-B4iGWZ100,URZ100..EUR202305-202403

SONIC CHROME,1L1

main81483-11010-C1iGWZ100,URZ100..EUR202305-202403

GRAPHITE BLACK GF.,223

main81483-11010-D1iGWZ100,URZ100..EUR202305-202403

RADIANT RED CONTRAST LAYE,3T5

main81483-11010-E2iGWZ100,URZ100..EUR202305-202508

SONIC COPPER,4Y5

main81483-11010-F0iGWZ100,URZ100..EUR202305-202508

NAPLES YELLOW,5C1

main81483-11010-G0iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

TERRANE KHAKI M.M.,6X4

main81483-11010-J2iGWZ100,URZ100..EUR202305-202403

HEAT BLUE CONTRAST LAYERI,8X1

main81483-11010-A2iURZ100..CONV..GEN202309-202409

IE 24MY,HAKUJI 2,094

81484GCOVER, DAYTIME RUNNING LAMP, LH

main81484-11010-A0iGWZ100,URZ100..EUR202305-202403

WHITE NOVA GF.,083

main81484-11010-B2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202409

SONIC TITANIUM,1J7

main81484-11010-B3iGWZ100,URZ100..EUR202305-202403

SONIC IRIDIUM,1L2

main81484-11010-B4iGWZ100,URZ100..EUR202305-202403

SONIC CHROME,1L1

main81484-11010-C1iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

GRAPHITE BLACK GF.,223

main81484-11010-D1iGWZ100,URZ100..EUR202305-202403

RADIANT RED CONTRAST LAYE,3T5

main81484-11010-E2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202508

SONIC COPPER,4Y5

main81484-11010-F0iGWZ100,URZ100..EUR202305-202508

NAPLES YELLOW,5C1

main81484-11010-G0iGWZ100,URZ100..EUR202305-202403

TERRANE KHAKI M.M.,6X4

main81484-11010-J2iGWZ100,URZ100..EUR202305-202403

HEAT BLUE CONTRAST LAYERI,8X1

main81484-11010-A2iURZ100..CONV..GEN202309-202409

IE 24MY,HAKUJI 2,094

85661MOTOR, HEADLAMP LEVELING, RH

main85661-48050iGWZ100,URZ100..EUR202305-202403

85662MOTOR, HEADLAMP LEVELING, LH

main85661-48050iGWZ100,URZ100..EUR202305-202403

9007502052

main90075-02052

9007502056

main90075-02056

9007502060

main90075-02060

9007502068

main90075-02068

9010506298

main90105-06298

9015960621

main90159-60621

9018906238

main90189-06238

9046707215

main90467-07215

38 parts on this diagram · 1 diagram in section
