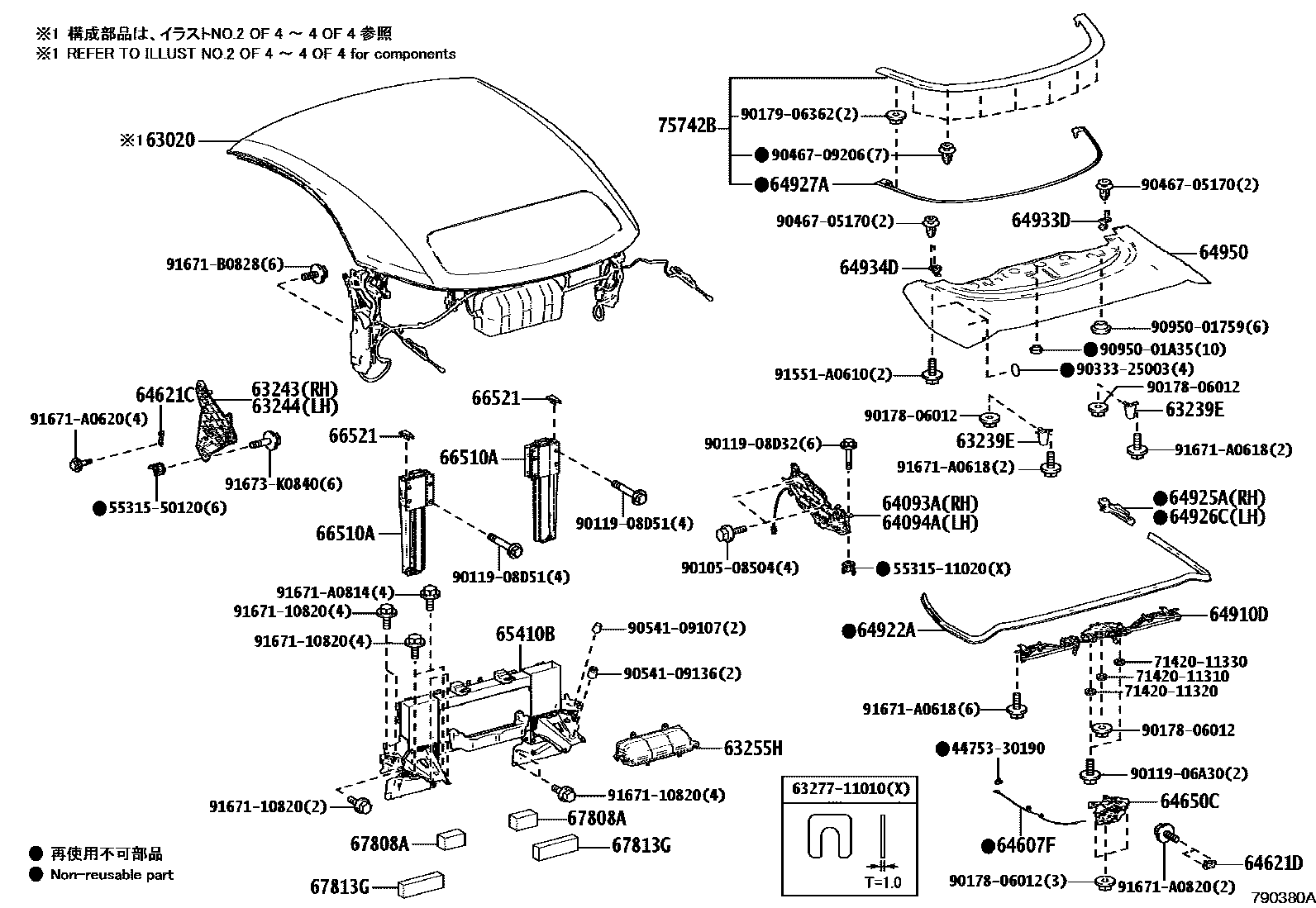

CONVERTIBLE PARTS

0001 1 0002 1 0003 1 0004 1

63020UNIT ASSY, REMOVABLE ROOF

main63020-11010-20iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK / CREAM,TRIM01

main63020-11010-21iURZ100..CONV..EUR202305-202403

BLACK / BLACK,TRIM21,31

main63020-11010-22iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK / CARAMEL,TRIM41

main63020-11010-D0iURZ100..CONV..EUR202305-202403

BORDEAUX/BLACK,TRIM32

main63020-11010-E4iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BEIGE / CARAMEL,TRIM42

main63020-11010-J4iURZ100..CONV..EUR202305-202403

BLUE / CREAM,TRIM02

main63020-11010-J6iURZ100..CONV..EUR202305-202403

BLUE/BLACK,TRIM22

main63020-11010-J7iURZ100..CONV..EUR202309-202409

BLUE,TRIM8#

63239ESTOPPER, REMOVABLE ROOF PANEL

main63239-11010iURZ100..CONV..EUR202305-202403

63243BRACKET, REMOVABLE ROOF HOUSING, NO.2 RH

main63243-11010iURZ100..CONV..EUR202305-202403

63244BRACKET, REMOVABLE ROOF HOUSING, NO.2 LH

main63244-11010iURZ100..CONV..EUR202305-202403

63255HCOVER, CONVERTIBLE ROOF MOTOR

main63255-11010iURZ100..CONV..EUR202305-202403

64093AHINGE SUB-ASSY, TONNEAU COVER, NO.1

main64093-11020iURZ100..CONV..EUR202305-202403

64094AHINGE SUB-ASSY, TONNEAU COVER, NO.2

main64094-11020iURZ100..CONV..(ARL,GCC,GEN)202305-202403

64607FCABLE SUB-ASSY, TONNEAU COVER LOCK CONTROL

main64607-11050iURZ100..CONV..(ARL,GCC,GEN)202305-202403

64621CSTRIKER, TONNEAU COVER HINGE LOCK

main64621-11030iURZ100..CONV..EUR202305-202403

64621DSTRIKER, TONNEAU COVER LOCK

main64621-11020iURZ100..CONV..EUR202305-202403

64650CCLOSER ASSY, TONNEAU COVER

main64650-11010iURZ100..CONV..EUR202305-202403

64910DCLOSER ASSY, ACCESS FLAP

main64910-11010iURZ100..CONV..EUR202305-202403

64922AWEATHERSTRIP, TONNEAU COVER, FRONT

main64922-11010iURZ100..CONV..EUR202305-202403

64925AWEATHERSTRIP, TONNEAU COVER, REAR RH

main64925-11010iURZ100..CONV..EUR202305-202403

64926CWEATHERSTRIP, TONNEAU COVER, REAR LH

main64926-11010iURZ100..CONV..EUR202305-202403

64927AWEATHERSTRIP, TONNEAU COVER TAIL GATE

main64927-11010iURZ100..CONV..EUR202305-202403

64933DBRACKET, TONNEAU COVER HOLDER, RH

main64933-11010iURZ100..CONV..EUR202305-202403

64934DBRACKET, TONNEAU COVER HOLDER, LH

main64934-11010iURZ100..CONV..EUR202305-202403

64950PANEL ASSY, TONNEAU COVER

main64950-11020iURZ100..CONV..EUR202305-202403

65410BFRAME ASSY, REAR BODY

main65410-11010iURZ100..CONV..EUR202305-202403

66510ABAR ASSY, ROLL OVER

main66510-11010iURZ100..CONV..(ARL,GCC,GEN)202305-202403

66521COVER, ROLL OVER BAR

main66521-11010iURZ100..CONV..(ARL,GCC,GEN)202305-202403

67808ACOVER SUB-ASSY, REAR BODY SERVICE HOLE

main67808-11010iURZ100..CONV..EUR202305-202403

67813GSHEET, REAR BODY SILENCER

main67813-11010iURZ100..CONV..EUR202305-202403

75742BMOULDING, TONNEAU COVER

main75742-11010iURZ100..CONV..EUR202305-202403

4475330190CLAMP, VACUUM RESERVOIR, NO.2

main44753-30190

5531511020SUPPORT, INSTRUMENT PANEL

main55315-11020

5531550120SUPPORT, INSTRUMENT PANEL

main55315-50120

6327711010SHIM, SLIDING ROOF RAIL

main63277-11010

7142011310CUSHION ASSY, FRONT SEAT, LH

main71420-11310

7142011320CUSHION ASSY, FRONT SEAT, LH

main71420-11320

7142011330CUSHION ASSY, FRONT SEAT, LH

main71420-11330

9010508504

main90105-08504

9011906A30

main90119-06A30

9011908D32

main90119-08D32

9011908D51

main90119-08D51

9017806012

main90178-06012

9017906362

main90179-06362

9033325003

main90333-25003

9046705170

main90467-05170

9046709206

main90467-09206

9054109107

main90541-09107

9054109136

main90541-09136

9095001759

main90950-01759

9095001A35

main90950-01A35

91551A0610

main91551-A0610

9167110820

main91671-10820

91671A0618

main91671-A0618

91671A0620

main91671-A0620

91671A0814

main91671-A0814

91671A0820

main91671-A0820

91671B0828

main91671-B0828

91673K0840

main91673-K0840

53 parts on this diagram · 4 diagrams in section
