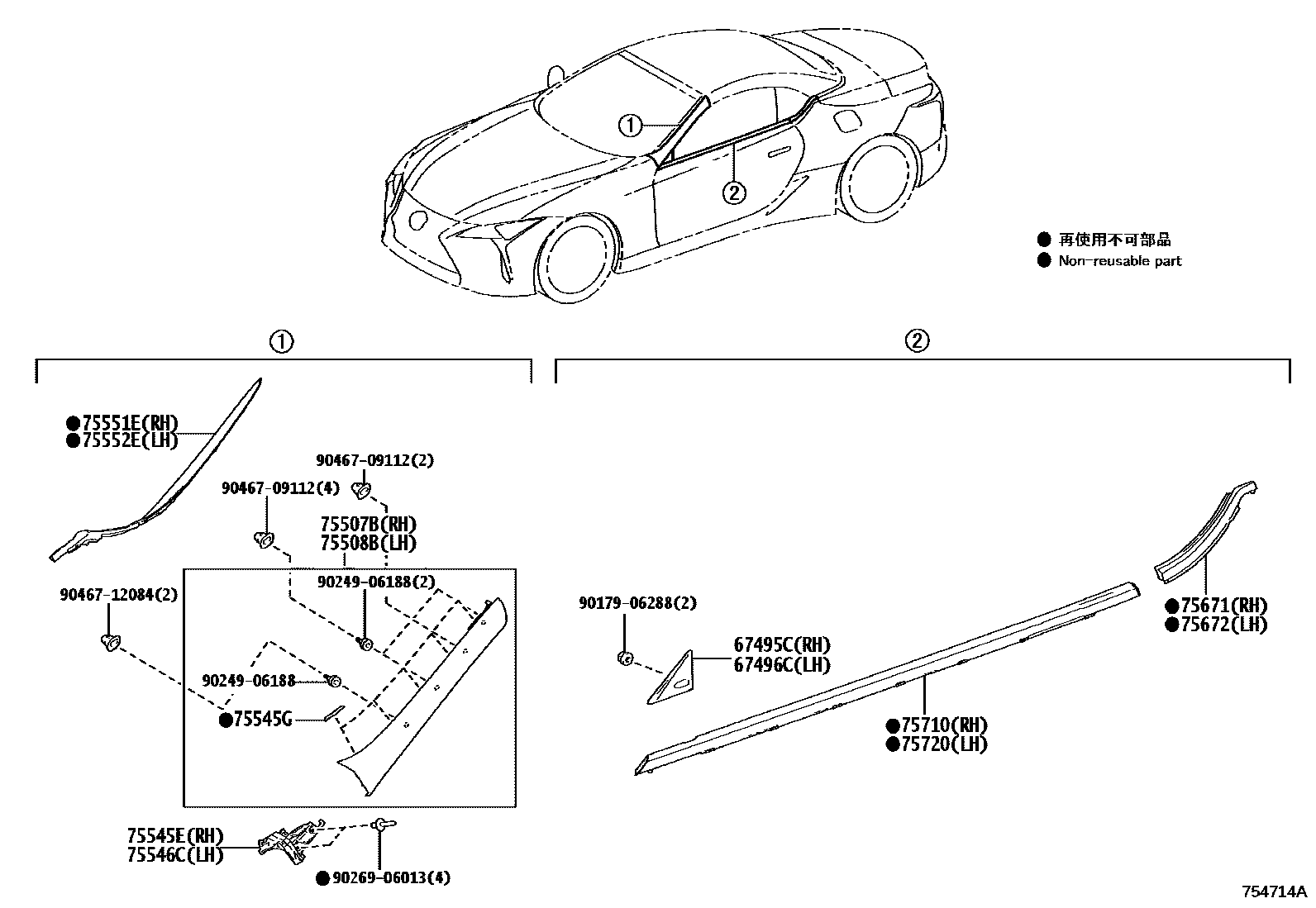

SIDE MOULDING

0001 1 0002 1 0003 1 0004 1

67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-11010iGWZ100,URZ100..EUR202305-202403

75507BGARNISH SUB-ASSY, ROOF SIDE RAIL, RH

main62403-11010-A1×2iGWZ100,URZ100..CP..EUR202305-202403

ARMENIA SPEC& "S+ PACKAGE",WHITE NOVA GF.,083

main62403-11010-B2×2iGWZ100,URZ100..CP..EUR202305-202403

RUSSIA SPEC& "S+ PACKAGE",SONIC TITANIUM,1J7

main62403-11010-B3iGWZ100,URZ100..CP..EUR202403

SONIC IRIDIUM,1L2

main62403-11010-B4×2iGWZ100,URZ100..CP..EUR202305-202403

ARMENIA SPEC& "S+ PACKAGE",SONIC CHROME,1L1

main62403-11010-C1iGWZ100,URZ100..CP..EUR202403

GRAPHITE BLACK GF.,223

main62403-11010-D1×2iGWZ100,URZ100..CP..EUR202305-202403

RUSSIA SPEC&PERSONAL PACKAGE,RADIANT RED CONTRAST LAYE,3T5

main62403-11010-E2×2iGWZ100,URZ100..CP..EUR202305-202403

ARMENIA SPEC& "S+ PACKAGE",SONIC COPPER,4Y5

main62403-11010-F0×2iGWZ100,URZ100..CP..EUR202305-202403

ARMENIA SPEC& "S+ PACKAGE",NAPLES YELLOW,5C1

main62403-11010-G0×2iGWZ100,URZ100..CP..EUR202305-202403

RUSSIA SPEC& "S+ PACKAGE",TERRANE KHAKI M.M.,6X4

main62403-11010-J2×2iGWZ100,URZ100..CP..EUR202305-202403

RUSSIA SPEC& "S+ PACKAGE",HEAT BLUE CONTRAST LAYERI,8X1

main62403-11020-A0iURZ100..CONV..EUR202305-202403

WHITE NOVA GF.,083

main62403-11020-A1iURZ100..CONV..EUR202309-202403

HAKUJI 2,094

main62403-11020-B2iURZ100..CONV..(ARL,GCC,GEN)202305-202409

SONIC TITANIUM,1J7

main62403-11020-B3iURZ100..CONV..(ARL,GCC,GEN)202305

SONIC IRIDIUM,1L2

main62403-11020-B4iURZ100..CONV..(ARL,GCC,GEN)202305

SONIC CHROME,1L1

main62403-11020-C1iURZ100..CONV..(ARL,GCC,GEN)202305

GRAPHITE BLACK GF.,223

main62403-11020-D0iURZ100..CONV..EUR202305-202403

RADIANT RED CONTRAST LAYE,3T5

main62403-11020-E1iURZ100..CONV..(ARL,GCC,GEN)202305-202508

SONIC COPPER,4Y5

main62403-11020-F0iURZ100..CONV..EUR202305-202403

NAPLES YELLOW CONTRAST LA,5C1

main62403-11020-G0iURZ100..CONV..EUR202305-202403

TERRANE KHAKI M.M.,6X4

main62403-11020-J2iURZ100..CONV..(ARL,GCC,GEN)202305

HEAT BLUE CONTRAST LAYERI,8X1

main62403-11010-A2iURZ100..CP..EUR202309-202403

AZERBAIJAN SPEC& IE 24MY,HAKUJI 2,094

75508BGARNISH SUB-ASSY, ROOF SIDE RAIL, LH

main62404-11010-A1iGWZ100,URZ100..CP..EUR202403

WHITE NOVA GF.,083

main62404-11010-B2iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202409

SONIC TITANIUM,1J7

main62404-11010-B3×2iGWZ100,URZ100..CP..EUR202305-202403

ARMENIA SPEC& "S+ PACKAGE",SONIC IRIDIUM,1L2

main62404-11010-B4iGWZ100,URZ100..CP..EUR202403

SONIC CHROME,1L1

main62404-11010-C1×2iGWZ100,URZ100..CP..EUR202305-202403

KAZAKHSTAN SPEC& "S+ PACKAGE",GRAPHITE BLACK GF.,223

main62404-11010-D1×2iGWZ100,URZ100..CP..EUR202305-202403

RUSSIA SPEC&PERSONAL PACKAGE,RADIANT RED CONTRAST LAYE,3T5

main62404-11010-E2iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202508

SONIC COPPER,4Y5

main62404-11010-F0×2iGWZ100,URZ100..CP..EUR202305-202403

ARMENIA SPEC& "S+ PACKAGE",NAPLES YELLOW,5C1

main62404-11010-G0×2iGWZ100,URZ100..CP..EUR202305-202403

RUSSIA SPEC& "S+ PACKAGE",TERRANE KHAKI M.M.,6X4

main62404-11010-J2×2iGWZ100,URZ100..CP..EUR202305-202403

RUSSIA SPEC& "S+ PACKAGE",HEAT BLUE CONTRAST LAYERI,8X1

main62404-11020-A0iURZ100..CONV..EUR202305-202403

WHITE NOVA GF.,083

main62404-11020-A1iURZ100..CONV..EUR202309-202403

HAKUJI 2,094

main62404-11020-B2iURZ100..CONV..(ARL,GCC,GEN)202305-202409

SONIC TITANIUM,1J7

main62404-11020-B3iURZ100..CONV..EUR202305-202403

SONIC IRIDIUM,1L2

main62404-11020-B4iURZ100..CONV..EUR202305-202403

SONIC CHROME,1L1

main62404-11020-C1iURZ100..CONV..EUR202305-202403

GRAPHITE BLACK GF.,223

main62404-11020-D0iURZ100..CONV..EUR202305-202403

RADIANT RED CONTRAST LAYE,3T5

main62404-11020-E1iURZ100..CONV..(ARL,GCC,GEN)202305-202508

SONIC COPPER,4Y5

main62404-11020-F0iURZ100..CONV..EUR202305-202403

NAPLES YELLOW CONTRAST LA,5C1

main62404-11020-G0iURZ100..CONV..EUR202305-202403

TERRANE KHAKI M.M.,6X4

main62404-11020-J2iURZ100..CONV..(ARL,GCC,GEN)202305

HEAT BLUE CONTRAST LAYERI,8X1

main62404-11010-A2iGWZ100..CHI;URZ100..CP..(ARL,GCC,GEN)202309-202410

IE 24MY,HAKUJI 2,094

75545ECLIP, ROOF DRIP SIDE FINISH MOULDING, RH

main75545-11010iGWZ100,URZ100..CP..EUR202305-202403

ARMENIA SPEC& "S+ PACKAGE"

75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-11020×10iGWZ100,URZ100..CP..EUR202305-202403

ARMENIA SPEC& "S+ PACKAGE"

75546CCLIP, ROOF DRIP SIDE FINISH MOULDING, LH

main75546-11010iGWZ100,URZ100..CP..EUR202305-202403

ARMENIA SPEC& "S+ PACKAGE"

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-11010iGWZ100,URZ100..CP..EUR202305-202403

main75551-11020iURZ100..CONV..EUR202305-202403

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-11010iGWZ100,URZ100..CP..EUR202305-202403

main75552-11020iURZ100..CONV..(ARL,GCC,GEN)202305

75671MOULDING, QUARTER BELT, RH

main75671-11010iURZ100..CONV..EUR202305-202403

75672MOULDING, QUARTER BELT, LH

main75672-11010iURZ100..CONV..EUR202305-202403

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

9017906288

main90179-06288

9024906188

main90249-06188

9026906013

main90269-06013

9046709112

main90467-09112

9046712084

main90467-12084

18 parts on this diagram · 4 diagrams in section
