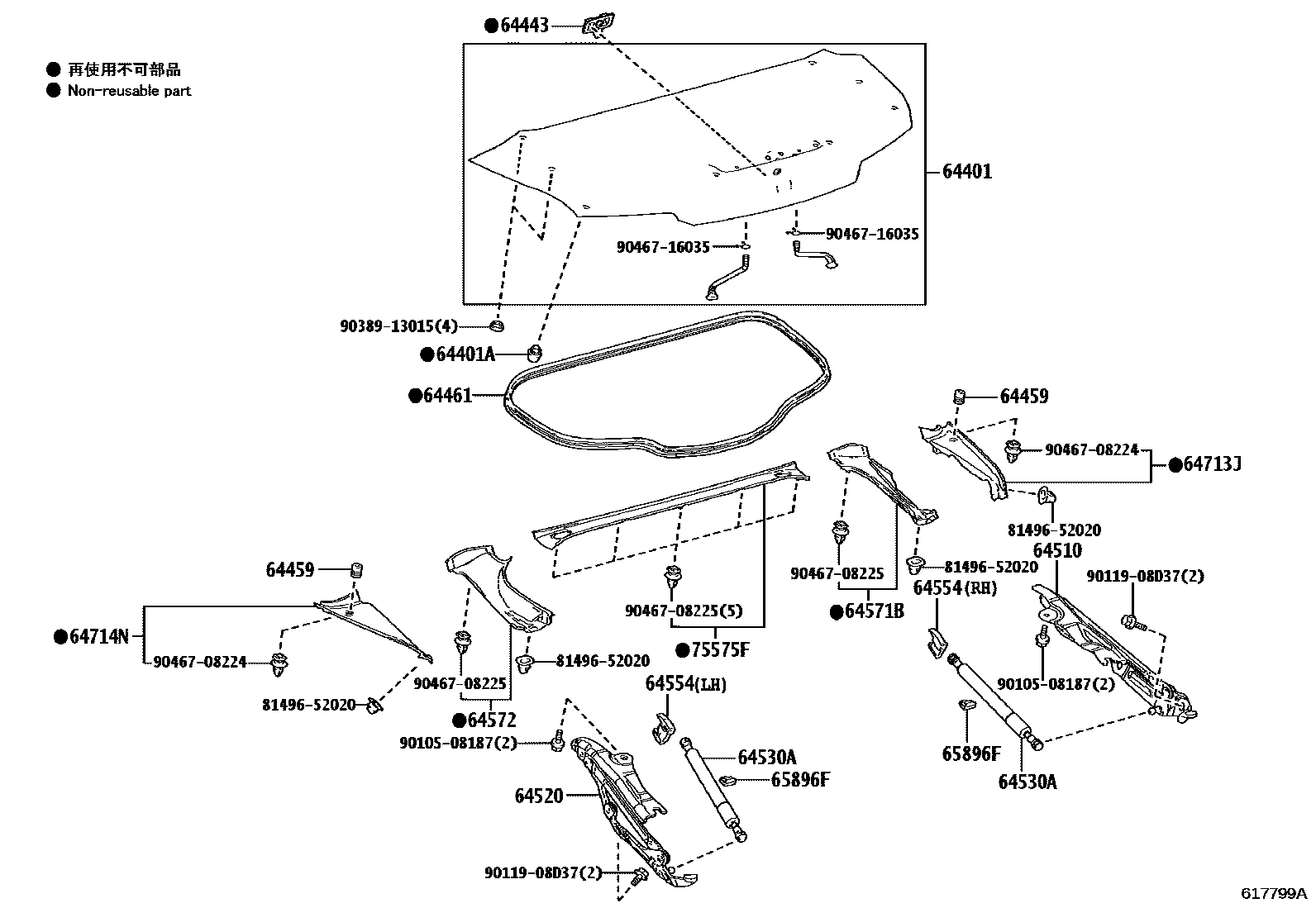

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1LUGGAGE COMPARTMENT DOOR 0002 1LUGGAGE DOOR LOCK & CABLE 0003 1LUGGAGE COMPARTMENT DOOR 0004 1LUGGAGE DOOR LOCK & CABLE

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-11900iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

main64401-11906iURZ100..CONV..(ARL,GCC,GEN)202305-202403

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09152iGWZ100,URZ100..EUR202305-202403

REAR SPOILER-WITH(ACTIVE REAR WING)

main90541-09152iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

64443HOUSING, LUGGAGE COMPARTMENT DOOR

main64443-11020-A0iGWZ100,URZ100..EUR202305-202403

WHITE NOVA GF.,083

main64443-11020-A1iURZ100..CP..EUR202305-202403

REAR SPOILER-WITH(FIXED TYPE),HAKUJI 2,094

main64443-11020-A1iURZ100..CONV..(ARL,GCC,GEN)202305-202409

HAKUJI 2,094

main64443-11020-A1iURZ100..CONV..EUR202305-202403

INDIA SPEC&REAR SPOILER-WITH(FIXED TYPE),HAKUJI 2,094

main64443-11020-B1iGWZ100,URZ100..EUR202305-202409

SONIC TITANIUM,1J7

main64443-11020-B2iGWZ100,URZ100..EUR202305-202403

SONIC IRIDIUM,1L2

main64443-11020-B3iGWZ100,URZ100..EUR202305-202403

SONIC CHROME,1L1

main64443-11020-C0iGWZ100,URZ100..EUR202305-202403

GRAPHITE BLACK GF.,223

main64443-11020-D0iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

RADIANT RED CONTRAST LAYE,3T5

main64443-11020-E0iGWZ100,URZ100..EUR202305-202508

SONIC COPPER,4Y5

main64443-11020-F0iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202508

NAPLES YELLOW CONTRAST LA,5C1

main64443-11020-G0iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

TERRANE KHAKI M.M.,6X4

main64443-11020-J0iGWZ100,URZ100..EUR202305-202403

HEAT BLUE CONTRAST LAYERI,8X1

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-15036iGWZ100,URZ100..EUR202305-202403

REAR SPOILER-WITH(ACTIVE REAR WING)

main90541-15036iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-11020iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

main64461-11030iURZ100..CONV..(ARL,GCC,GEN)202305-202403

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-11010iGWZ100,URZ100..EUR202305-202403

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-11010iGWZ100,URZ100..EUR202305-202403

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-0W180iGWZ100,URZ100..CP..EUR202305-202403

main64530-0W300iURZ100..CP..EUR;GWZ100..RHD..EUR202305-202403

REAR SPOILER-WITH(FIXED TYPE)

main64530-0W300iURZ100..CONV..(ARL,GCC,GEN)202305

64554STOPPER, LUGGAGE DOOR BALANCER

main64554-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

RH

main64554-11020iGWZ100,URZ100..EUR202305-202403

LH

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-11010iGWZ100,URZ100..CP..EUR202305-202403

REAR SPOILER-WITH(ACTIVE REAR WING)

main64571-11010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305

main64571-11030iURZ100..CONV..(ARL,GCC,GEN)202305-202403

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-11010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305

main64572-11010iGWZ100,URZ100..CP..EUR202305-202403

REAR SPOILER-WITH(ACTIVE REAR WING)

main64572-11030iURZ100..CONV..EUR202305-202403

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64713-11010iGWZ100,URZ100..CP..EUR202305-202403

REAR SPOILER-WITH(ACTIVE REAR WING)

main64713-11010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305

main64713-11030iURZ100..CONV..(ARL,GCC,GEN)202305-202403

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64714-11010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305

main64714-11010iGWZ100,URZ100..CP..EUR202305-202403

REAR SPOILER-WITH(ACTIVE REAR WING)

main64714-11030iURZ100..CONV..(ARL,GCC,GEN)202305-202403

65896FCAP, COVER TOP SET BOLT

main65896-11030iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

75575FMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-11010iGWZ100,URZ100..CP..EUR202305-202403

REAR SPOILER-WITH(ACTIVE REAR WING)

main75575-11010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305

main75575-11030iURZ100..CONV..EUR202305-202403

8149652020GUIDE, REAR COMBINATION LAMP

main81496-52020

9010508187

main90105-08187

9011908D37

main90119-08D37

9038913015

main90389-13015

9046708224

main90467-08224

9046708225

main90467-08225

9046716035

main90467-16035

22 parts on this diagram · 4 diagrams in section
