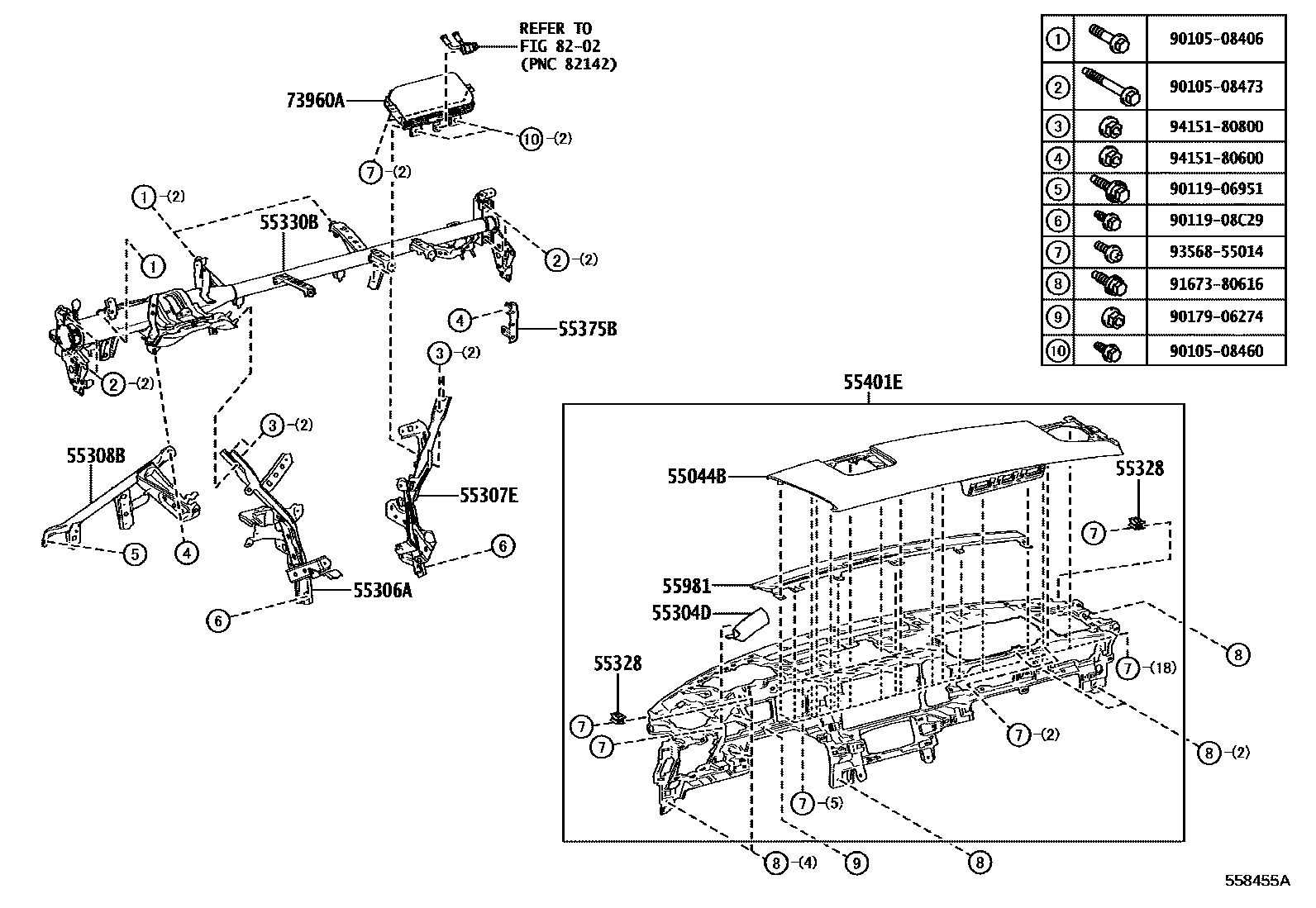

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-11010-C1iGWZ100,URZ100..LHD..EUR202305-202403

BLACK,TRIM2#,3#

main55044-11010-E1iGWZ100,URZ100..CHI,GCC,GEN202305-202403

OCHRE,TRIM4#

main55044-11010-J0iURZ100..CONV..GCC;GWZ100..CHI,GCC,GEN202305-202508

BLUE,TRIM0#

main55044-11010-J1iGWZ100..CHI;URZ100..GCC,GEN202305-202409

BLUE/OCEAN BLUE,TRIM8#

main55044-11030-C1iGWZ100,URZ100..RHD..EUR202305-202403

BLACK,TRIM2#,3#

main55044-11030-E1iGWZ100,URZ100..RHD..EUR202305-202403

OCHRE,TRIM4#

main55044-11030-J0iGWZ100,URZ100..RHD..EUR202305-202508

BLUE,TRIM0#

main55044-11030-J1iGWZ100,URZ100..RHD..EUR202305-202409

BLUE/OCEAN BLUE,TRIM8#

55304DPANEL SUB-ASSY, INSTRUMENT, MAIN

main55304-11010-C1iGWZ100,URZ100..CHI,GCC,GEN202305-202403

BLACK,TRIM2#,3#

main55304-11010-E1iGWZ100,URZ100..CHI,GCC,GEN202305-202403

OCHRE,TRIM4#

main55304-11010-J0iGWZ100,URZ100..LHD..EUR202305-202508

BLUE,TRIM0#

main55304-11010-J1iURZ100..LHD..EUR202305-202409

BLUE/OCEAN BLUE,TRIM8#

main55304-11020-C1iGWZ100,URZ100..RHD..EUR202305-202403

BLACK,TRIM2#,3#

main55304-11020-E1iGWZ100,URZ100..ARL202305-202403

OCHRE,TRIM4#

main55304-11020-J0iURZ100..ARL202305-202508

BLUE,TRIM0#

main55304-11020-J1iURZ100..ARL202305-202409

BLUE/OCEAN BLUE,TRIM8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-11030iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main55306-11040iGWZ100,URZ100..RHD..EUR202305-202403

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-11030iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main55307-11040iGWZ100,URZ100..ARL202305-202403

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-11031iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main55308-11041iGWZ100,URZ100..RHD..EUR202305-202403

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iGWZ100,URZ100..EUR202305-202403

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-11070iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main55330-11080iGWZ100,URZ100..RHD..EUR202305-202403

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-11030iGWZ100,URZ100..LHD..EUR202305-202403

main55375-11040iGWZ100,URZ100..ARL202305-202403

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-11040-C2iGWZ100,URZ100..CHI,GCC,GEN202305-202403

BLACK,TRIM2#,3#

main55401-11040-E2iGWZ100,URZ100..CHI,GCC,GEN202305-202403

OCHRE,TRIM4#

main55401-11040-J1iURZ100..CONV..GCC;GWZ100..CHI,GCC,GEN202305-202508

BLUE,TRIM0#

main55401-11040-J3iURZ100..LHD..EUR202305-202409

BLUE/OCEAN BLUE,TRIM8#

main55401-11050-C2iGWZ100,URZ100..ARL202305-202403

BLACK,TRIM2#,3#

main55401-11050-E2iGWZ100,URZ100..ARL202305-202403

OCHRE,TRIM4#

main55401-11050-J1iGWZ100..ARL202305-202508

BLUE,TRIM0#

main55401-11050-J3iURZ100..ARL202305-202409

BLUE/OCEAN BLUE,TRIM8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-11010-C1iURZ100..CP..(GCC,GEN)202305

BLACK,TRIM03,2#,3#

main55981-11010-C1iGWZ100,URZ100..LHD..EUR202305-202403

BLACK,TRIM2#,3#

main55981-11010-E1iGWZ100,URZ100..CHI,GCC,GEN202305-202403

OCHRE,TRIM4#

main55981-11010-J1iGWZ100..CHI;URZ100..CONV..GCC202305-202403

BLUE,TRIM0#

main55981-11010-J1iURZ100..LHD..EUR202305-202508

BLUE,TRIM0#,8#

main55981-11010-J1iURZ100..CP..(GCC,GEN)202305

BLUE,TRIM00,8#

main55981-11020-C1iGWZ100..ARL;URZ100..CONV..ARL202305

BLACK,TRIM03,2#,3#

main55981-11020-C1iURZ100..CP..ARL202305-202403

BLACK,TRIM2#,3#

main55981-11020-E1iGWZ100,URZ100..ARL202305-202403

OCHRE,TRIM4#

main55981-11020-J1iGWZ100,URZ100..RHD..EUR202305-202508

BLUE,TRIM0#,8#

main55981-11020-J1iURZ100..CP..ARL202305

BLUE,TRIM00,8#

main55981-11020-J1iURZ100..CP..ARL202305

BLUE,TRIM0#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-11010iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main73960-11020iGWZ100,URZ100..RHD..EUR202305-202403

8202

9010508406

main90105-08406

9010508460

main90105-08460

9010508473

main90105-08473

9011906951

main90119-06951

9011908C29

main90119-08C29

9017906274

main90179-06274

9167380616

main91673-80616

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

22 parts on this diagram · 8 diagrams in section
