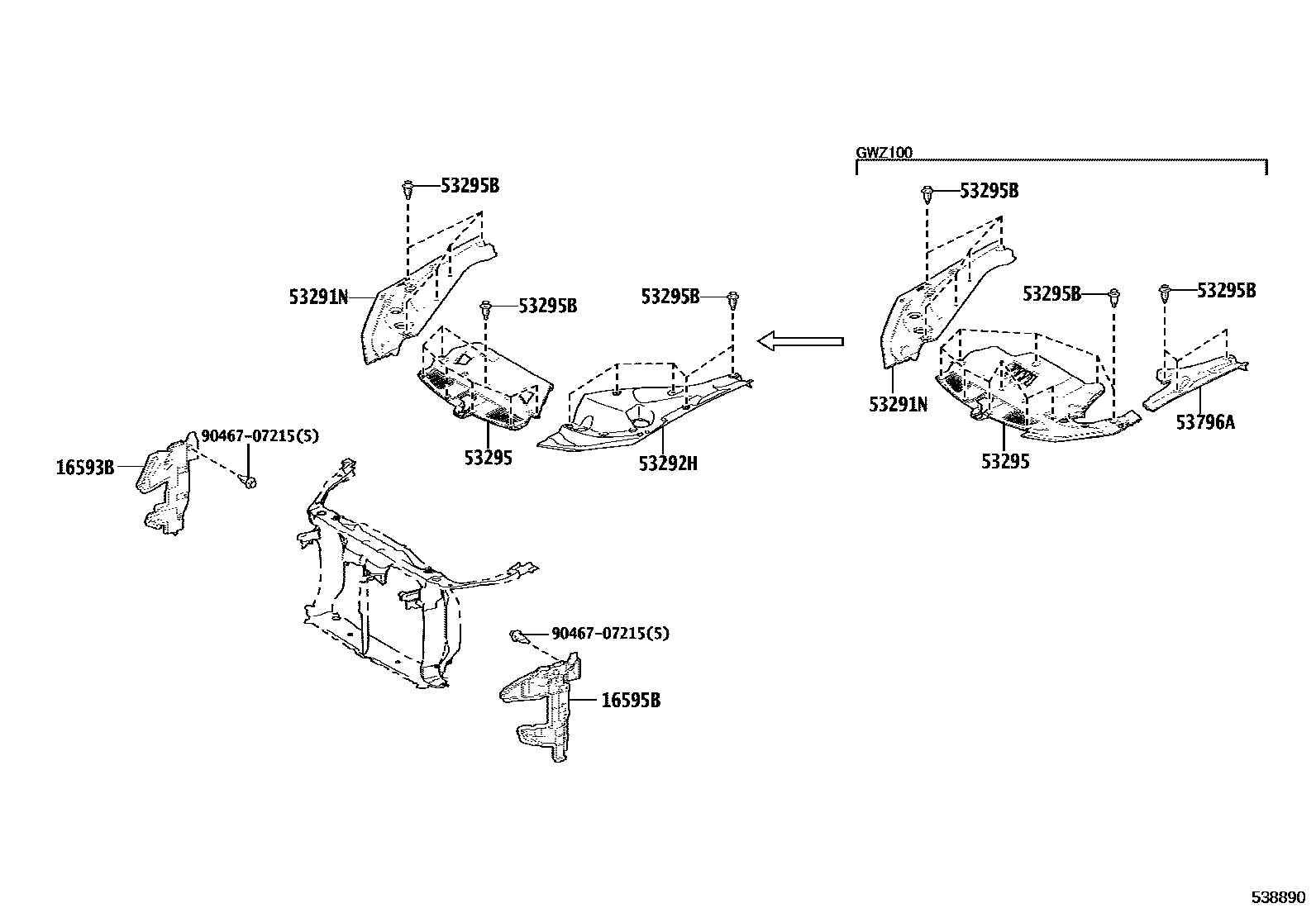

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL 0004 1DASH PANEL

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-31010i8GRFXS,2URGSE..GWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-31010i8GRFXS,2URGSE..GWZ100,URZ100..EUR202305-202403

53291NSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-11020iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

53292HSEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-11020iURZ100..EUR202305-202403

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-11010iURZ100..EUR202305-202403

main53295-11020iGWZ100..EUR202305-202403

53295BCLIP(FOR RADIATOR LOWER AIR DEFLECTOR)

main90467-07217iGWZ100..ARL,CHI,GCC,GEN202305-202403

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-11050iGWZ100..EUR202305-202403

9046707215

main90467-07215

8 parts on this diagram · 4 diagrams in section
