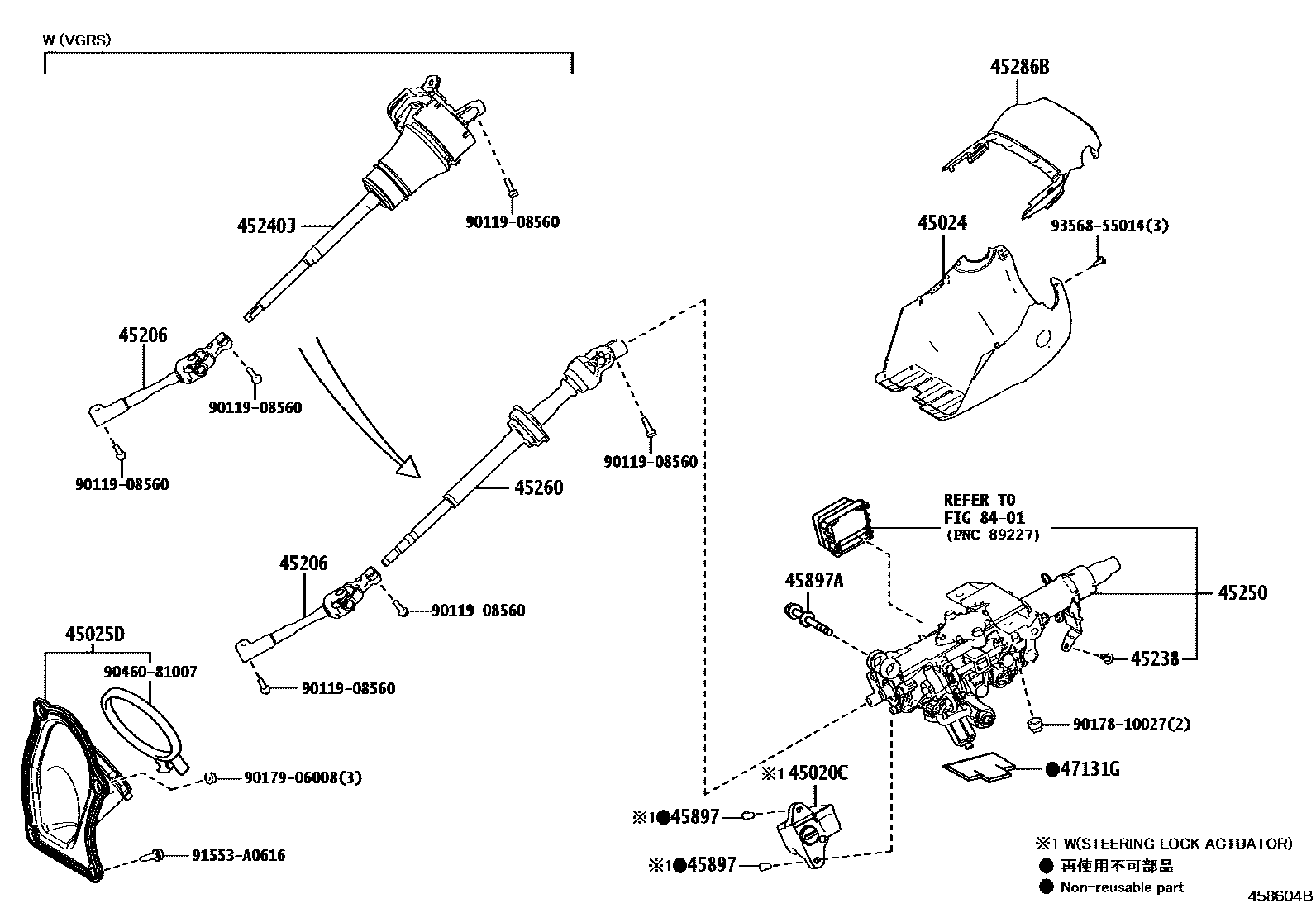

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33250iGWZ100..RHD..EUR202305-202310

INDIA SPEC

main45020-33250iGWZ100,URZ100..RHD..EUR202305-202310

IRELAND SPEC

main45020-33250iGWZ100,URZ100..RHD..EUR202305-202310

CYPRUS SPEC

main45020-33250iGWZ100,URZ100..RHD..EUR202305-202310

MALTA SPEC

main45020-33250iGWZ100,URZ100..RHD..EUR202305-202403

RUSSIA SPEC

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-11010-C1iURZ100..CP..(ARL,GCC,GEN)202305-202403

BLACK,TRIM2#,3#,4#

main45024-11010-C1iURZ100..CONV..(ARL,GEN)202305

BLACK,TRIM03,2#,3#,4#

main45024-11010-C1iURZ100..CONV..(ARL,GEN)202305

BLACK,TRIM04,2#,3#,4#

main45024-11010-J0iURZ100..CP..(ARL,GCC,GEN)202305-202403

BLUE,TRIM0#

main45024-11010-J0iGWZ100..LHD..EUR202305-202403

BLUE,TRIM0#,8#

main45024-11010-J0iURZ100..CP..(ARL,GCC,GEN)202305

BLUE,TRIM00,8#

main45024-11010-J0iURZ100..CP..(ARL,GCC,GEN)202305

BLUE,TRIM01,02,8#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-11010iGWZ100,URZ100..LHD..EUR202305-202403

main45025-11020iGWZ100,URZ100..ARL202305-202403

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-11011iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main45206-11021iGWZ100,URZ100..ARL202305-202403

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iGWZ100,URZ100..EUR202305-202403

45240JACTUATOR ASSY, STEERING

main45240-11011iGWZ100,URZ100..LHD..CP..EUR202305-202403

FOUR-WHEEL STEERING-WITH

main45240-11021iGWZ100,URZ100..RHD..CP..EUR202305-202403

FOUR-WHEEL STEERING-WITH

45250COLUMN ASSY, STEERING

main45250-46050iGWZ100,URZ100..RHD..EUR202305-202403

IRELAND SPEC

main45250-46050iGWZ100,URZ100..LHD..EUR202305-202403

CYPRUS SPEC

main45250-46050iGWZ100,URZ100..LHD..EUR202305-202403

INDIA SPEC

main45250-46050iGWZ100,URZ100..LHD..EUR202305-202403

MALTA SPEC

main45250-46050iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

main45250-48430iURZ100..LHD..CP..EUR202305-202403

RUSSIA SPEC

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-11031iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main45260-30271iGWZ100,URZ100..RHD..EUR202305-202403

45286BCOVER, STEERING COLUMN, UPR

main45286-11010-C1iGWZ100,URZ100..EUR202305-202403

BLACK,TRIM2#,3#,4#

main45286-11010-C1iURZ100..CP..(ARL,GCC,GEN)202305

BLACK,TRIM03,2#,3#,4#

main45286-11010-C1iURZ100..CP..(ARL,GCC,GEN)202305

BLACK,TRIM04,2#,3#,4#

main45286-11010-J0iGWZ100..CHI;URZ100..CONV..GCC202305

BLUE,TRIM00,8#

main45286-11010-J0iGWZ100..CHI;URZ100..CONV..GCC202305-202403

BLUE,TRIM0#

main45286-11010-J0iGWZ100..CHI;URZ100..CONV..GCC202305

BLUE,TRIM01,02,8#

main45286-11010-J0iGWZ100..CHI;URZ100..CONV..GCC202305-202403

BLUE,TRIM0#,8#

45897BOLT, STEERING LOCK SET

main45897-12020iGWZ100,URZ100..RHD..EUR202305-202310

CYPRUS SPEC

main45897-12020iGWZ100,URZ100..RHD..EUR202305-202310

IRELAND SPEC

main45897-12020iGWZ100,URZ100..RHD..EUR202305-202310

INDIA SPEC

main45897-12020iGWZ100,URZ100..RHD..EUR202305-202310

MALTA SPEC

main45897-12020iGWZ100,URZ100..RHD..EUR202305-202403

RUSSIA SPEC

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iGWZ100,URZ100..EUR202305-202403

47131GCUSHION

main47131-11030iGWZ100,URZ100..EUR202305-202403

8401

9011908560

main90119-08560

9017810027

main90178-10027

9017906008

main90179-06008

9046081007

main90460-81007

91553A0616

main91553-A0616

9356855014

main93568-55014

19 parts on this diagram · 2 diagrams in section
