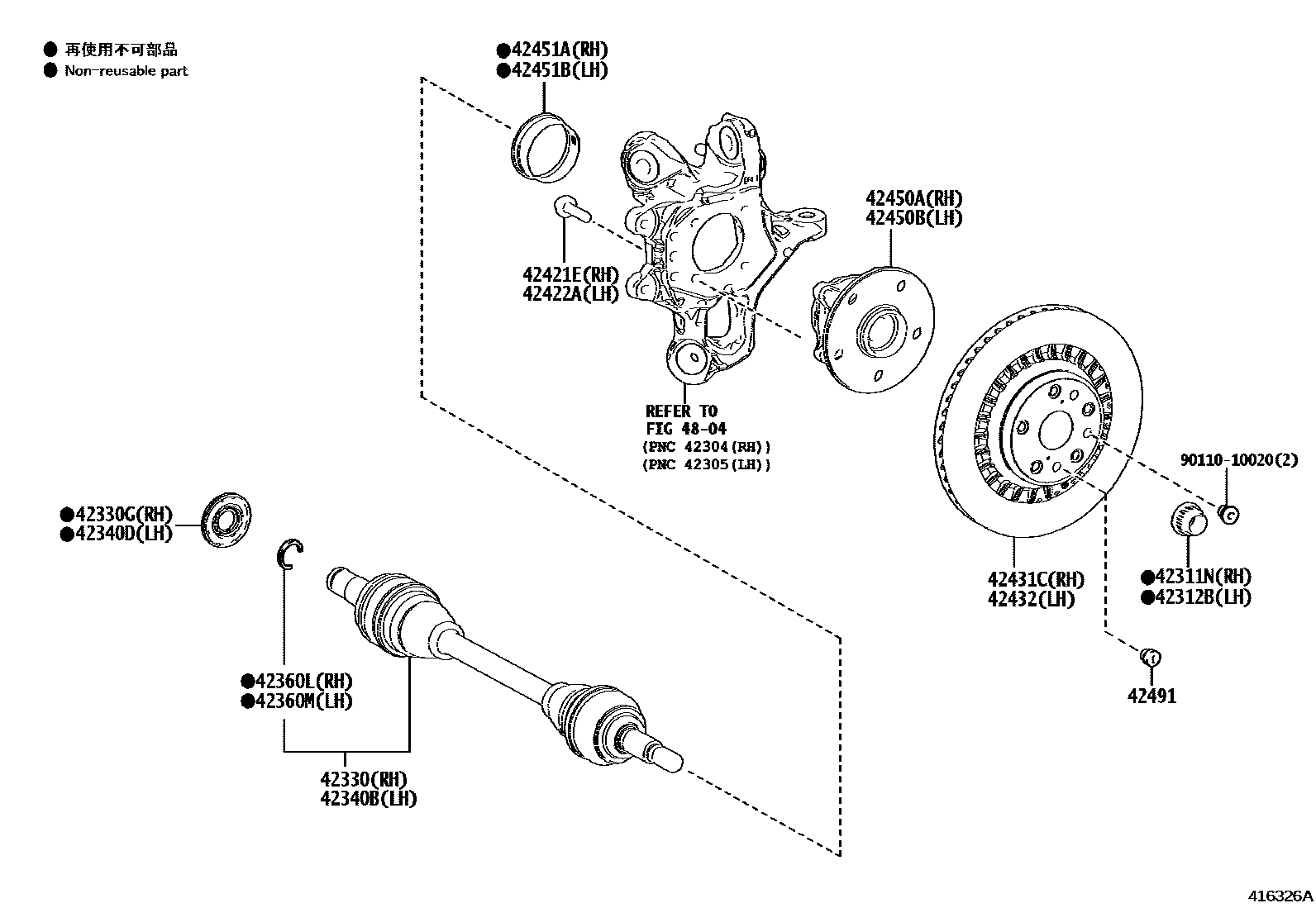

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGWZ100,URZ100..EUR¥260202305-202403

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iGWZ100,URZ100..EUR¥260202305-202403

42330SHAFT ASSY, REAR DRIVE, RH

main42330-11010iGWZ100,URZ100..EUR¥39,900202305-202403

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-47031iGWZ100,URZ100..EUR¥1,650202305-202403

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-11010iGWZ100,URZ100..EUR¥39,900202305-202403

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47032iGWZ100,URZ100..EUR¥1,650202305-202403

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-37010iGWZ100,URZ100..EUR¥90202305-202403

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-37010iGWZ100,URZ100..EUR¥90202305-202403

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12364iGWZ100,URZ100..EUR¥250202305-202403

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12364iGWZ100,URZ100..EUR¥250202305-202403

42431CDISC, REAR RH

main42431-11030iGWZ100,URZ100¥12,100202305-202401

sub42431-11031¥10,900

main42431-11031iGWZ100,URZ100..EUR¥10,900202402-202403

42432DISC, REAR LH

main42432-11020iGWZ100,URZ100¥12,100202305-202401

sub42432-11021¥10,900

main42432-11021iGWZ100,URZ100..EUR¥10,900202402-202403

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-11030iGWZ100,URZ100..EUR¥15,300202305-202403

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-11030iGWZ100,URZ100..EUR¥15,300202305-202403

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-50030iGWZ100,URZ100..EUR¥790202305-202403

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-50030iGWZ100,URZ100..EUR¥790202305-202403

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iGWZ100,URZ100..EUR¥60202305-202403

4804

9011010020

main90110-10020¥60

19 parts on this diagram · 1 diagram in section
