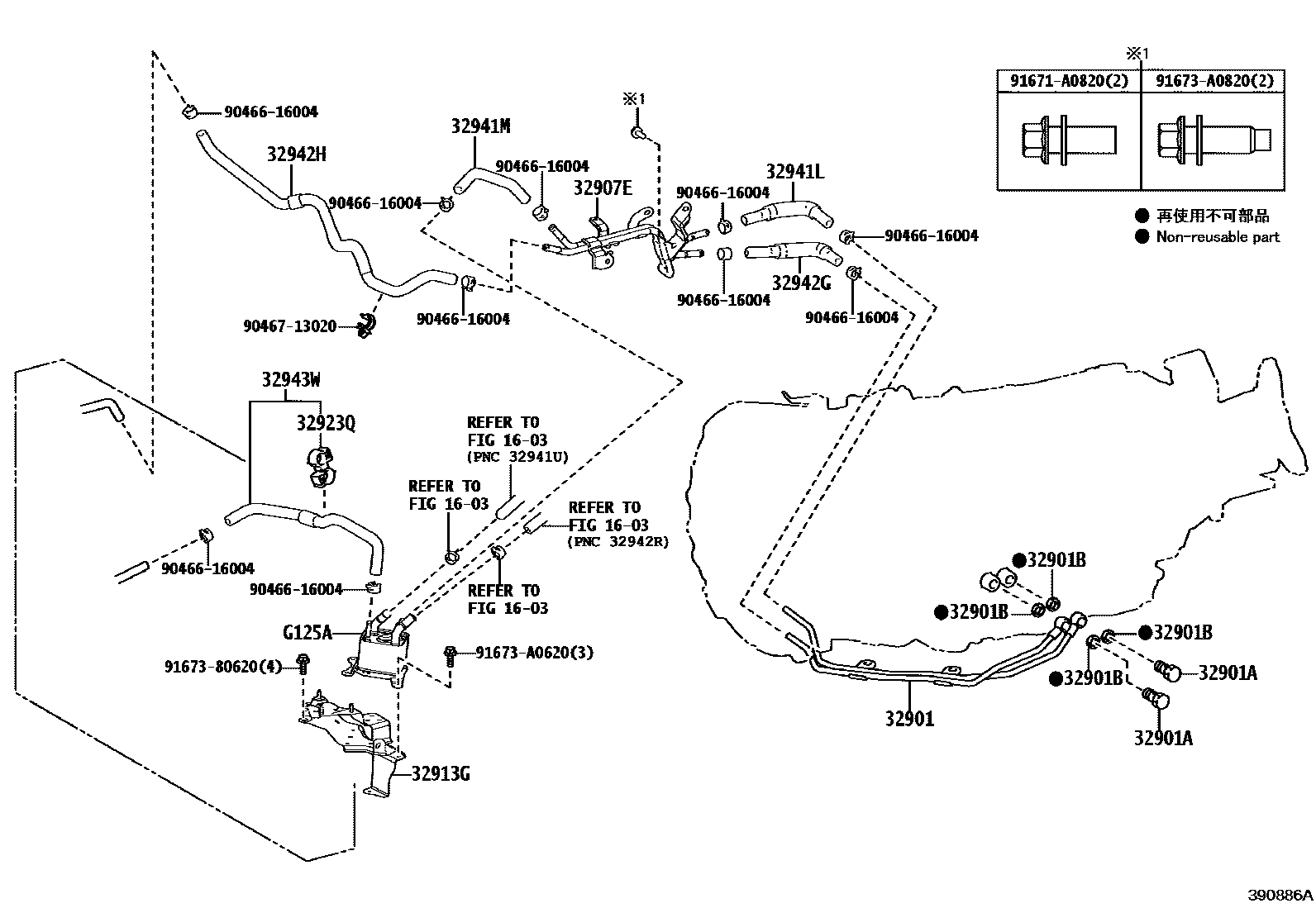

OIL COOLER & TUBE (HEV OR BEV OR FCEV)
1603
32901UNION SUB-ASSY, OIL COOLER
32901ABOLT, UNION(FOR OIL COOLER)
32901BGASKET(FOR OIL COOLER UNION)
32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE
32913GBRACKET, TRANSMISSION OIL COOLER
32923QCLAMP, OIL COOLER TUBE
32941LHOSE, OIL COOLER INLET, NO.1
32941MHOSE, OIL COOLER INLET, NO.2
32942GHOSE, OIL COOLER OUTLET, NO.1
32942HHOSE, OIL COOLER OUTLET, NO.2
32943WHOSE, TRANSMISSION OIL COOLER
G125ACOOLER, MOTOR COOLING
9046616004
main90466-16004
9046713020
main90467-13020
91671A0820
main91671-A0820
9167380620
main91673-80620
91673A0620
main91673-A0620
91673A0820
main91673-A0820
19 parts on this diagram · 1 diagram in section
