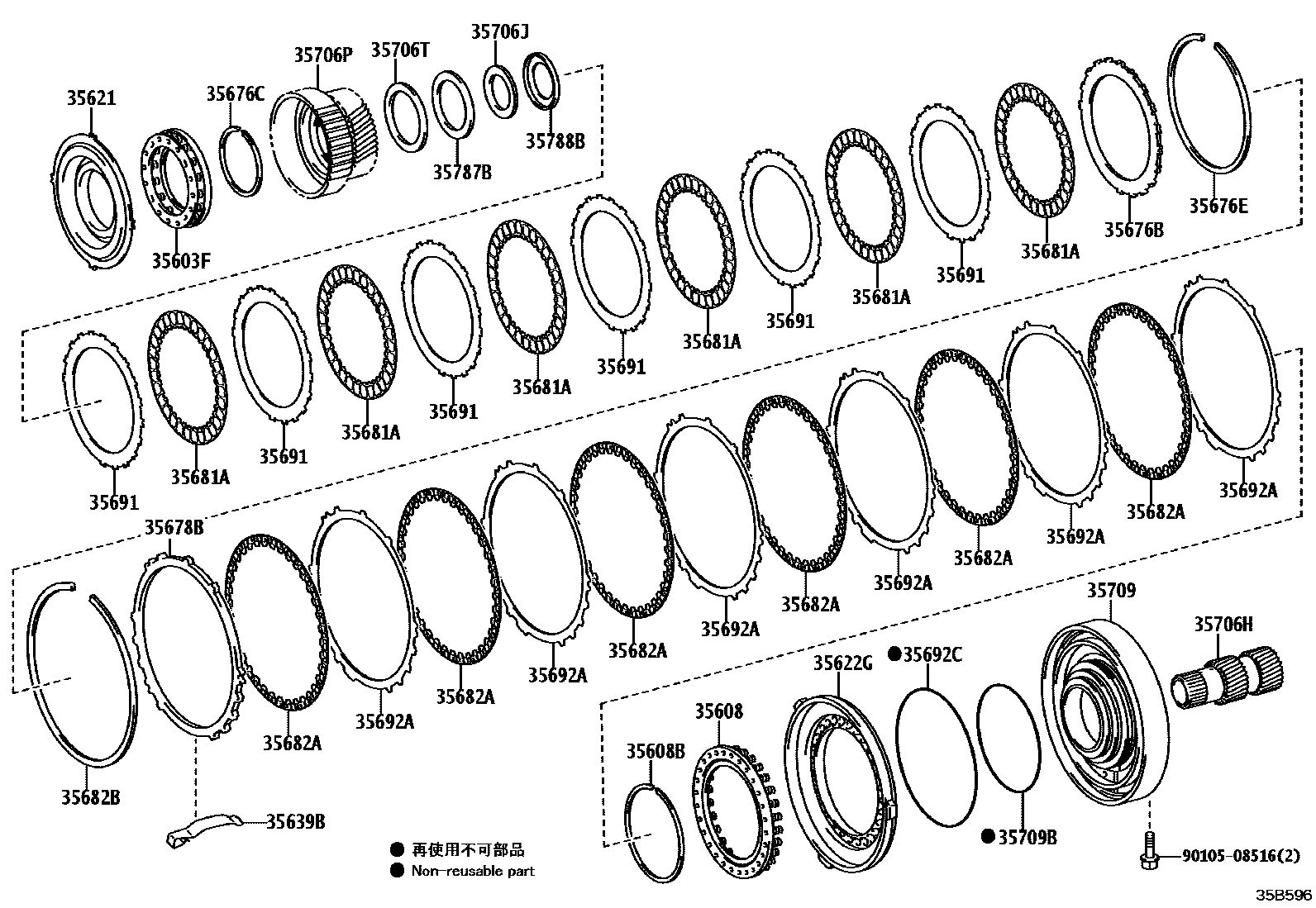

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35603FSPRING SUB-ASSY, 2ND BRAKE RETURN W/RETAINER
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608BRING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)
35621PISTON, BRAKE, NO.1
35622GPISTON, BRAKE, NO.2
35639BSPRING, BRAKE PLATE STOPPER
35676BFLANGE, BRAKE, NO.1
T=3.2,MARK 0
T=3.3,MARK 1
T=3.4,MARK 2
T=3.5,MARK 3
T=3.6,MARK 4
T=3.7,MARK 5
T=3.8,MARK 6
35676CRING, HOLE SNAP (FOR BRAKE FLANGE NO.1)
35676ERING, HOLE SNAP (FOR 2ND BRAKE)
35678BFLANGE, BRAKE, NO.2
T=6.0,MARK 0
T=6.1,MARK 1
T=6.2,MARK 2
T=6.3,MARK 3
T=6.4,MARK 4
T=6.5,MARK 5
T=6.6,MARK 6
T=6.7,MARK 7
T=6.8,MARK 8
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
35682BRING, HOLE SNAP(FOR DISC BRAKE NO.2)
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35692CRING, O (FOR BRAKE PLATE, NO.2)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35706PGEAR SUB-ASSY, FRONT PLANETARY SUN
35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)
35709SUPPORT SUB-ASSY, CENTER
35709BRING, O (FOR CENTER SUPPORT)
35787BRACE, THRUST BEARING, NO.2
35788BRACE, THRUST BEARING, NO.3
9010508516
main90105-08516
25 parts on this diagram · 1 diagram in section
