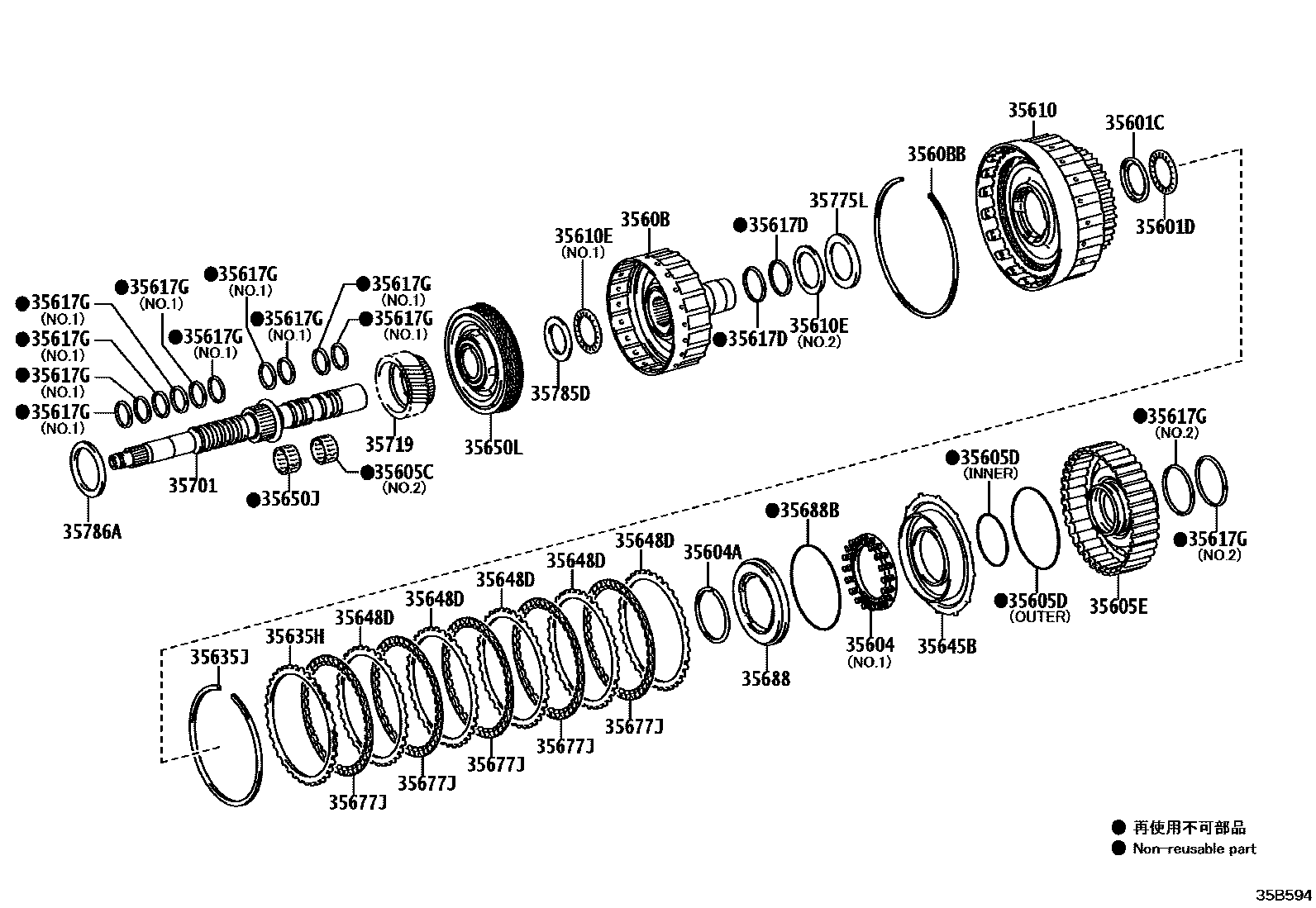

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601CRACE, THRUST BEARING (FOR FRONT CLUTCH DRUM)
35601DBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM)
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35604ARING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON)
35605CBEARING, NEEDLE ROLLER
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
35605DRING, O(FOR DIRECT CLUTCH DRUM)
INNER
OUTER
35605EDRUM SUB-ASSY, C-3
3560BDRUM SUB-ASSY, C-2
3560BBRING, HOLE SNAP(FOR C-2 DRUM)
35610CLUTCH ASSY, FRONT MULTIPLE DISC
35610EBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DISC)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35617DRING, CLUTCH DRUM OIL SEAL
35617GRING, CLUTCH DRUM OIL SEAL
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
NO.1:REFER ILLUST.
NO.4:REFER ILLUST.
35635FLANGE, FORWARD CLUTCH
T=3.9
T=4.0
T=4.1
T=4.2
T=4.3
T=4.4
T=4.5
T=4.6
T=4.7
35635HFLANGE, CLUTCH
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=3.7
T=3.8
T=3.9
35635JRING, HOLE SNAP(FOR C-3 CLUTCH FLANGE)
35645BPISTON, C-3 CLUTCH
35648DPLATE, CLUTCH, NO.3
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
35650LCLUTCH ASSY, C-2
35677JDISC, CLUTCH, NO.3
35688BALANCER, CLUTCH, NO.3
35688BRING, O (FOR CLUTCH BALANCER NO.3)
35701SHAFT SUB-ASSY, INPUT
35719GEAR, PLANETARY SUN
35775LRACE, THRUST BEARING, NO.5
35785DRACE, THRUST BEARING, NO.4
35786ARACE, THRUST BEARING, NO.1
28 parts on this diagram · 2 diagrams in section
