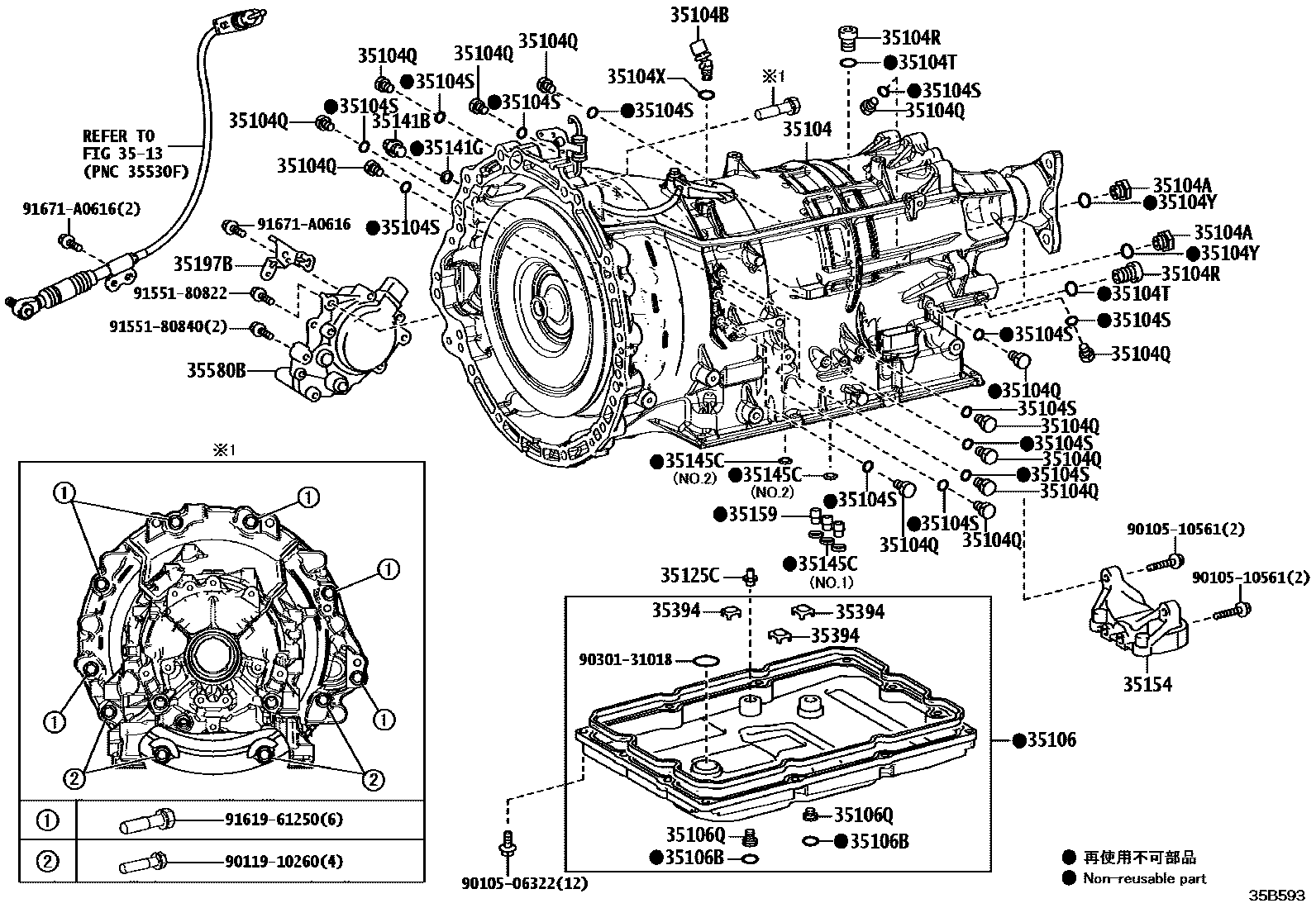

TRANSMISSION CASE & OIL PAN (ATM)
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104APLUG, AUTOMATIC TRANSMISSION CASE
35104BPLUG, BREATHER, NO.1 (ATM)
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104XRING, O (FOR BREATHER PLUG)
35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106BGASKET, DRAIN PLUG (ATM)
35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
3513
35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35145CGASKET, TRANSAXLE CASE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35154ADAPTER, TRANSMISSION CASE
35159GASKET, BRAKE DRUM
35197BBRACKET, HEAT INSULATOR, NO.2
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35580BACTUATOR ASSY, SHIFT CONTROL
9010506322
9010510561
9011910260
9030131018
9155180822
9155180840
9161961250
91671A0616
30 parts on this diagram · 1 diagram in section
