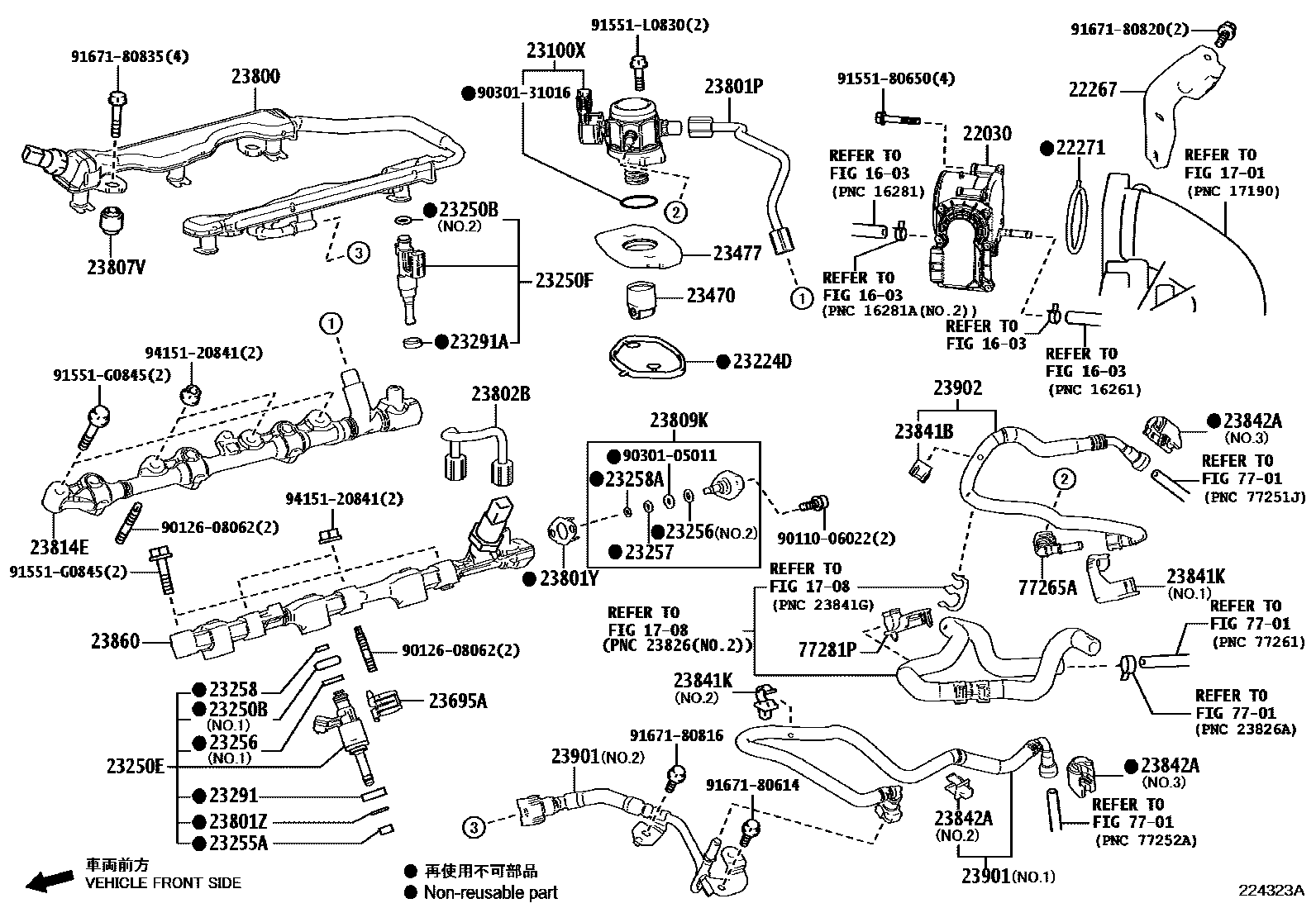

FUEL INJECTION SYSTEM
1603
1701
1708
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22267BRACKET, THROTTLE BODY
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23224GASKET, FUEL PUMP SPACER, RH
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
NO.1
(J),NO.2
(L),NO.2
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
NO.1
NO.2
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23258ARING, FUEL PIPE, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23800PIPE ASSY, FUEL DELIVERY W/SENSOR
23801PPIPE SUB-ASSY, FUEL, NO.1
23801YGASKET
23801ZRING, SNAP(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23809KPLUG SUB-ASSY, FUEL PIPE
23814EPIPE, FUEL DELIVERY, RH
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
NO.1
NO.2
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
NO.2
NO.3
23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH
23901TUBE SUB-ASSY, FUEL
NO.2
NO.1
23902TUBE SUB-ASSY, FUEL
7701
77265ACONNECTOR, FUEL MAIN TUBE
77281PCLAMP, FUEL HOSE
9011006022
main90110-06022
9012608062
main90126-08062
9030105011
main90301-05011
9030131016
main90301-31016
9155180650
main91551-80650
91551G0845
main91551-G0845
91551L0830
main91551-L0830
9167180614
main91671-80614
9167180816
main91671-80816
9167180820
main91671-80820
9167180835
main91671-80835
9415120841
main94151-20841
52 parts on this diagram · 2 diagrams in section
