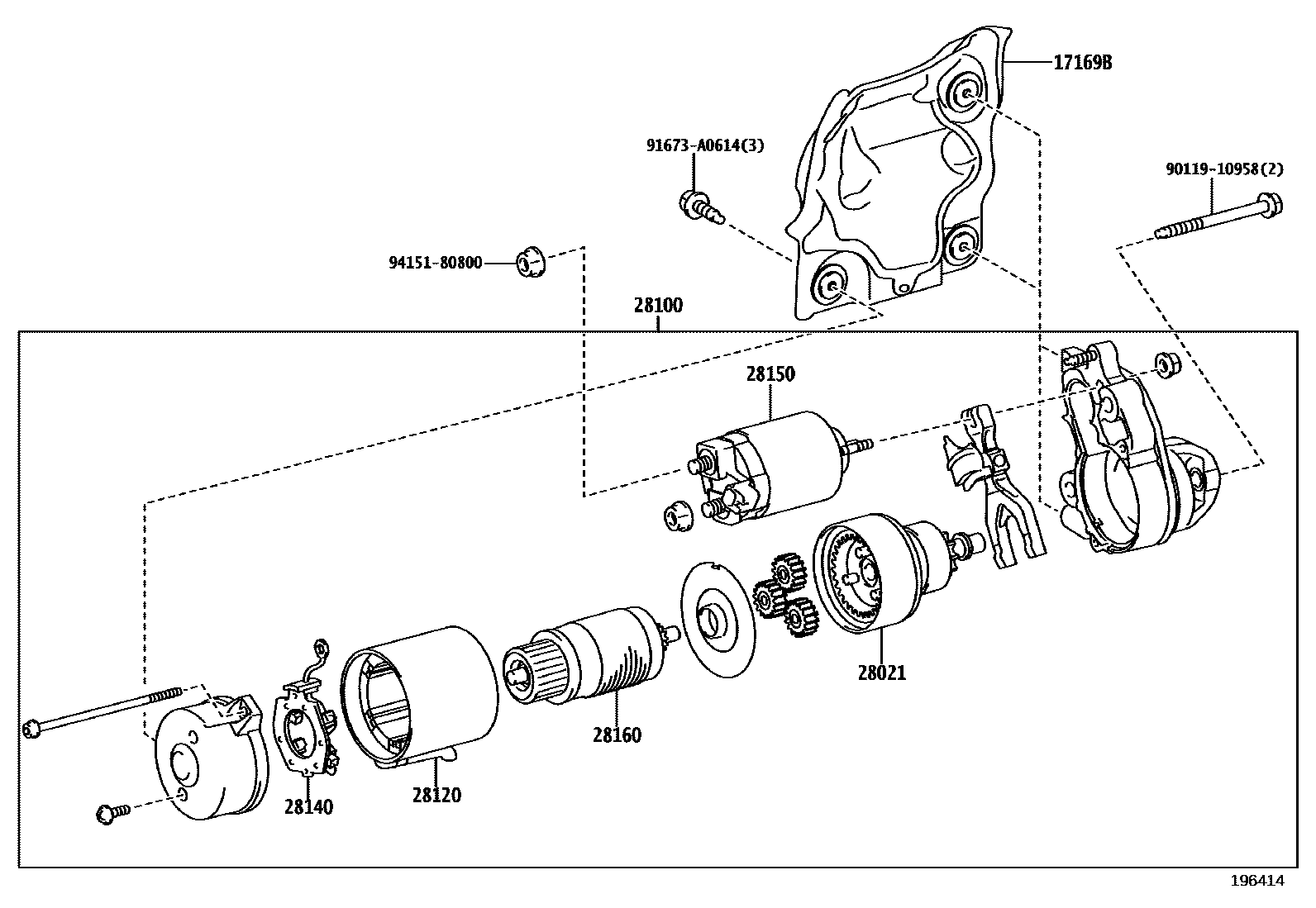

STARTER

17169BINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-38030i2URGSE..URZ100..EUR202305-202403

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-75210i2URGSE..URZ100..EUR202305-202403

28100STARTER ASSY

main28100-38091i2URGSE..URZ100..EUR202305-202403

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-38090i2URGSE..URZ100..EUR202305-202403

28140HOLDER ASSY, STARTER BRUSH

main28140-38070i2URGSE..URZ100..EUR202305-202403

28150SWITCH ASSY, MAGNET STARTER

main28150-38061i2URGSE..URZ100..EUR202305-202403

28160ARMATURE ASSY, STARTER

main28160-36110i2URGSE..URZ100..EUR202305-202403

9011910958

main90119-10958

91673A0614

main91673-A0614

9415180800

main94151-80800

10 parts on this diagram · 1 diagram in section
