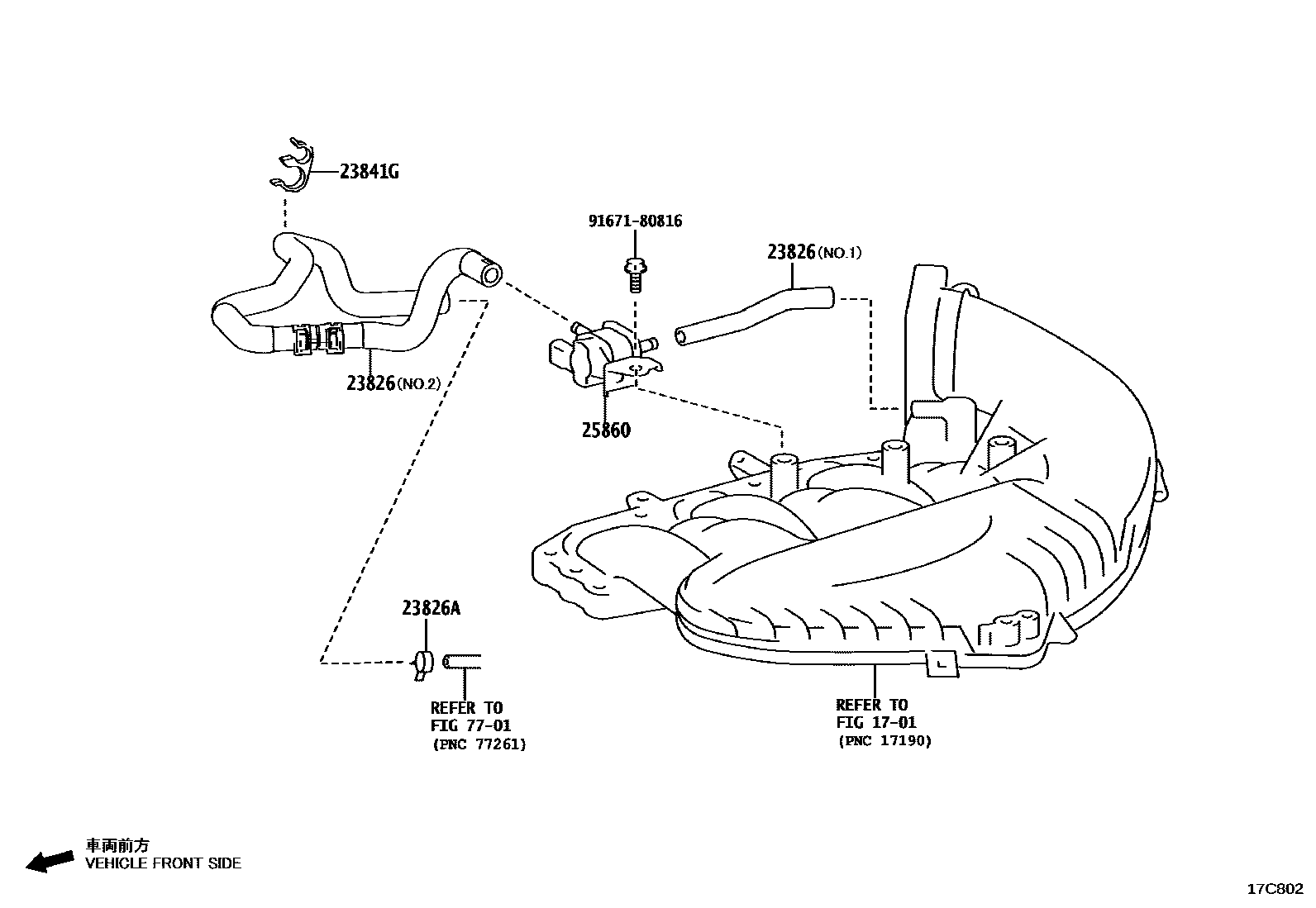

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1SINGAPORE SPEC

1701

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31320i8GRFXS..GWZ100..ARL,GCC,GEN202305-202403

NO.1

main23826-31330i8GRFXS..GWZ100..CHI202305

NO.1

main23826-31360i8GRFXS..GWZ100..CHI202305

NO.2

main23826-31370i8GRFXS..GWZ100..ARL,GCC,GEN202305-202403

NO.2

main23826-38040i2URGSE..URZ100..EUR202305-202403

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96133-41301i2URGSE..URZ100..EUR202305-202403

main96136-41901i8GRFXS..GWZ100..EUR202305-202403

23841GCLAMP, FUEL HOSE

main23841-31180i8GRFXS..GWZ100..EUR202305-202403

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31090i8GRFXS..GWZ100..CHI202305

main25860-31110i8GRFXS..GWZ100..ARL,GCC,GEN202305-202403

main25860-38030i2URGSE..URZ100..ARL,GCC,GEN202305-202403

7701

9167180816

main91671-80816

7 parts on this diagram · 5 diagrams in section
