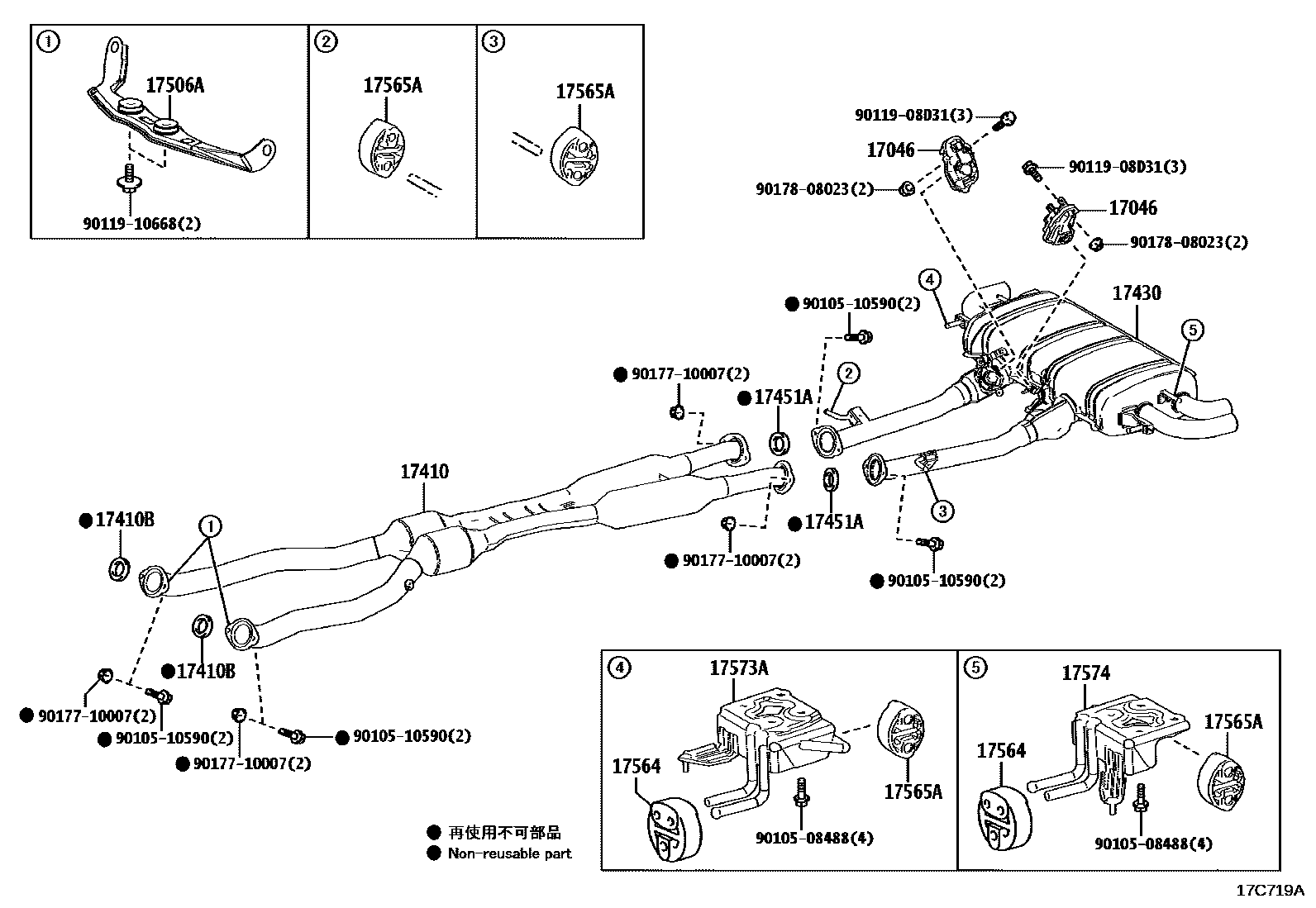

EXHAUST PIPE
17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17410PIPE ASSY, EXHAUST, FRONT
TYPE A:REFER ILLUST.
ARGENTINA SPEC,TYPE A:REFER ILLUST.
*114=TOYOTA/PB1/Y,TYPE B:REFER ILLUST.
*114=TOYOTA/PA6/Y,PHILIPPINE SPEC
*114=TOYOTA/PA6/Y
*114=TOYOTA/PA6/Y,ARGENTINA SPEC
*114=TOYOTA/PB1/Y
*114=TOYOTA/PB1/Y,SINGAPORE SPEC
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17451AGASKET, EXHAUST PIPE, NO.2
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17564SUPPORT,EXHAUST PIPE, NO.4
17565ASUPPORT, EXHAUST PIPE, NO.4
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
9010508488
main90105-08488
9010510590
main90105-10590
9011908D31
main90119-08D31
9011910668
main90119-10668
9017710007
main90177-10007
9017808023
main90178-08023
16 parts on this diagram · 4 diagrams in section
