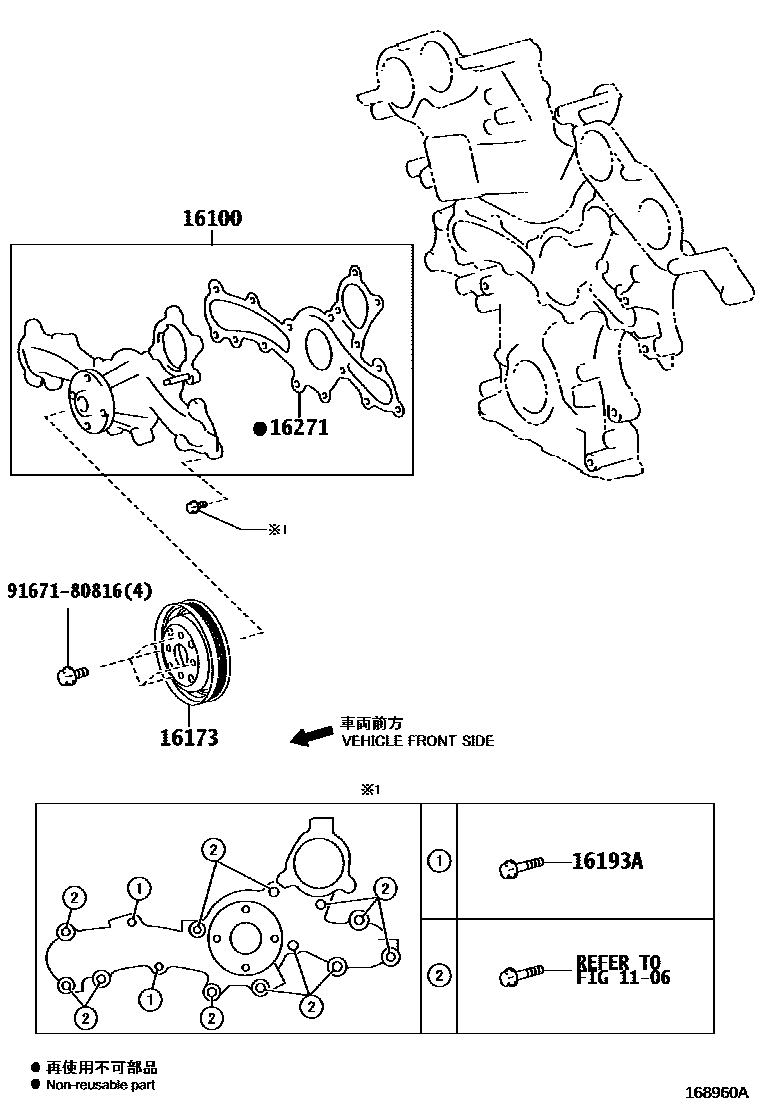

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39506i2URGSE..URZ100..EUR202305-202403

main16100-39616i8GRFXS..GWZ100..EUR202305-202403

16173PULLEY, WATER PUMP

main16173-31042i8GRFXS..GWZ100..EUR202305-202403

main16173-38041i2URGSE..URZ100..ARL,GCC,GEN202305-202403

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i8GRFXS..GWZ100..ARL,CHI,GCC,GEN202305-202403

16271GASKET, WATER PUMP

main16271-31050i8GRFXS..GWZ100..EUR202305-202403

main16271-38010i2URGSE..URZ100..EUR202305-202403

9167180816

main91671-80816

6 parts on this diagram · 2 diagrams in section
