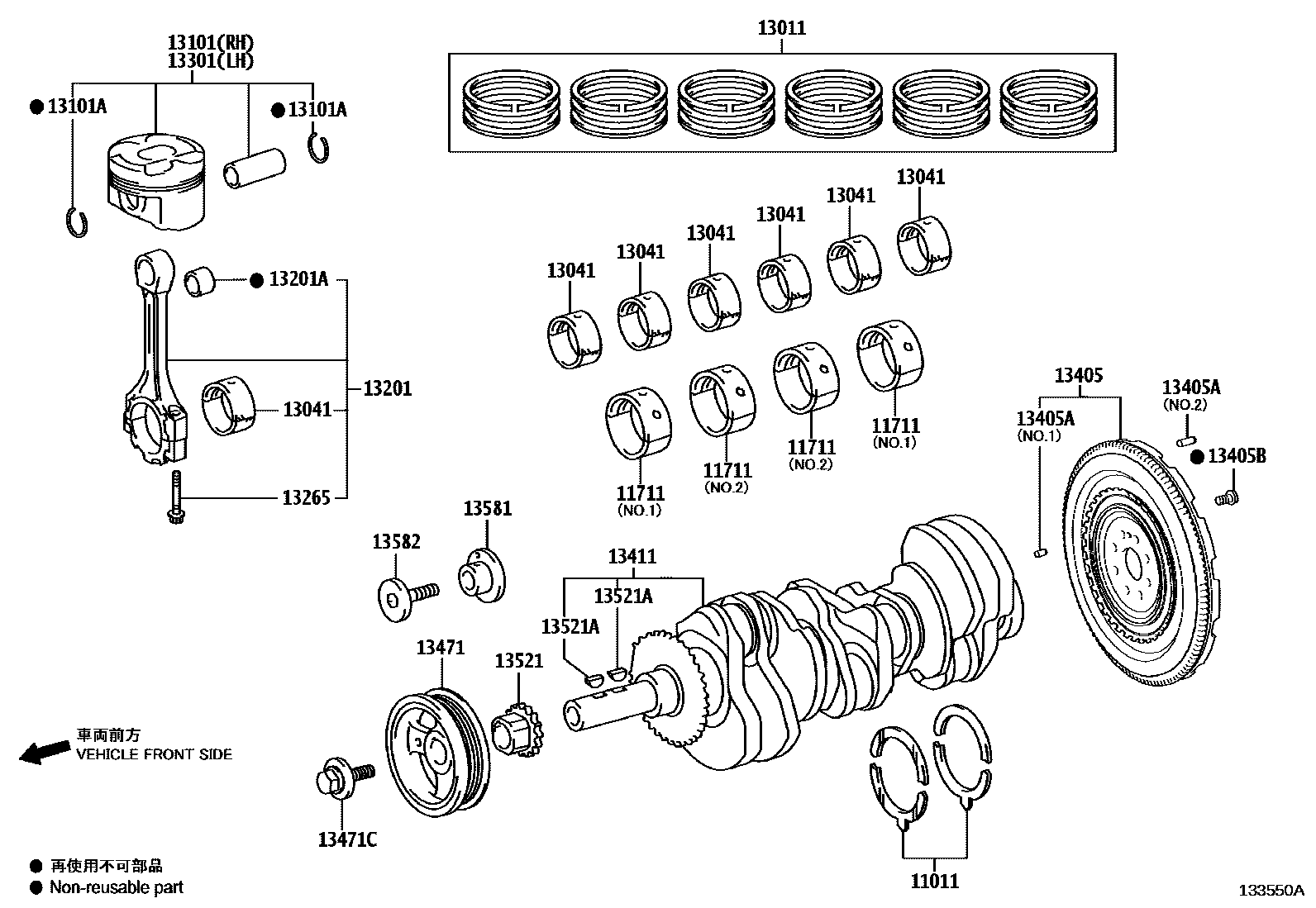

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11711BEARING, CRANKSHAFT
MARK UPPER 1 LOWER 1,NO.2,REFER R/M
sub11071-31060
MARK UPPER 1 LOWER 2,NO.2,REFER R/M
sub11071-31060
MARK UPPER 2 LOWER 2,NO.2,REFER R/M
sub11071-31060
MARK UPPER 2 LOWER 3,NO.2,REFER R/M
sub11071-31060
MARK UPPER 3 LOWER 3,NO.2,REFER R/M
sub11071-31060
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
sub11071-31060
MARK UPPER 4 LOWER 4,NO.2,REFER R/M
sub11071-31060
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
sub11071-31060
MARK UPPER 5 LOWER 5,NO.2,REFER R/M
sub11071-31060
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 8,NO.2,REFER R/M
MARK UPPER 8 LOWER 8,NO.2,REFER R/M
IE 24MY,MARK UPPER 4 LOWER 4,NO.2,REFER R/M
IE 24MY,MARK UPPER 4 LOWER 5,NO.2,REFER R/M
IE 24MY,MARK UPPER 5 LOWER 5,NO.2,REFER R/M
IE 24MY,MARK UPPER 5 LOWER 6,NO.2,REFER R/M
IE 24MY,MARK UPPER 6 LOWER 6,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.1,REFER R/M
MARK UPPER 5 LOWER 5,NO.1,REFER R/M
MARK UPPER 5 LOWER 6,NO.1,REFER R/M
MARK UPPER 6 LOWER 6,NO.1,REFER R/M
MARK UPPER 6 LOWER 7,NO.1,REFER R/M
MARK UPPER 7 LOWER 7,NO.1,REFER R/M
MARK UPPER 7 LOWER 8,NO.1,REFER R/M
MARK UPPER 8 LOWER 8,NO.1,REFER R/M
MARK UPPER 8 LOWER 9,NO.1,REFER R/M
MARK UPPER 9 LOWER 9,NO.1,REFER R/M
IE 24MY,MARK UPPER 5 LOWER 6,NO.1,REFER R/M
IE 24MY,MARK UPPER 6 LOWER 6,NO.1,REFER R/M
IE 24MY,MARK UPPER 6 LOWER 7,NO.1,REFER R/M
IE 24MY,MARK UPPER 7 LOWER 7,NO.1,REFER R/M
IE 24MY,MARK UPPER 7 LOWER 8,NO.1,REFER R/M
MARK UPPER 1 LOWER 1,NO.1,REFER R/M
sub11701-31100
MARK UPPER 1 LOWER 2,NO.1,REFER R/M
sub11701-31100
MARK UPPER 2 LOWER 2,NO.1,REFER R/M
sub11701-31100
MARK UPPER 2 LOWER 3,NO.1,REFER R/M
sub11701-31100
MARK UPPER 3 LOWER 3,NO.1,REFER R/M
sub11701-31100
MARK UPPER 3 LOWER 4,NO.1,REFER R/M
sub11701-31100
MARK UPPER 4 LOWER 4,NO.1,REFER R/M
sub11701-31100
MARK UPPER 4 LOWER 5,NO.1,REFER R/M
sub11701-31100
MARK UPPER 5 LOWER 5,NO.1,REFER R/M
sub11701-31100
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 4
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK A
STD,MARK B
STD,MARK C
STD,TYPE B:REFER ILLUST.
13101ARING, HOLE SNAP(FOR PISTON PIN)
TYPE B:REFER ILLUST.
13201ROD SUB-ASSY, CONNECTING
TYPE B:REFER ILLUST.
MARK A
MARK B
MARK C
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD,MARK A
STD,MARK B
STD,MARK C
STD,TYPE B:REFER ILLUST.
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=10,OD=6,NO.1
L=23,OD=8,NO.2
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
*714
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
20 parts on this diagram · 3 diagrams in section
